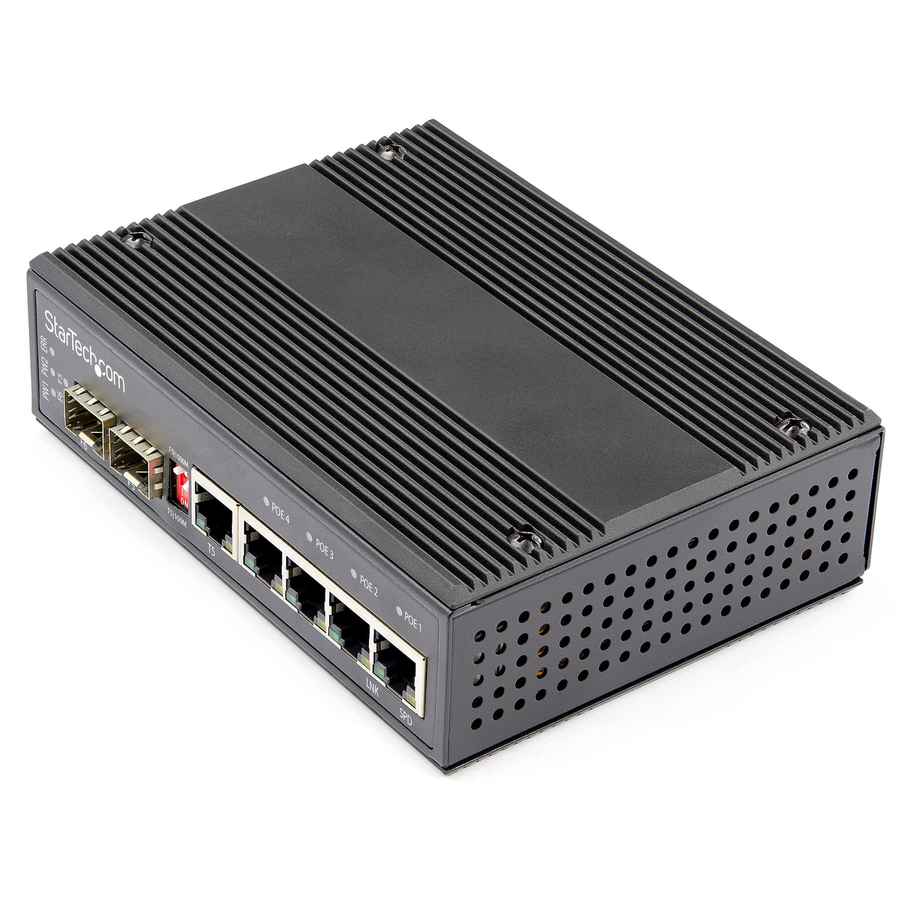

Startechcom 5 Port Industrial Ethernet Switch – Din Rail Mountable
Login to View Prices
StarTech.com 5 Port Industrial Ethernet Switch – DIN Rail Mountable – Expand your network connectivity with this rugged unmanaged network switch – Fast 10/100Mbps Switch – DIN rail mountable w/ built-in bracket – IP30-rated – Wide range 12-48V DC terminal block – Energy-Efficient Ethernet – Wider operating temperature
Additional information
| Brand | StarTech.com |
|---|---|
| Product Type | Ethernet Switch |
| Manageable | No |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| Token Ring Port | No |
| LRE Port | No |
| Ethernet Technology | Fast Ethernet |
| USB | No |
| Number Of Network (RJ 45) Por | 5 |
| Network (RJ 45) | Yes |
| Modular | No |
| Management Port | No |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| Bypass | No |
| Total Number Of Network Ports | 5 |
| PoE (RJ 45) Port | No |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| TAA Compliant | Yes |
| Product Color | Black |
| Product Material | Plastic |
| Country Of Origin | Taiwan |
| Height | 4.3" |
| Width | 2001-01-01T06:00:00.000Z |
| Certifications & Standards | <ul><li>CE</li><li>FCC</li></ul><p><b>Industry Sandards:</b></p><ul><li>IEEE 802.3</li><li>IEEE 802.3u</li><li>IEEE 802.3az</li><li>IEEE 802.1P</li></ul><b>Regulatory Approvals:</b><br><ul><li>EN61000-6-2</li><li>EN61000-6-4</li><li>EN61000-4-3 (Radiated RFI Standards)</li><li>EN61000-4-4 (Burst Standards)</li><li>EN61000-4-6 (Induced RFI Standards)</li><li>EN61000-4-8 (Magnetic Field Standards)</li><li>IEC60068-2-6 Fc (Vibration)</li><li>IEC60068-2-27 Ea (Shock)</li></ul> |
| Brand Name | StarTech.com |
| Form Factor | Rail-mountable |
| Length | 2.8" |
| MTBF | 1179133 Hour |
| Manufacturer | StarTech.com |
| Product Name | 5-Port Industrial Ethernet Switch – DIN Rail Mountable |
| Network Technology | 10/100Base-TX |
| Power Consumption | 2.12 W |
| Manufacturer Part Number | IES5102 |
| Manufacturer Website Address | |
| Marketing Information | This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.<br /><br /> Conquer the tough demands of industrial environments<br /><br /> Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.<br /><br /> Get up and running in no time<br /><br /> This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.<br /><br /> Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.<br /><br /> Reduce your energy costs with Energy-Efficient Ethernet<br /><br /> With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.<br /><br /> The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support. <p><a id="gfk-spex-minisite" rel="nofollow" href="javascript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_us/1029752756.html', '_blank', 'height=800, width=780, resizable=yes, scrollbars=yes, toolbar=no, menubar=no, location=no, directories=no, status=no'), return false, ">More from the Manufacturer</a></p> |
| Packaged Quantity | 1 |
| Package Contents | <ul> <li>5-Port Industrial Ethernet Switch – DIN Rail Mountable</li> <li>1 x Terminal Block </li> <li>1 x Instruction Manual CD</li> </ul> |
| Limited Warranty | 2 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 5.30 oz |
