Vertiv Avocent LV5500 High-Performance KVM Extender | Transmitter
Login to View Prices

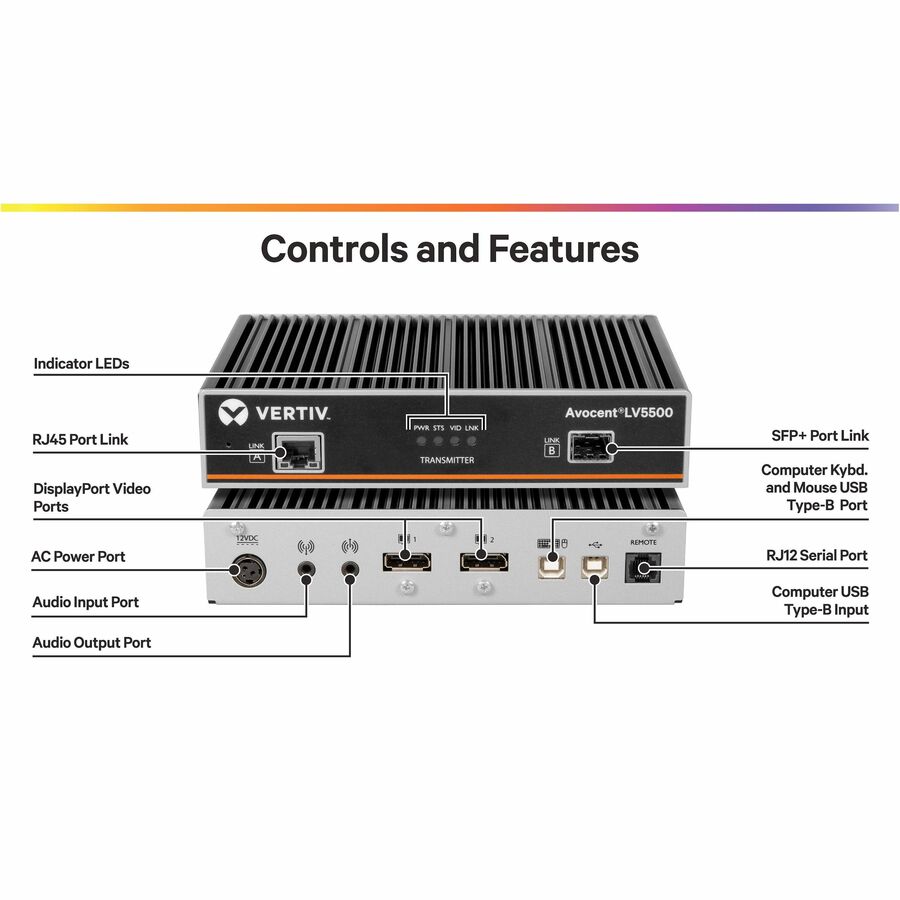

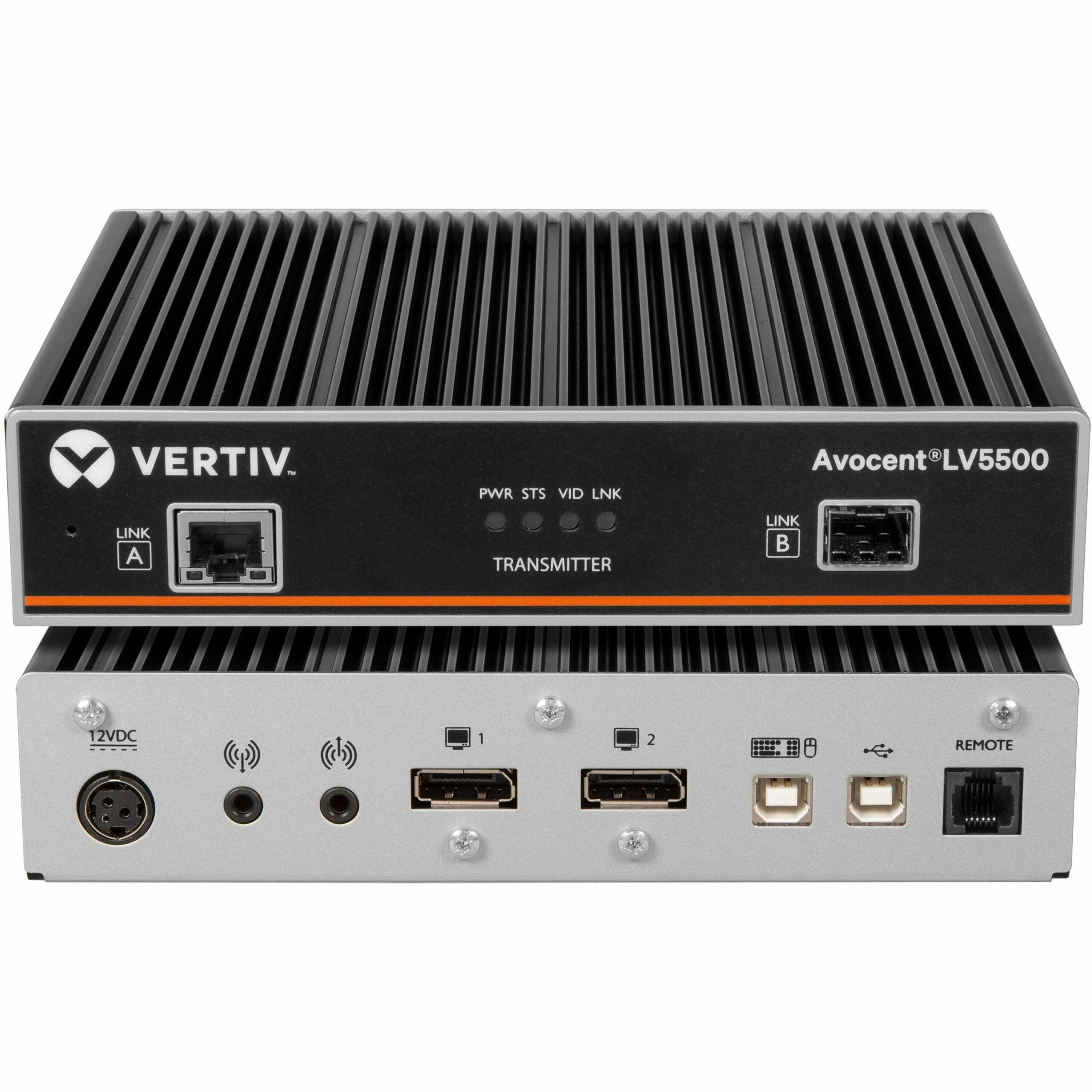

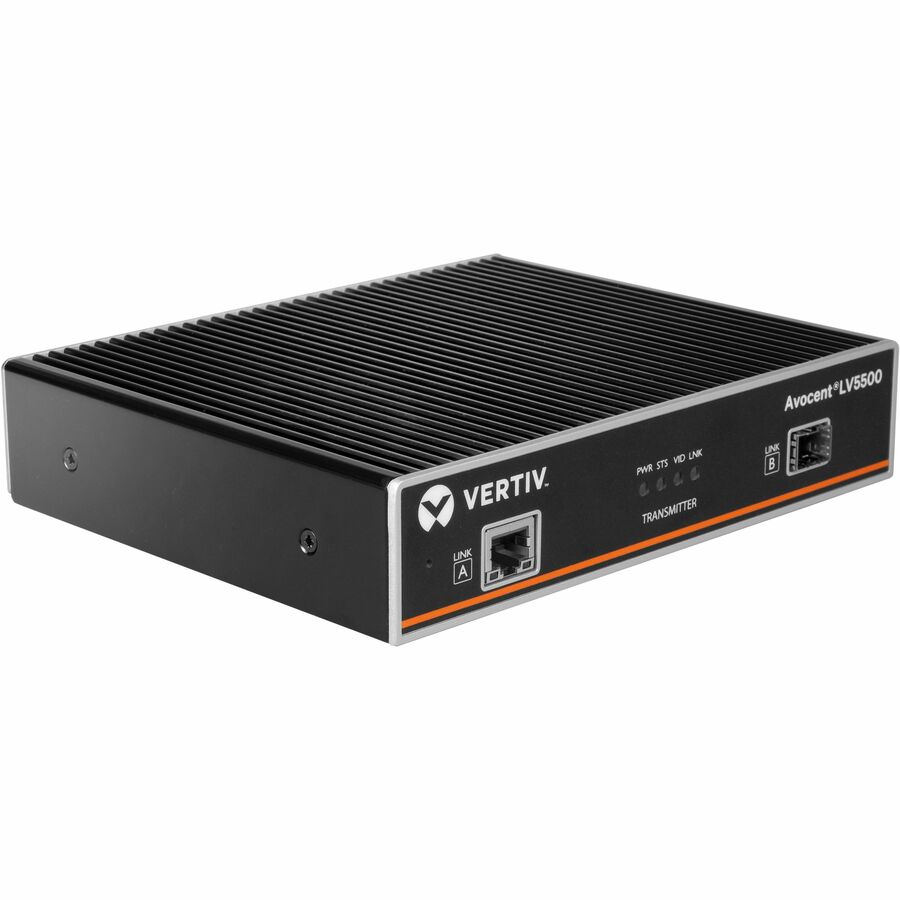

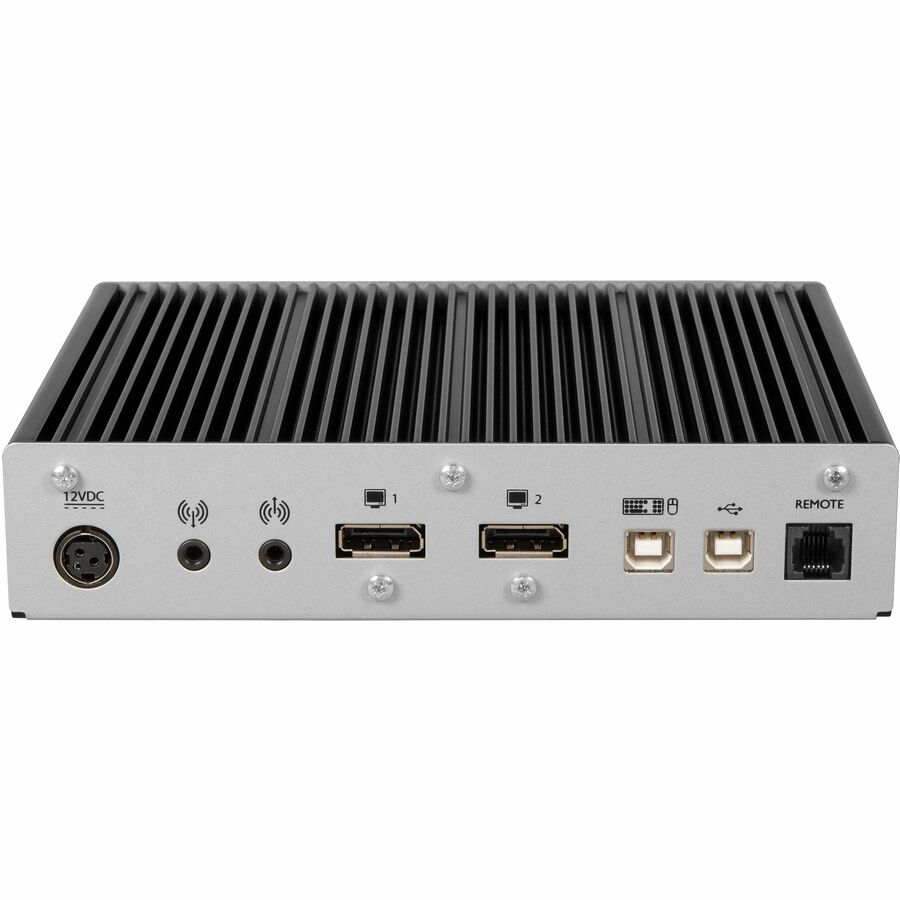

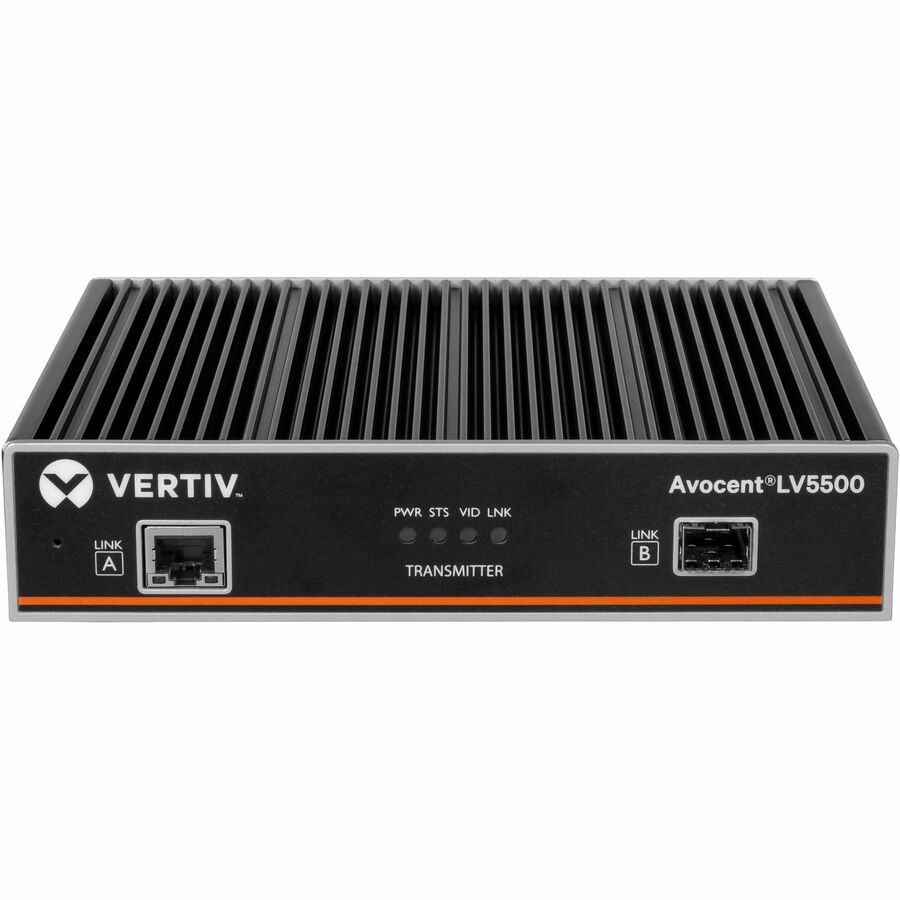

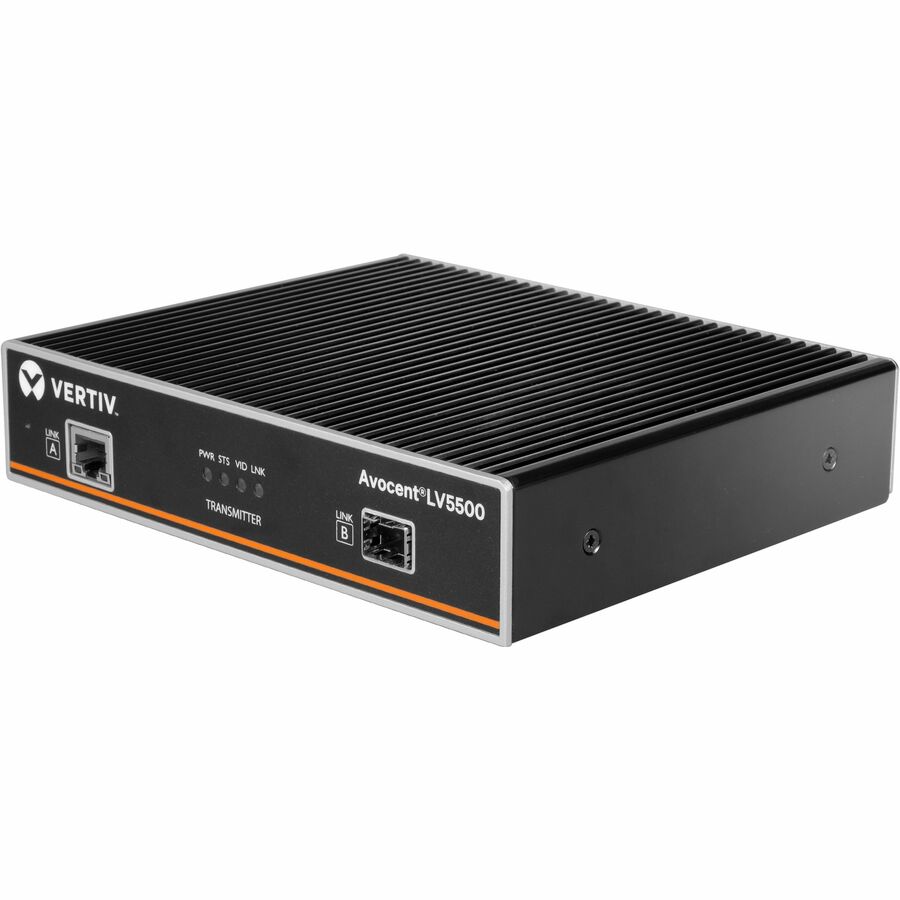

The Vertiv Avocent LongView 5500 Transmitter (LV5500T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5500T comes equipped with a dependable performance along with intelligent EDID management. Coupled with the Avocent LV5500R, the LV5500T is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5500T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
- Delivers seamless KVM control and 4k video transmission.
- Allows for greater distance with the Fiber Option.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Faster throughput with updated USB.
Additional information
| Number of HDMI Ports | 0 |
|---|---|
| Maximum Operating Distance | 13123.36 ft |
| Number of Network (RJ-45) P | 1 |
| Connectivity Technology | Wired |
| Number of Computers Support | 1 |
| Graphic Mode | 4K |
| Number of Local Users Suppo | 1 |
| Number of USB Ports | 2 |
| Maximum Video Resolution | 4096 x 2160 |
| Platform Supported | PC,Mac,Unix,Sun,Linux |
| Power Consumption | 18 W |
| Input Voltage | 120 V AC,230 V AC |
| USB | Yes |
| Product Series | 5000 |
| Device Type | High Performance KVM |
| HDMI | No |
| Number of PS/2 Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DVI Ports | 0 |
| PS/2 Port | No |
| Headphone | Yes |
| KVM Technology | Digital |
| Product Type | KVM Extender Transmitter |
| DVI | No |
| Manufacturer Website Addres | |
| Manufacturer | Vertiv |
| VGA | No |
| Number of Remote Users Supp | 1 |
| DisplayPort | Yes |
| Product Line | LongView |
| Network (RJ-45) | Yes |
| Country of Origin | United Kingdom |
| Product Model | LV5500T |

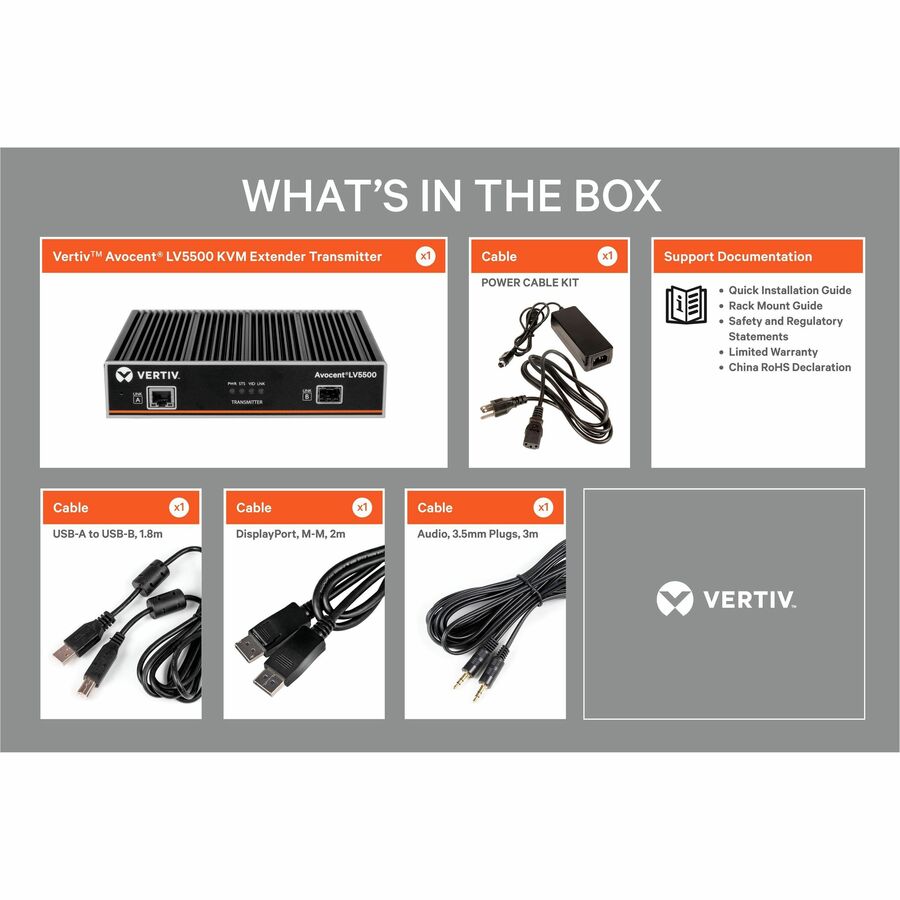

| Package Contents | <ul> <li>LV5500 High-Performance KVM Extender, Transmitter </li> <li>1 x LV5500 Extender Quick Installation Guide</li> <li>1 x Extender RMK Quick Installation Guide</li> <li>1 x Compliance/Safety Sheet (See PLM BOM) 1 each</li> <li>1 x Customer Support/Warranty Card (See PLM BOM)</li> <li>1 x 3.5mm stereo plug to plug audio cable, 3meter </li> <li>1 x USB cable, Type A to Type B, 1.8meter</li> <li>1 x DisplayPort cable, M-M, High Bit-Rate, 2meter </li> <li>1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 </li> <li>1 x China RoHS Declaration</li> <li>1 x Vertiv document wallet </li> </ul> |
| Transmitter Depth | 5.83" |
| Transmitter Weight (Approxi | 2.84 lb |
| Transmitter Height | 1.54" |
| Transmitter Width | 7.32" |
| Proprietary Interface | No |
| Microphone | Yes |
| TAA Compliant | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Limited Warranty | 2 Year |
| Packaged Quantity | 1 |
| Environmentally Friendly | Yes |
| Input Voltage Range | 100-240 VAC |
| Product Color | Black |
| UPC | 636430090894 |
| MPN | LV5500T-400 |
| Brand | AVOCENT |
