Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver
Login to View Prices

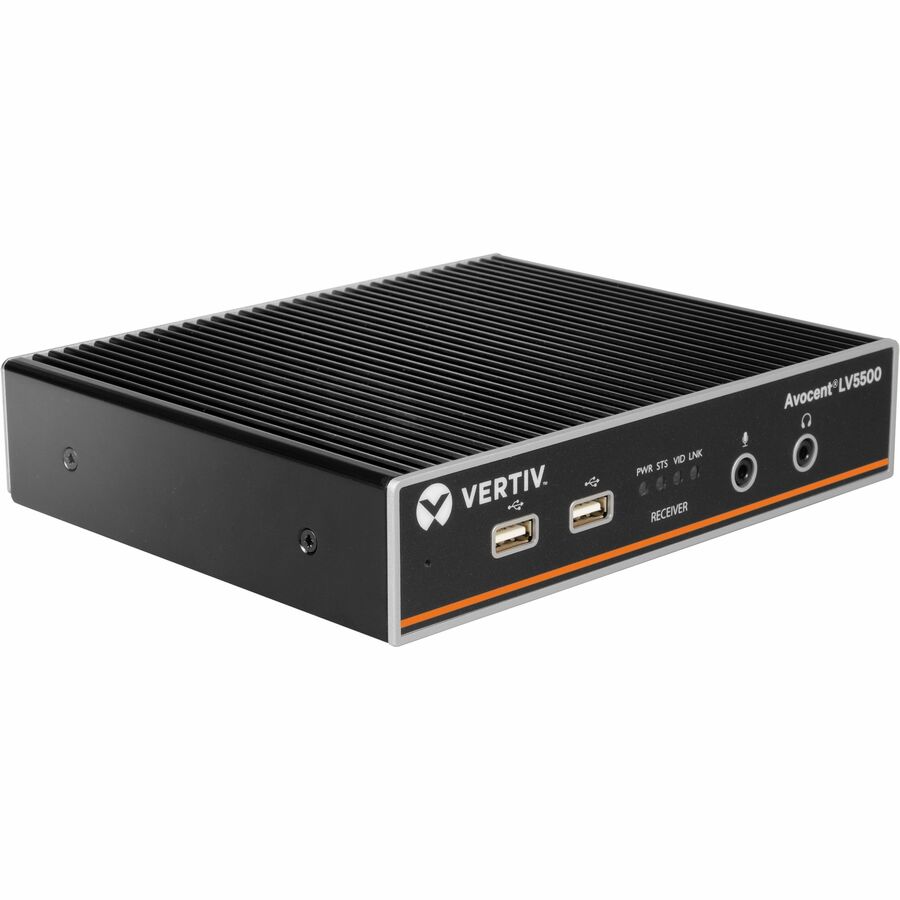

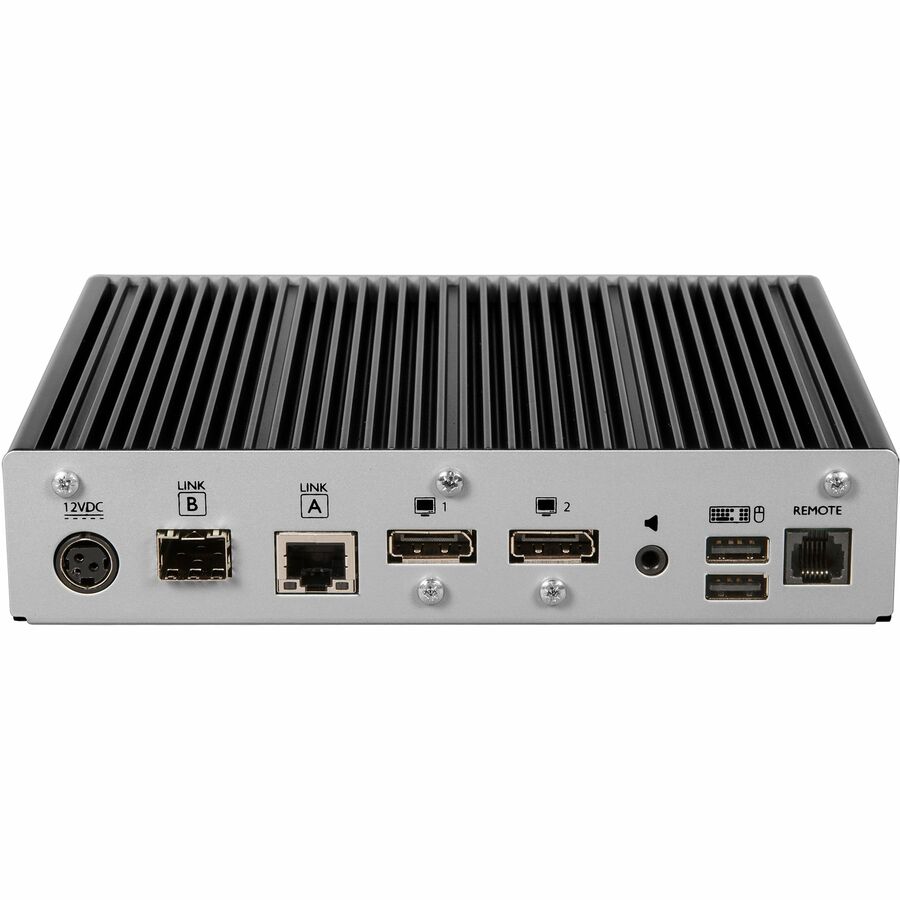

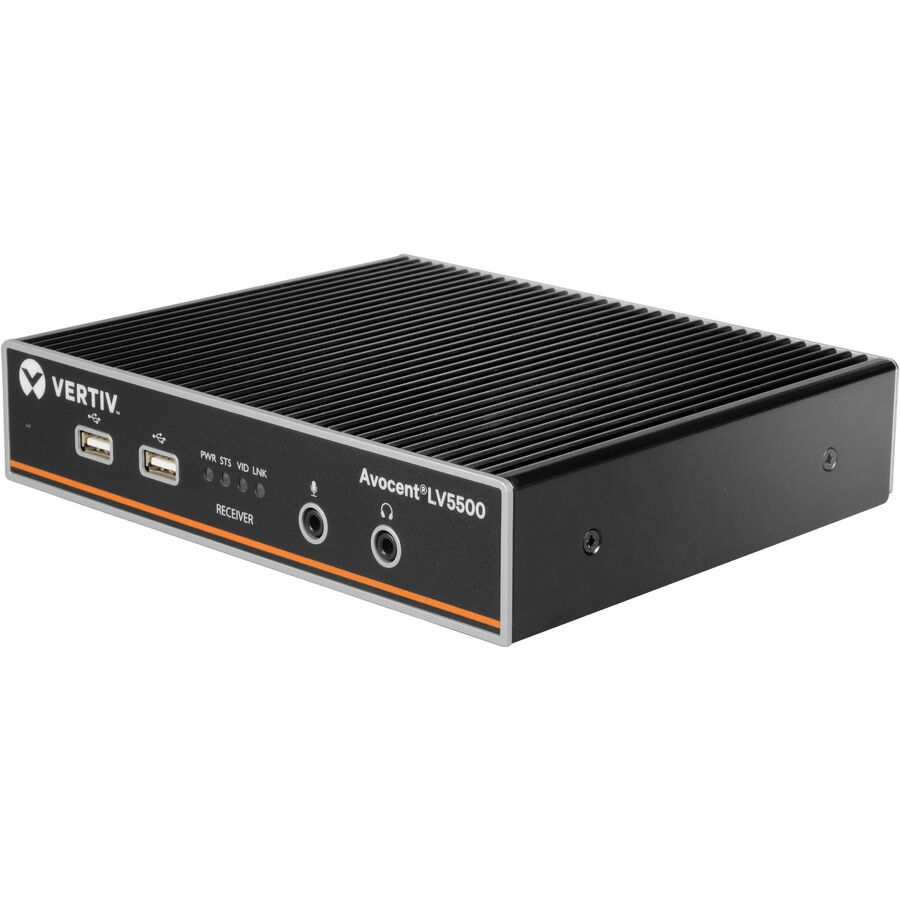

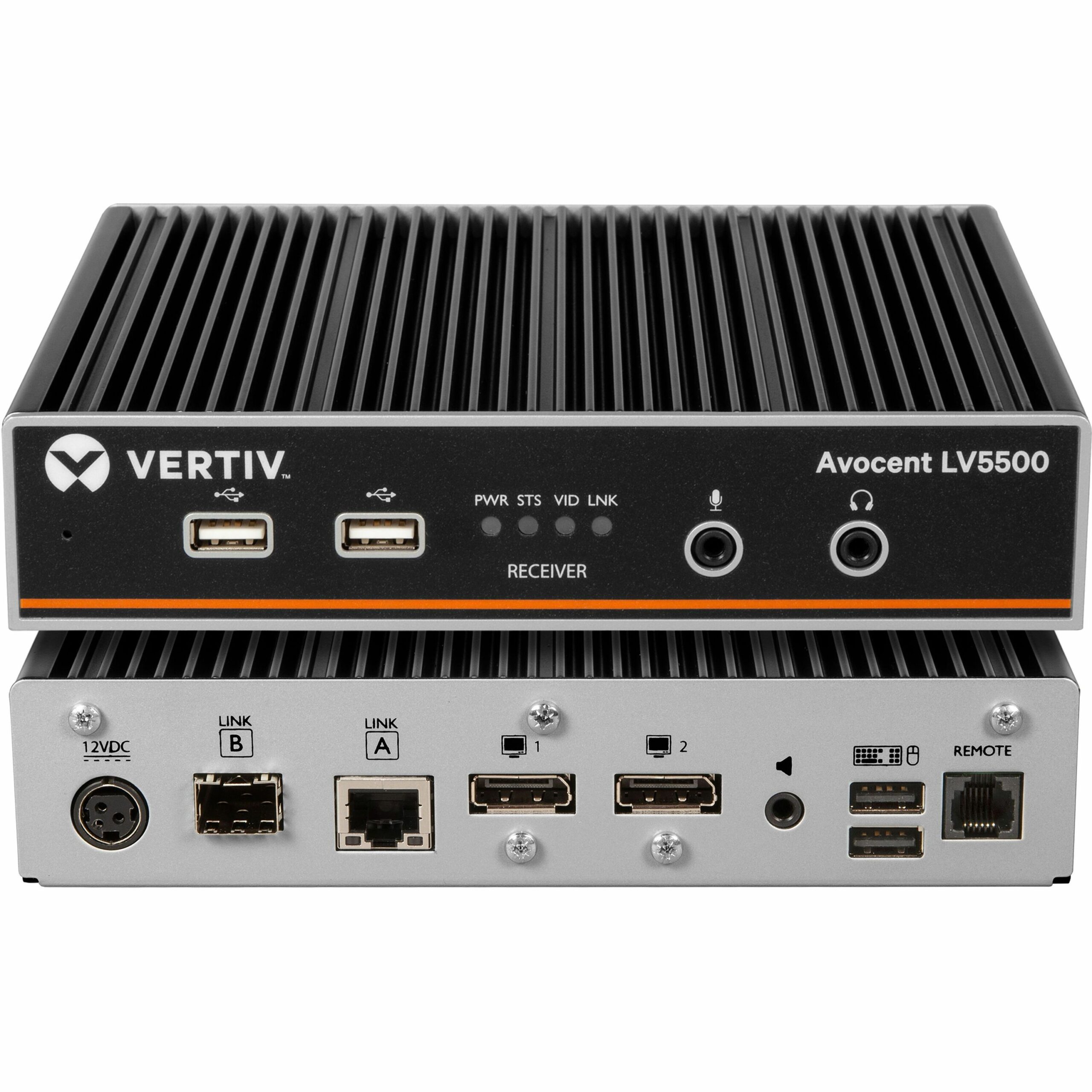

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.
- Delivers seamless KVM control and 4k video transmission.
- Allows for greater distance with the Fiber Option.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Faster throughput with updated USB.
Additional information
| Number of HDMI Ports | 0 |
|---|---|
| Maximum Operating Distance | 13123.36 ft |
| Number of Network (RJ-45) P | 1 |
| Connectivity Technology | Wired |
| Number of Computers Support | 1 |
| Graphic Mode | 4K |
| Number of Local Users Suppo | 1 |
| Number of USB Ports | 2 |
| Maximum Video Resolution | 4096 x 2160 |
| Power Consumption | 18 W |
| Input Voltage | 120 V AC,230 V AC |
| USB | Yes |
| Product Series | 5000 |
| Device Type | High Performance KVM |
| HDMI | No |
| Number of PS/2 Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DVI Ports | 0 |
| PS/2 Port | No |
| Headphone | Yes |
| KVM Technology | Digital |
| Product Type | KVM Extender Receiver |
| DVI | No |
| Manufacturer Website Addres | |
| Manufacturer | Vertiv |
| VGA | No |
| Number of Remote Users Supp | 1 |
| DisplayPort | Yes |
| Product Line | LongView |
| Network (RJ-45) | Yes |
| Country of Origin | United Kingdom |
| Product Model | LV5500R |

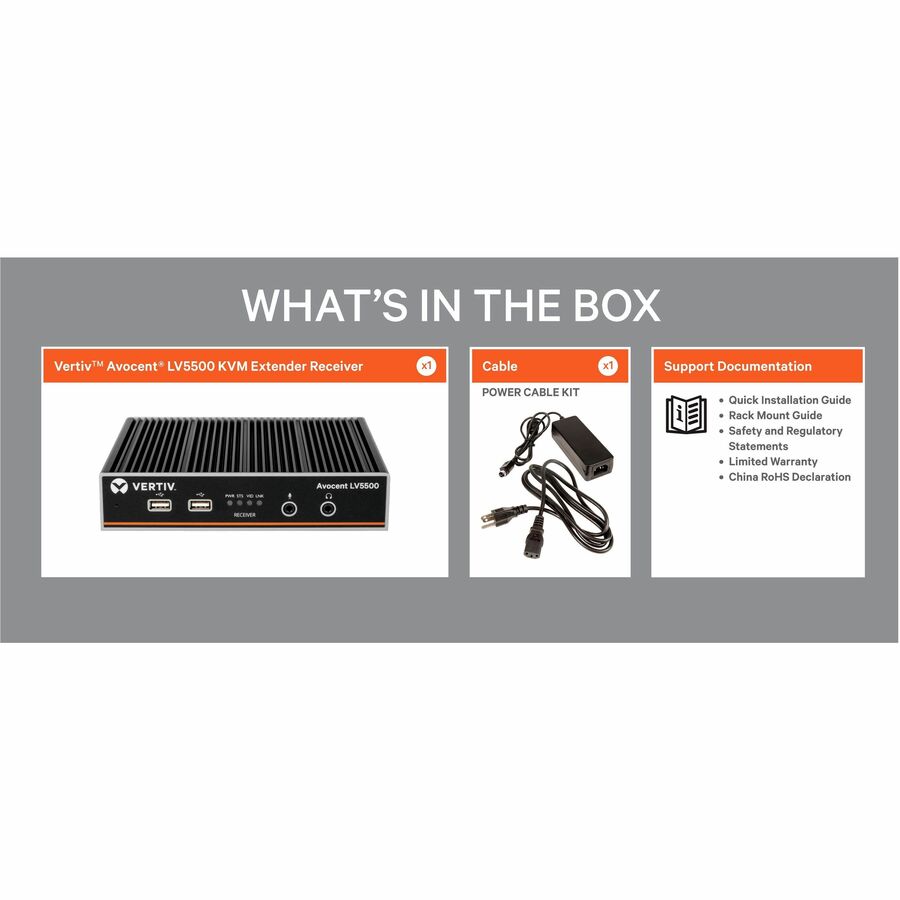

| Package Contents | <ul> <li>LV5500 High-Performance KVM Extender, Receiver</li> <li>1 x LV5500 Extender Quick Installation Guide</li> <li>1 x Extender RMK Quick Installation Guide</li> <li>1 x Compliance/Safety Sheet (See PLM BOM) 1 each</li> <li>1 x Customer Support/Warranty Card (See PLM BOM)</li> <li>1 x 3.5mm stereo plug to plug audio cable, 3meter </li> <li>1 x USB cable, Type A to Type B, 1.8meter</li> <li>1 x DisplayPort cable, M-M, High Bit-Rate, 2meter </li> <li>1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 </li> <li>1 x China RoHS Declaration</li> <li>1 x Vertiv document wallet </li> </ul> |
| Platform Supported | PC,Unix,Mac,Sun,Linux |
| Receiver Width | 7.32" |
| Receiver Weight (Approximat | 2.73 lb |
| Receiver Depth | 5.83" |
| Receiver Height | 1.54" |
| Proprietary Interface | No |
| Microphone | Yes |
| TAA Compliant | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Limited Warranty | 2 Year |
| Packaged Quantity | 1 |
| Environmentally Friendly | Yes |
| Input Voltage Range | 100-240 VAC |
| Product Color | Black |
| UPC | 636430090900 |
| MPN | LV5500R-400 |
| Brand | AVOCENT |
