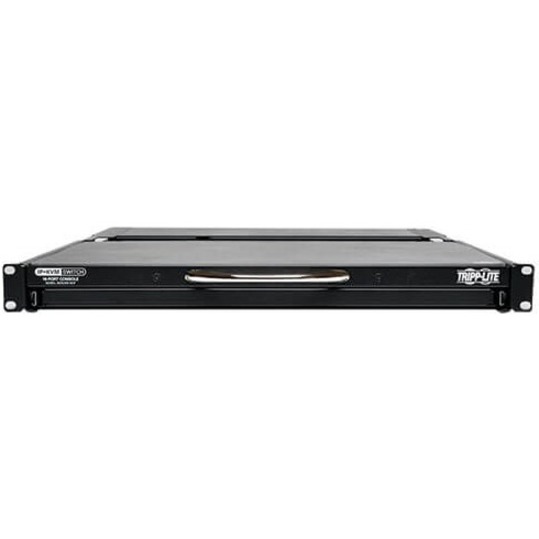

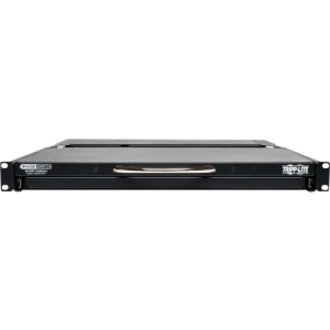

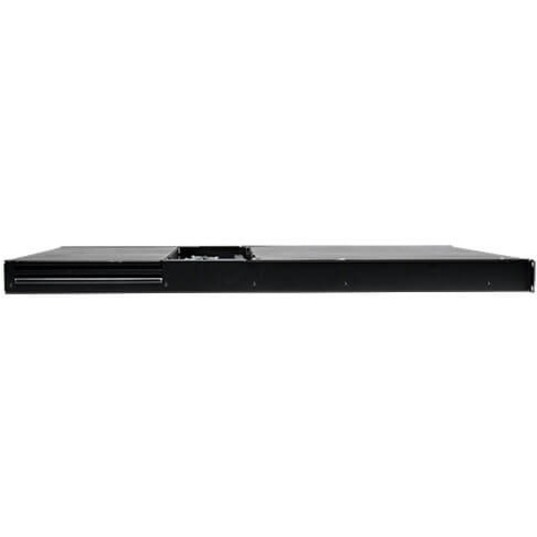

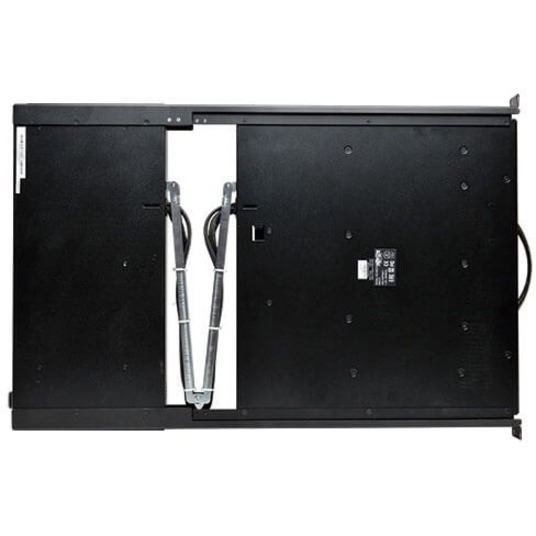

Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch – 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount

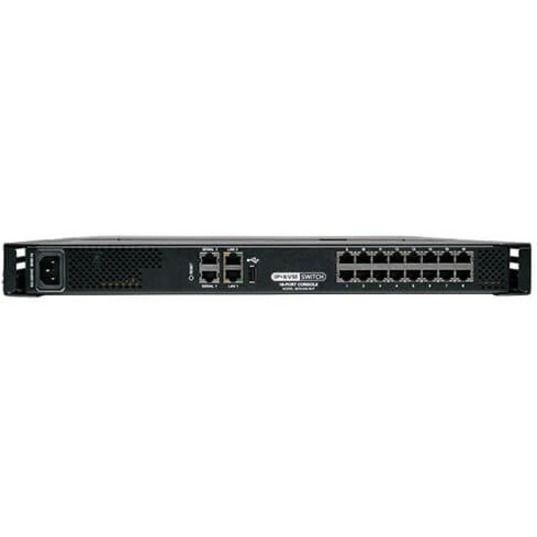

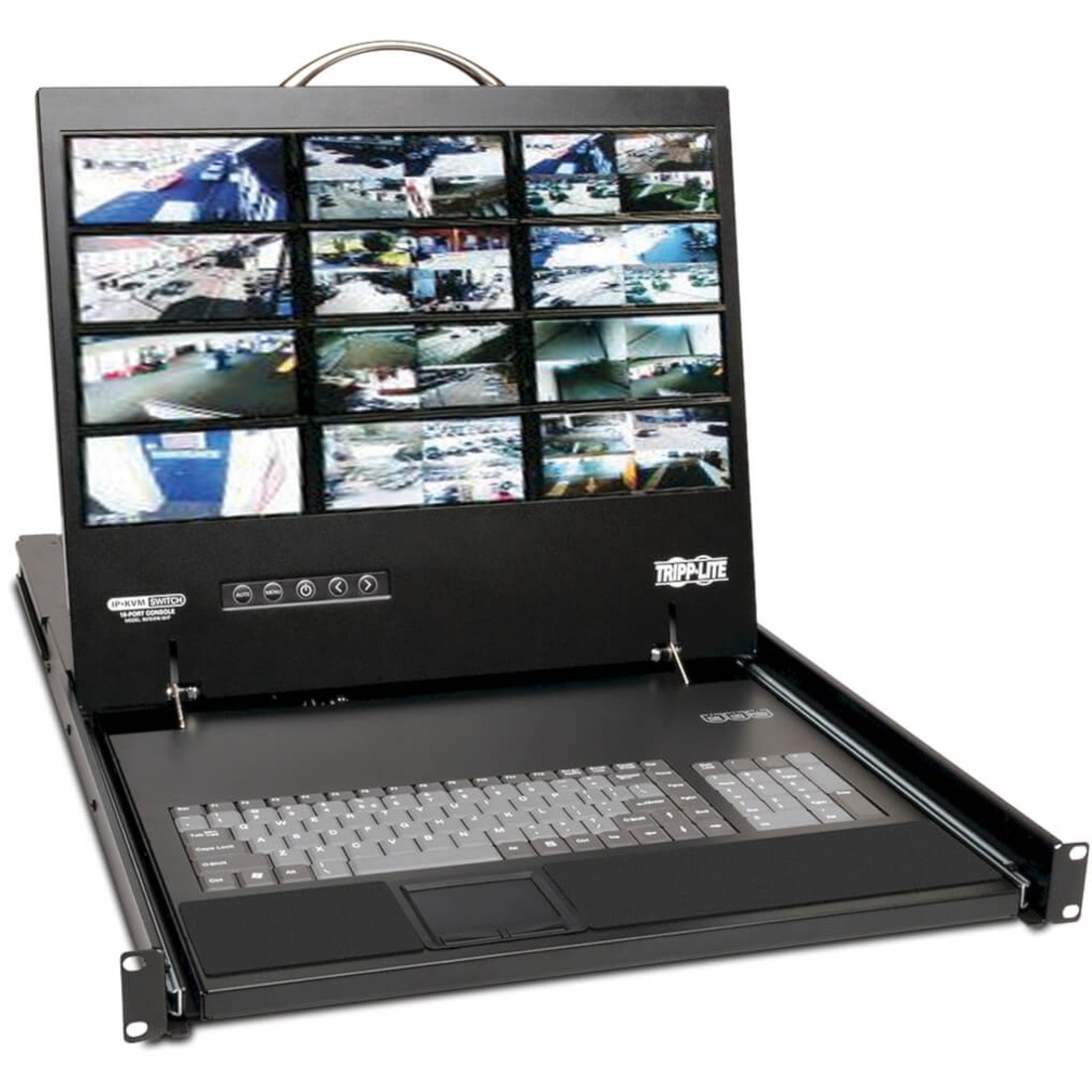

Tripp Lite’s B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19″ LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU’s, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com

• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
• Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM’s (B070 and B072 IP series) from a single interface
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Simultaneous support for 2 users – 1 local, 1 remote
• 19″ LCD screen supports video resolutions up to 1366 x 768
• Low-cost Cat5 cabling allows longer distances, reduces cable clutter
• Occupies just 1U of space in a rack-mountable drawer
• Control computers/servers locally or via LAN, WAN or Internet
