Tripp Lite by Eaton 5.8kW 200-240V Single-Phase Basic PDU – 16 C13 & 4 C19 Outlets, L6-30P Input, 15 ft. (4.6 m) Cord, 1U Rack-Mount
Login to View Prices

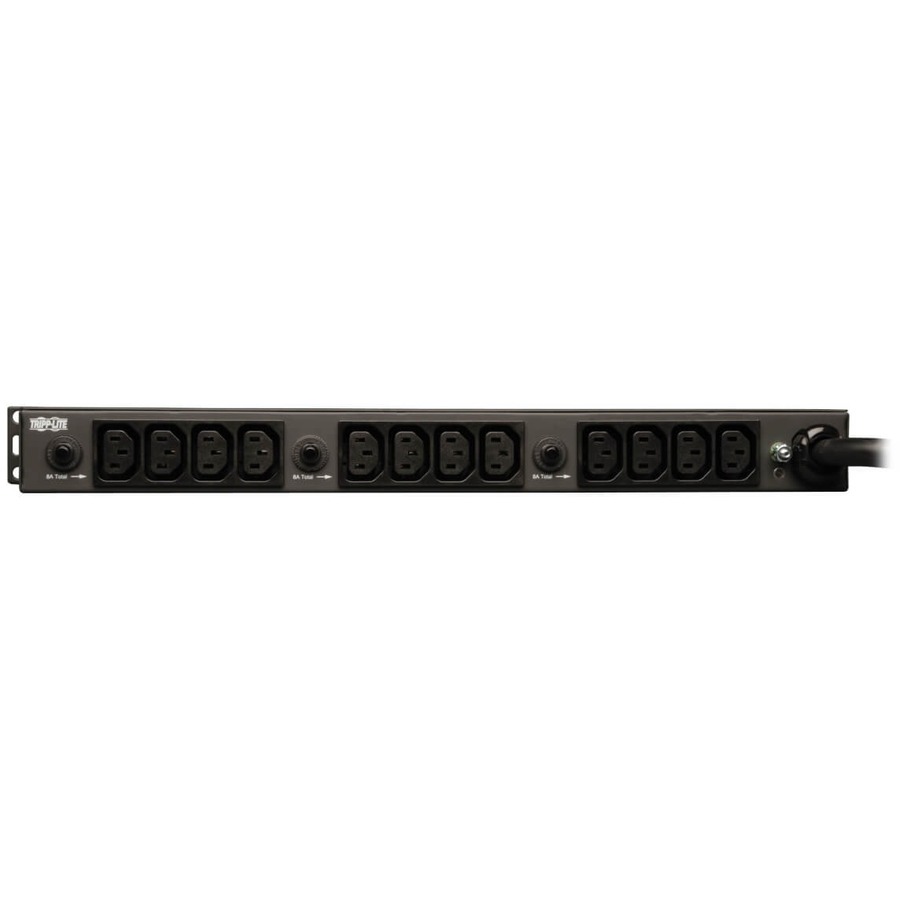

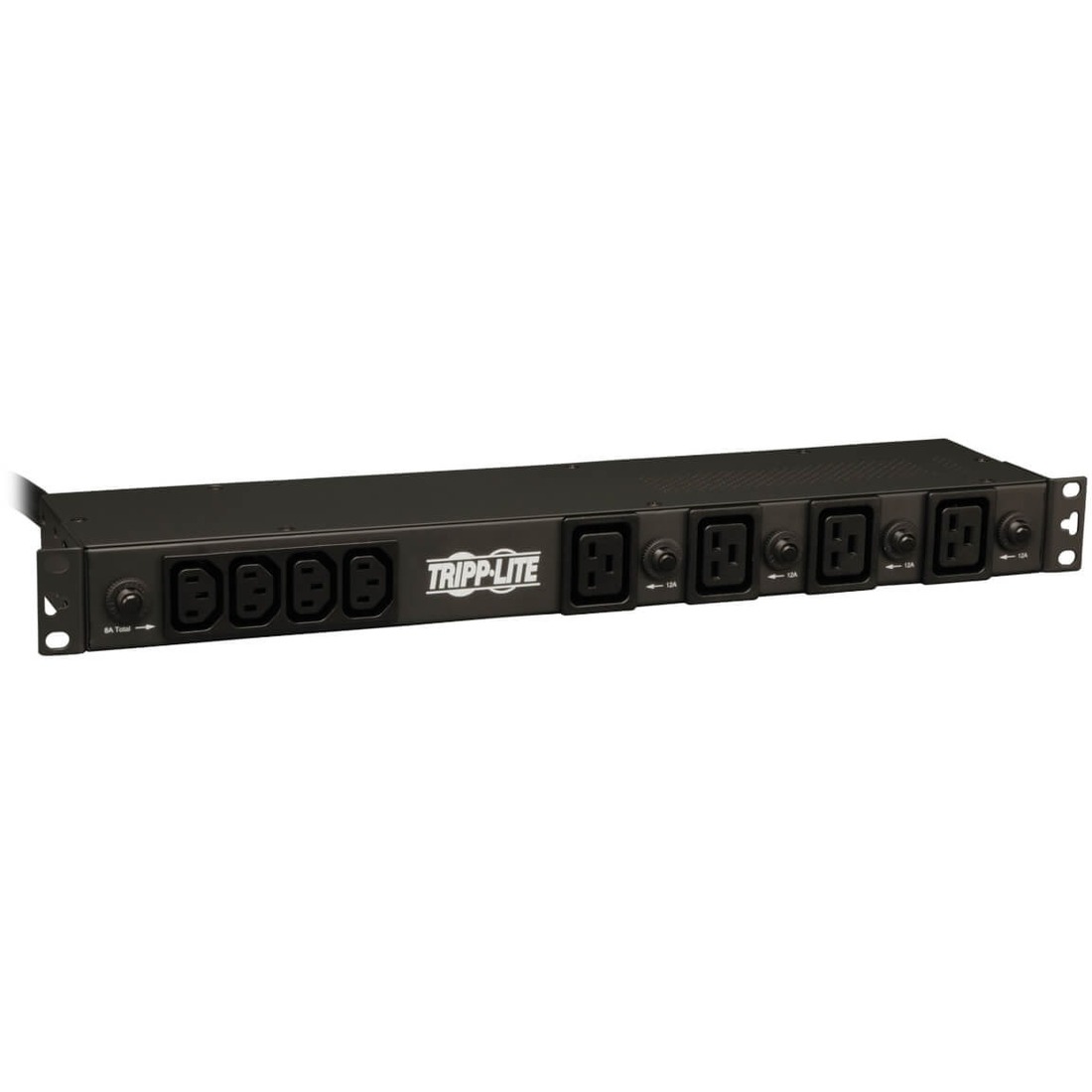

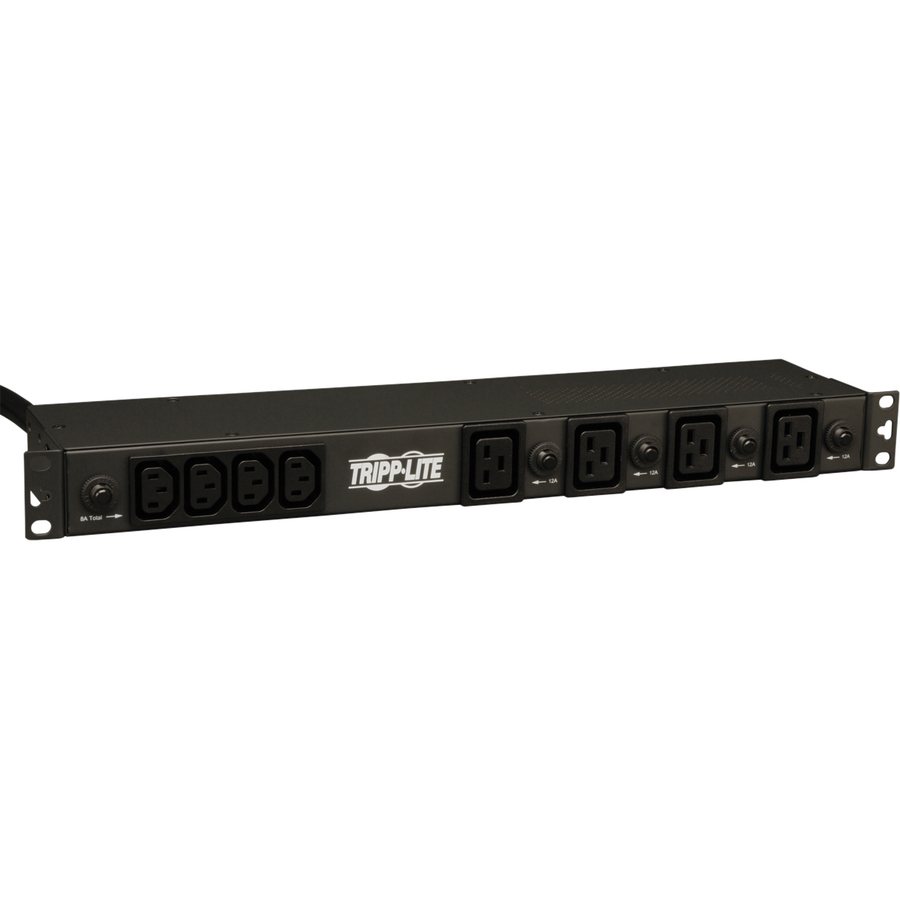

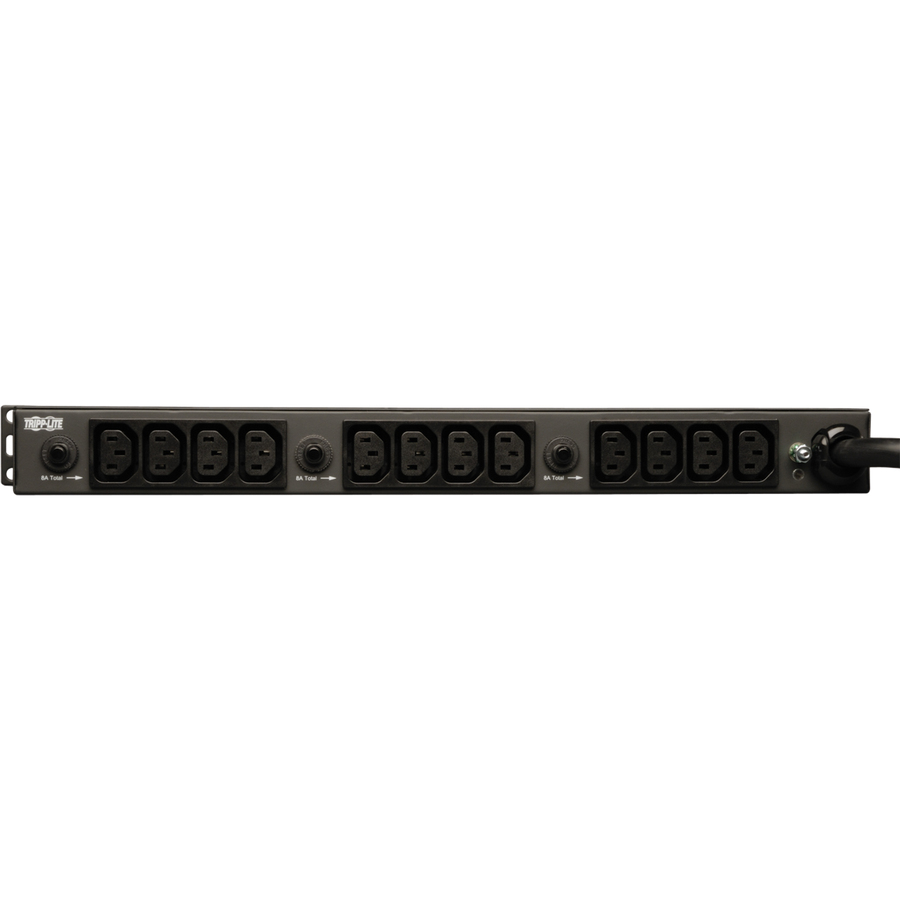

Tripp Lite’s PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
- 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
- 1U horizontal rackmount installation
- NEMA L6-30P input; 15 ft. / 4.5m line cord
- Basic single phase 30A 208/240V PDU
Additional information
| Weight | 7.5000 lbs |
|---|---|
| Dimensions | 5.20 × 17.50 × 1.80 in |
| Plug/Connector Type | NEMA L6-30P |
| Mount Type | Rack-mountable |
| Product Type | PDU |
| Manufacturer Website Addres | |
| Input Voltage | 230 V AC |
| Mounting Orientation | Vertical |
| Output Voltage | 208 V AC,240 V AC |
| PDU Type | Basic |
| Rack Height | 1U |
| Input Voltage Range | 208 V AC – 240 V AC |
| Limited Warranty | 5 Year |
| Receptacle Detail | 20 |
| Power Rating (VA) | 4990 VA |
| Package Contents | <ul><li>PDU1230 PDU Basic 208V / 240V 30A 20 Outlet</li><li>Instruction Manual with Warranty Information</li></ul> |
| Product Model | PDU1230 |
| Manufacturer | Tripp Lite by Eaton |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| UPC | 0 |
| MPN | PDU1230 |
| Brand | Tripp Lite by Eaton |
