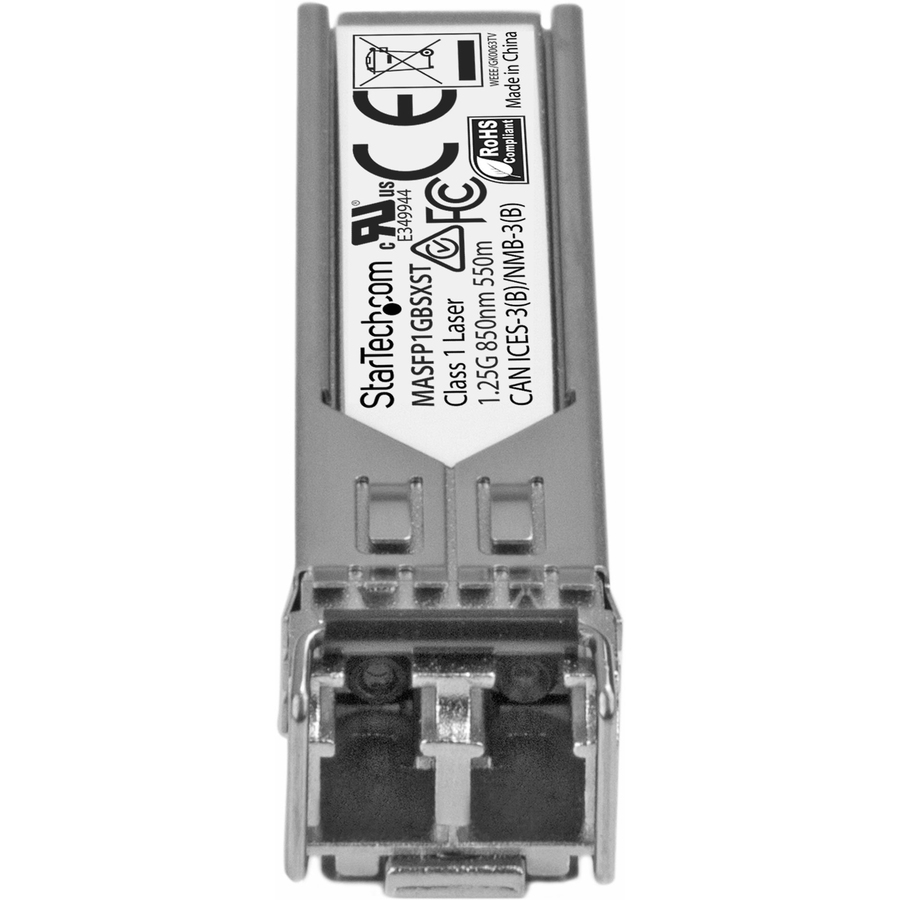

StarTech.com Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module – 1000BASE-SX – 1GbE Gigabit Ethernet SFP Multimode Fiber MMF Optic Transceiver
Login to View Prices
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550m (1804 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won’t void your OEM support and with access to our Tech Advisors 5/24
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver’s status to most SNMP network management tools
- TECHNICAL SPECS: 1000BASE-SX
- 1 Gbps
- Multi Mode (MMF)
- LC Connector
- 850nm
- Digital Diagnostic Monitoring (DDM)
- Distances up to 550m (1804ft)
- 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
Additional information
| Weight | 0.0300 lbs |
|---|---|
| Dimensions | 2.20 × 0.50 × 0.50 in |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Total Number of Ports | 1 |
| Form Factor | Hot-pluggable,Hot-swappable |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Compatibility | <ul> <li>MSA Compliant</li> </ul> <b>Cisco Meraki Switches:</b><br /> <ul> <li>MS225</li> <li>MX400</li> <li>MS250</li> <li>MS350</li> <li>MX84</li> </ul> |
| Packaged Quantity | 1 |
| Fiber Mode Supported | Multi-mode |
| Connector Type | LC |
| Application/Usage | Data Networking,Optical Network |
| Product Type | SFP (mini-GBIC) |
| Network Technology | 1000Base-SX |
| Manufacturer Website Addres | |
| Limited Warranty | Lifetime |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Manufacturer | StarTech.com |
| UPC | 0065030868655 |
| MPN | MASFP1GBSXST |
| Brand | StarTech.com |
