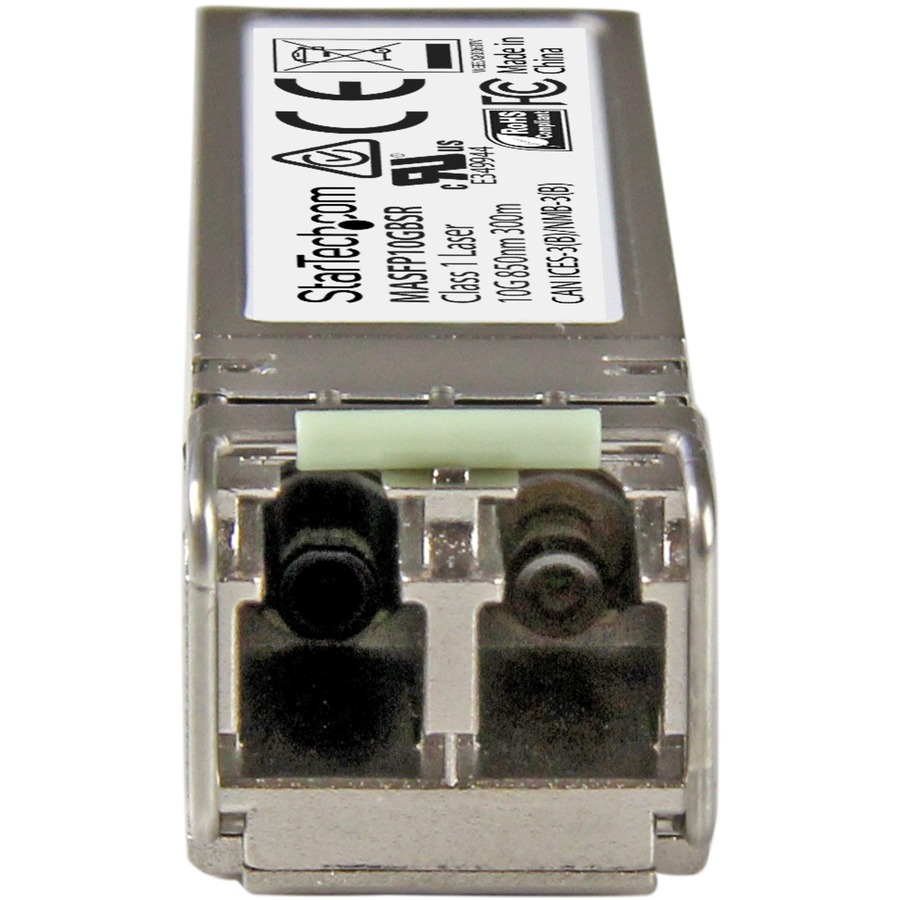

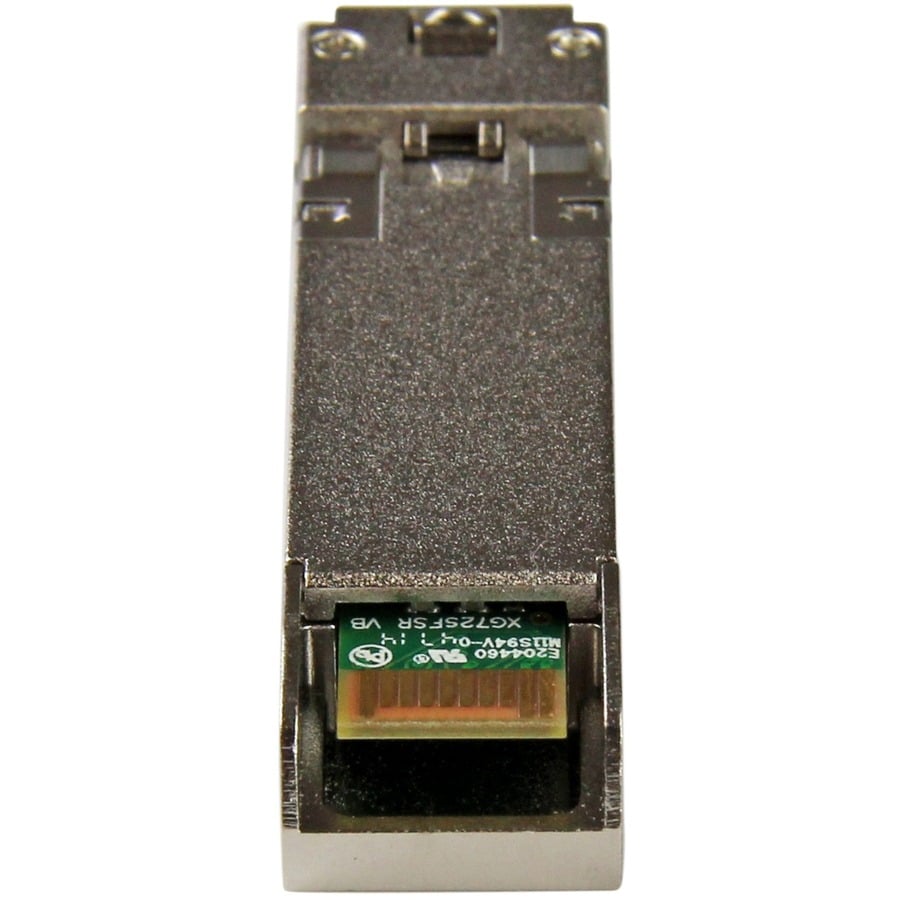

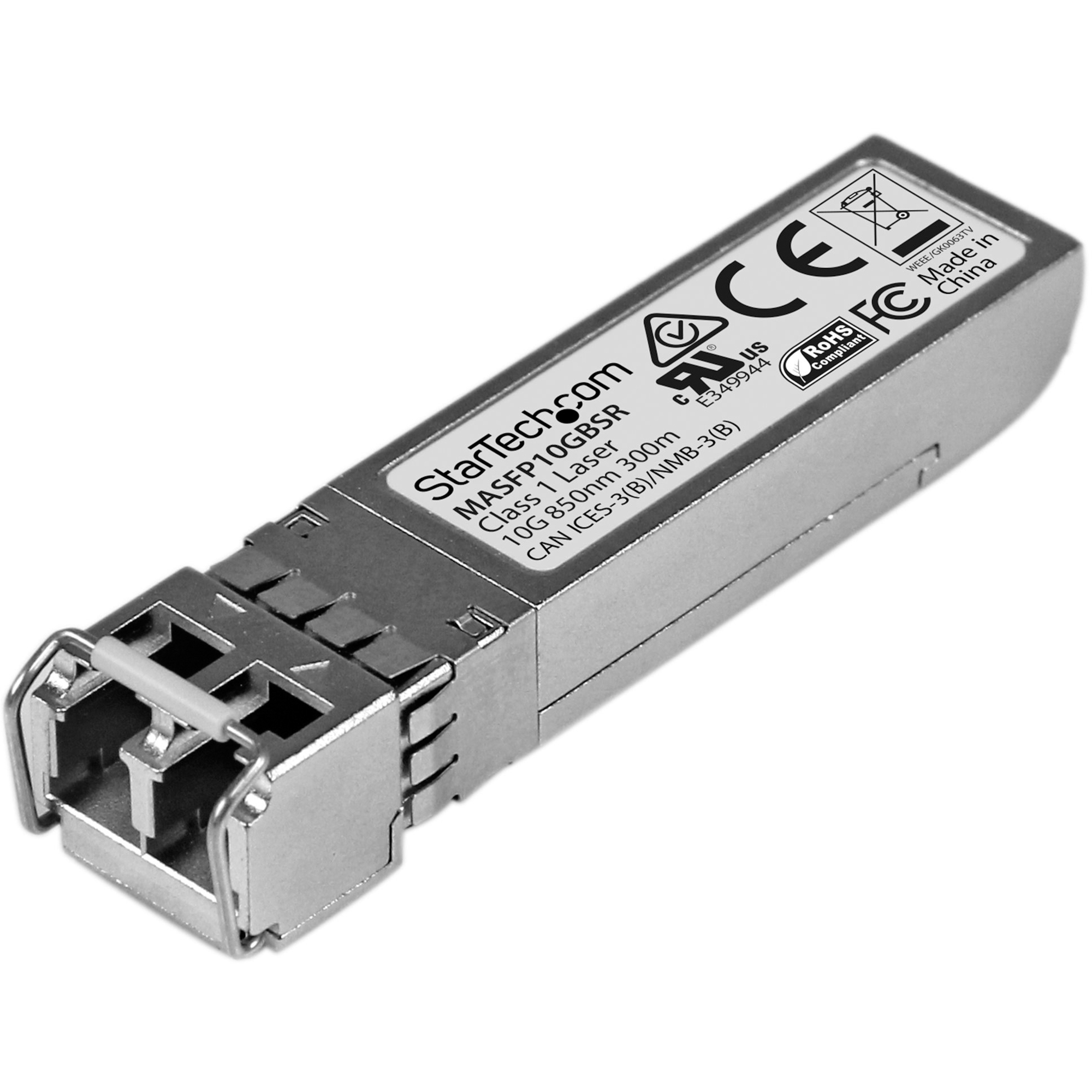

StarTech.com Cisco Meraki MA-SFP-10GB-SR Comp. SFP+ Module – 10GBASE-SR – 10GbE Gigabit Ethernet Multimode Fiber MMF Optic Transceiver
Login to View Prices
The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won’t void your OEM support and with access to our Tech Advisors 5/24
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver’s status to most SNMP network management tools
- TECHNICAL SPECS: 10GBASE-SR
- 10 Gbps
- Multi Mode (MMF)
- LC Connector
- 850nm
- Digital Diagnostic Monitoring (DDM)
- Distances up to 300m (984ft)
- 100% CISCO MERAKI MA-SFP-10GB-SR COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MS425 and others
Additional information
| Weight | 0.0400 lbs |
|---|---|
| Dimensions | 2.10 × 0.50 × 0.50 in |
| Total Number of Ports | 1 |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network |
| Form Factor | Hot-pluggable,Hot-swappable |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-SR |
| Compatibility | <ul> <li>MSA Compliant</li> </ul> <b>Cisco Meraki Switches</b><br /> <ul> <li>MS225</li> <li>MX400</li> <li>MS250</li> <li>MS350</li> <li>MS425</li> </ul> |
| Product Type | SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet |
| Packaged Quantity | 1 |
| Fiber Mode Supported | Multi-mode |
| Connector Type | LC |
| Application/Usage | Data Networking,Optical Network |
| Manufacturer Website Addres | |
| Limited Warranty | Lifetime |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Manufacturer | StarTech.com |
| UPC | 0065030869966 |
| MPN | MASFP10GBSR |
| Brand | StarTech.com |
