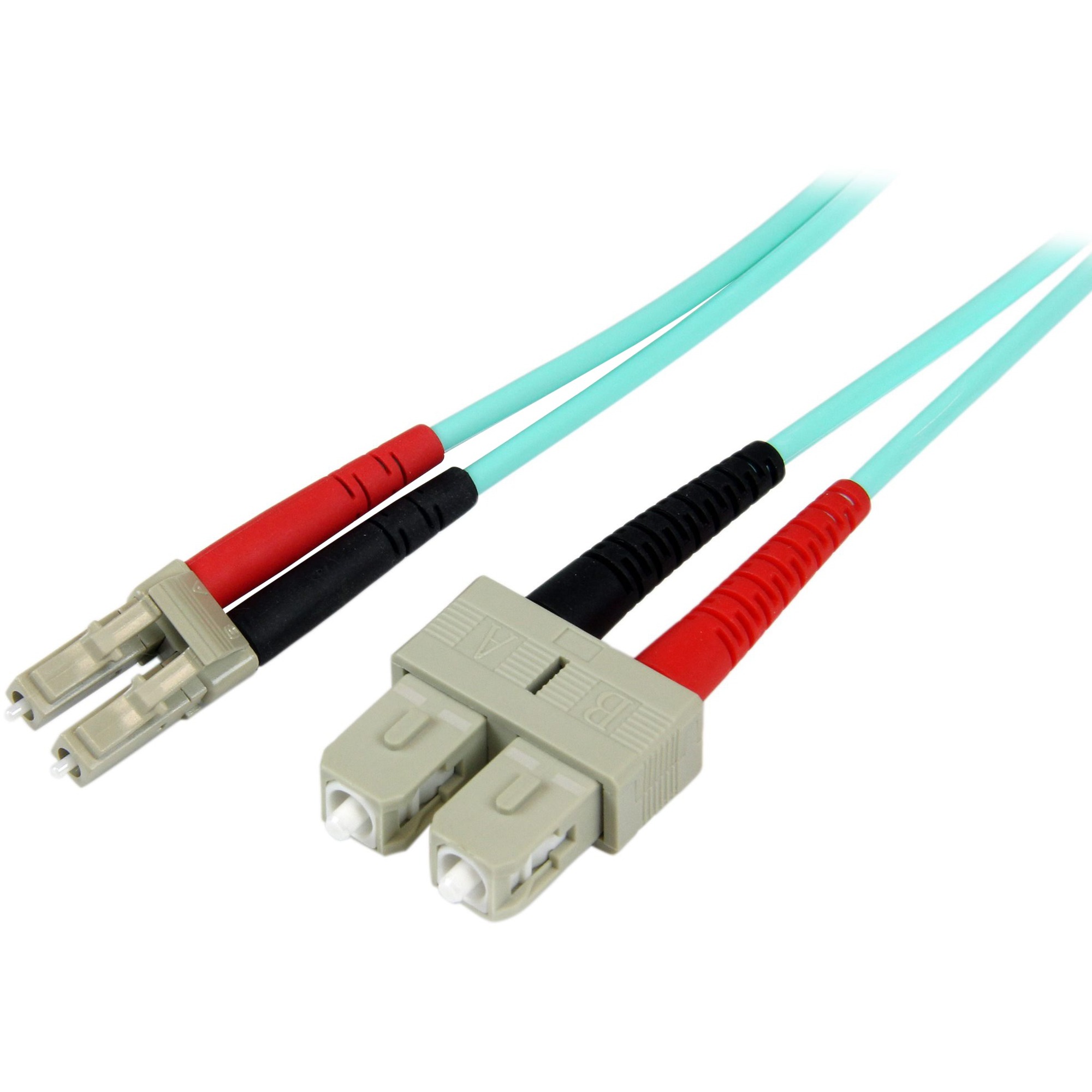

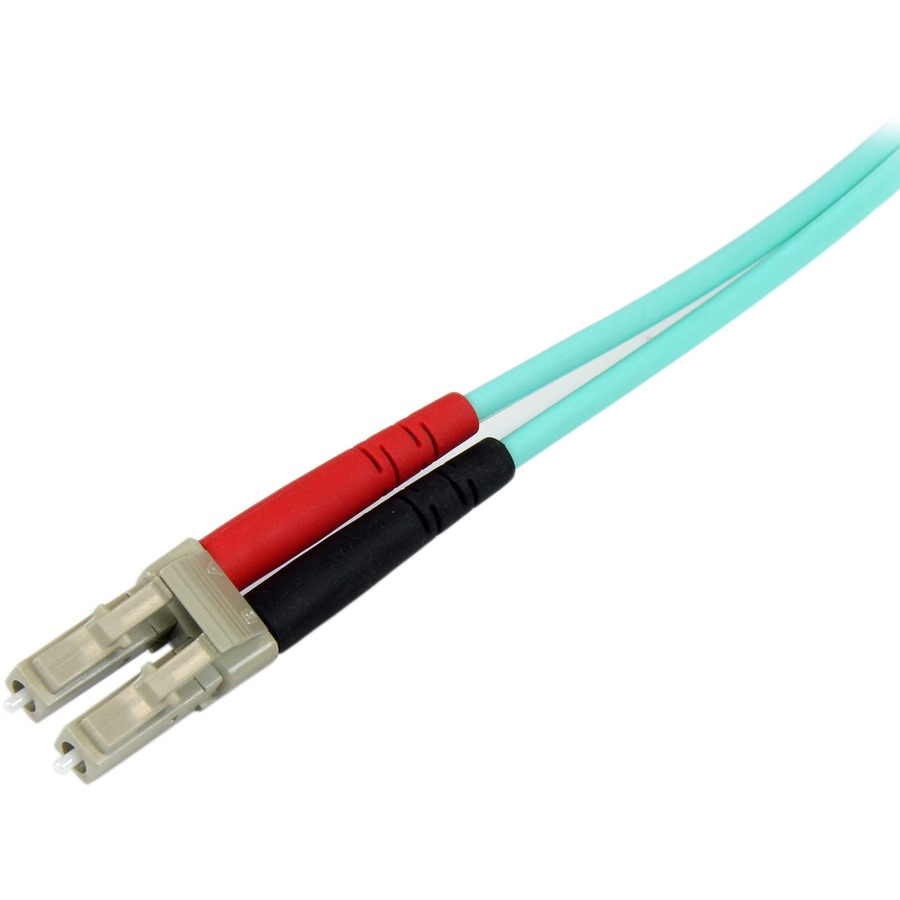

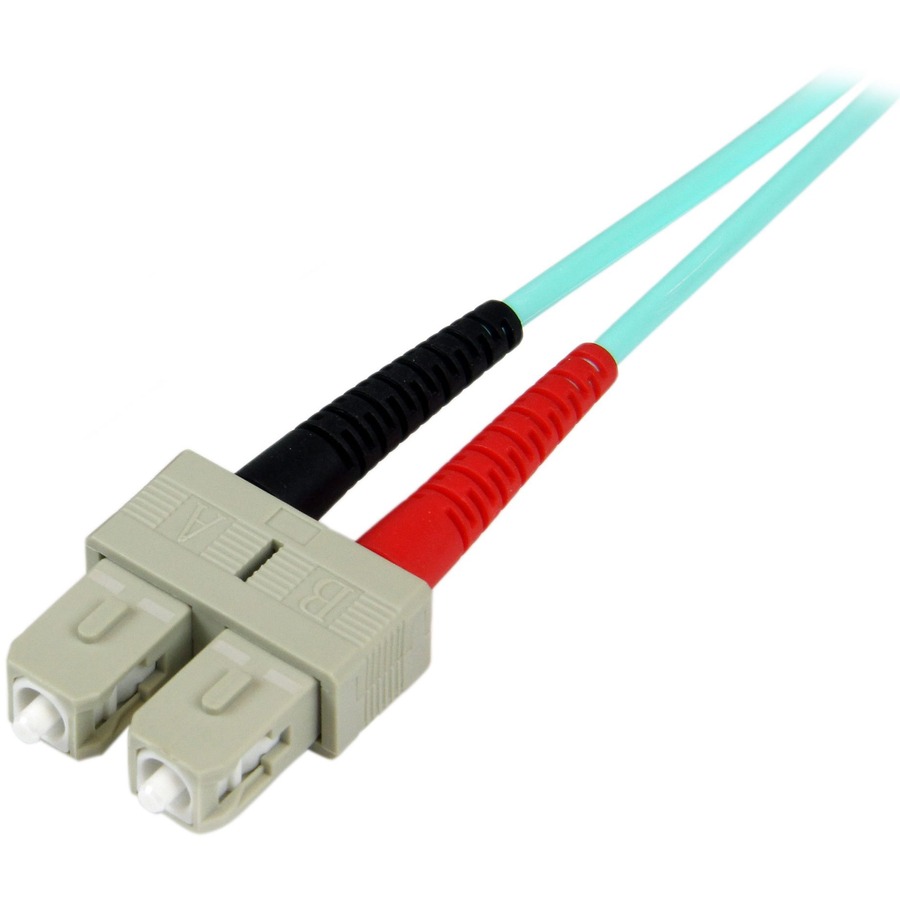

StarTech.com 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Zipcord Fiber, 100Gbps, LOMMF, LSZH Fiber Patch Cord
Login to View Prices
Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher-end networking equipment, this high-speed 10-Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, fiber optic cable is housed in a flame-retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it an excellent choice for a wide range of environments, including industrial settings, central offices and schools as well as residential settings where building codes are a consideration.
- SPECS: 10m (33ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Additional information
| Fiber Optic Mode | Multi-Mode |
|---|---|
| Product Color | Aqua |
| Connector Type on Second En | SC Network – Male |
| Connector on Second End Det | 2 x SC Network – Male |
| Features | Flame Retardant,Halogen Free |
| Device Supported | Switch,Hub,Router,Network Device |
| Connector Type on First End | LC Network – Male |
| Connector on First End Deta | 2 x LC Network – Male |
| Cable Type | Fiber Optic |
| Core/Cladding Diameter | 50/125 µm |
| Jacket Type | LSZH |
| Cable Length | 32.81 ft |
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer Website Addres | |
| Limited Warranty | Lifetime |
| Connector Gender on Second | Male |
| Connector Gender on First E | Male |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Manufacturer | StarTech.com |
| Product Type | Network Cable |
| UPC | 0065030827218 |
| MPN | A50FBLCSC10 |
| Brand | StarTech.com |
