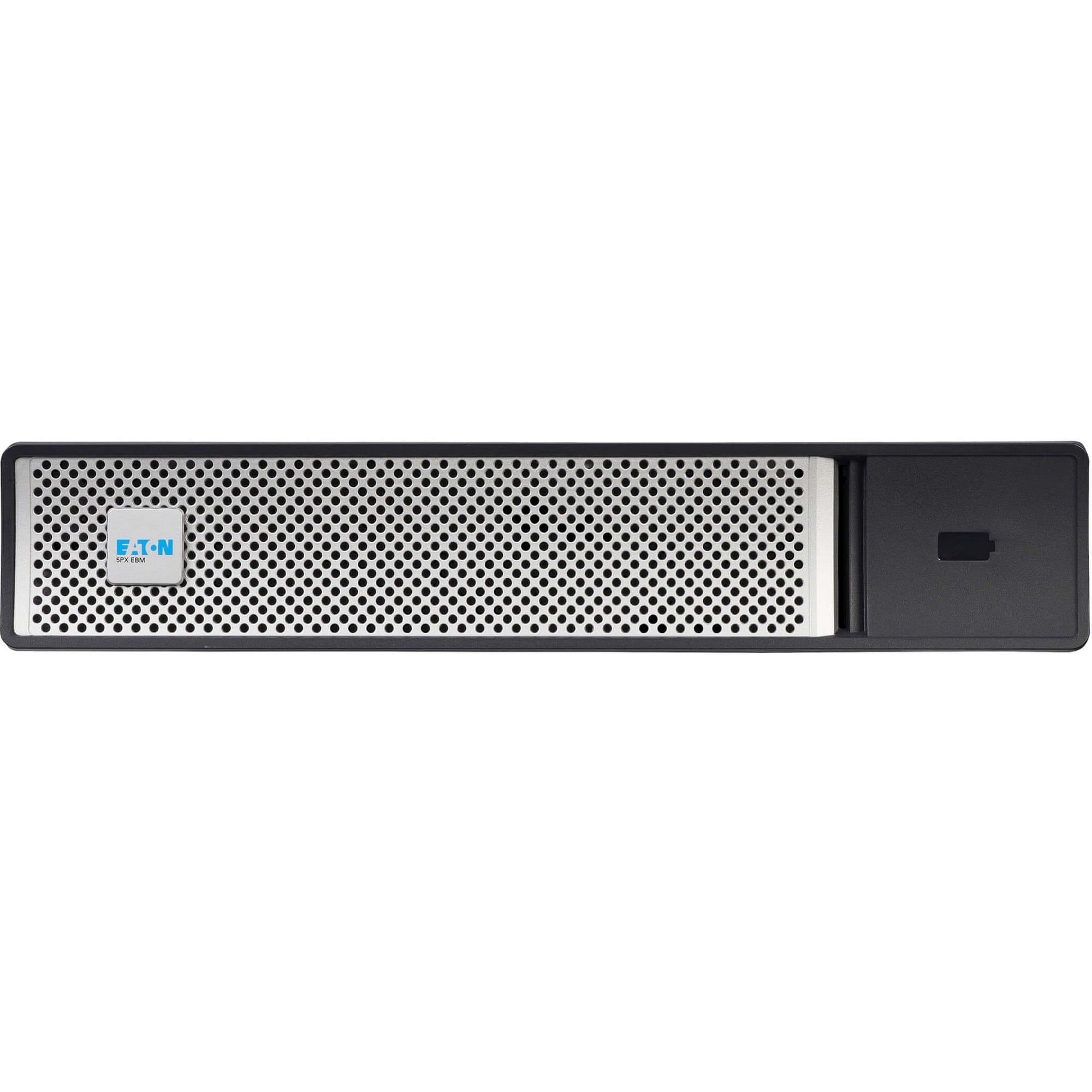

Eaton 72V Extended Battery Module (EBM) for 2000 VA and 2U 3000 VA 5PX G2 UPS Systems, 2U Rack/Tower
Login to View Prices
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 5PXEBM72RTG2 offers extended battery runtime when used in conjunction with Eaton’s 5PX2000RTG2, 5PX2000RTNG2, 5PX2200HRTG2, 5PX3000RTG2, 5PX3000RTNG2, 5PX3000HRTG2 and 5PX3000HRTNG2 5PX G2 UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack’s multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.
- Connects to select expandable Eaton 5PX G2 UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime

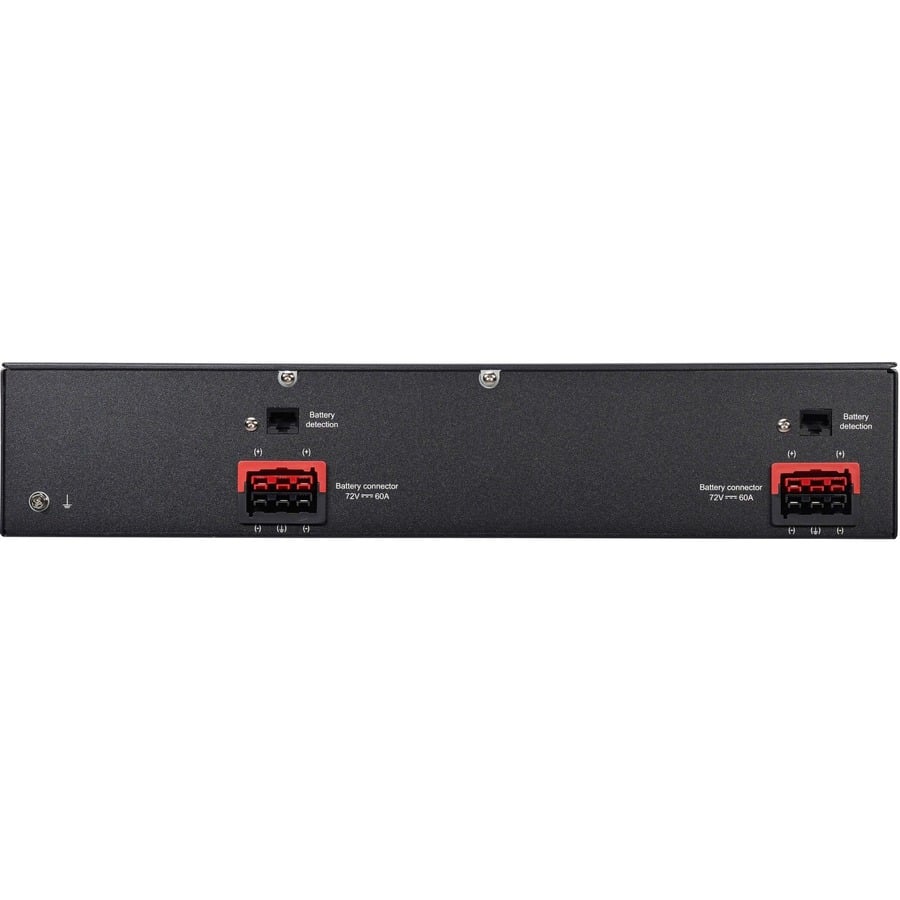

- Includes heavy-gauge cabling with high-current 72V DC connectors
- Supports 2U rack mounting or upright tower installation using included accessories
- 3-year limited warranty
Additional information
| Weight | 89.1000 lbs |
|---|---|
| Dimensions | 23.70 × 17.20 × 3.40 in |
| Battery Chemistry | Lead Acid |
| Country of Origin | Philippines |
| Product Series | 5PX |
| Output Voltage | 72 V DC |
| Product Type | UPS Battery Pack |
| Limited Warranty | 3 Year |
| Manufacturer | Eaton Corporation |
| Manufacturer Website Addres | |
| Package Contents | <ul> <li>5PX G2 Extended Battery Module (EBM)</li> <li>External battery cable</li> <li>Rack-mounting hardware</li> <li>Tower support stands</li> <li>Quick Start Guide</li> </ul> |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Compatibility | <b>Eaton UPS:</b><br /> <ul> <li>5PX2000RTG2</li> <li>5PX2000RTNG2</li> <li>5PX2200HRTG2</li> <li>5PX3000RTG2</li> <li>5PX3000RTNG2</li> <li>5PX3000HRTG2</li> <li>5PX3000HRTNG2 5PX G2</li> </ul> |
| Environmentally Friendly | Yes |
| Hot Swappable | Yes |
| UPC | 0 |
| MPN | 5PXEBM72RTG2 |
| Brand | Eaton |
