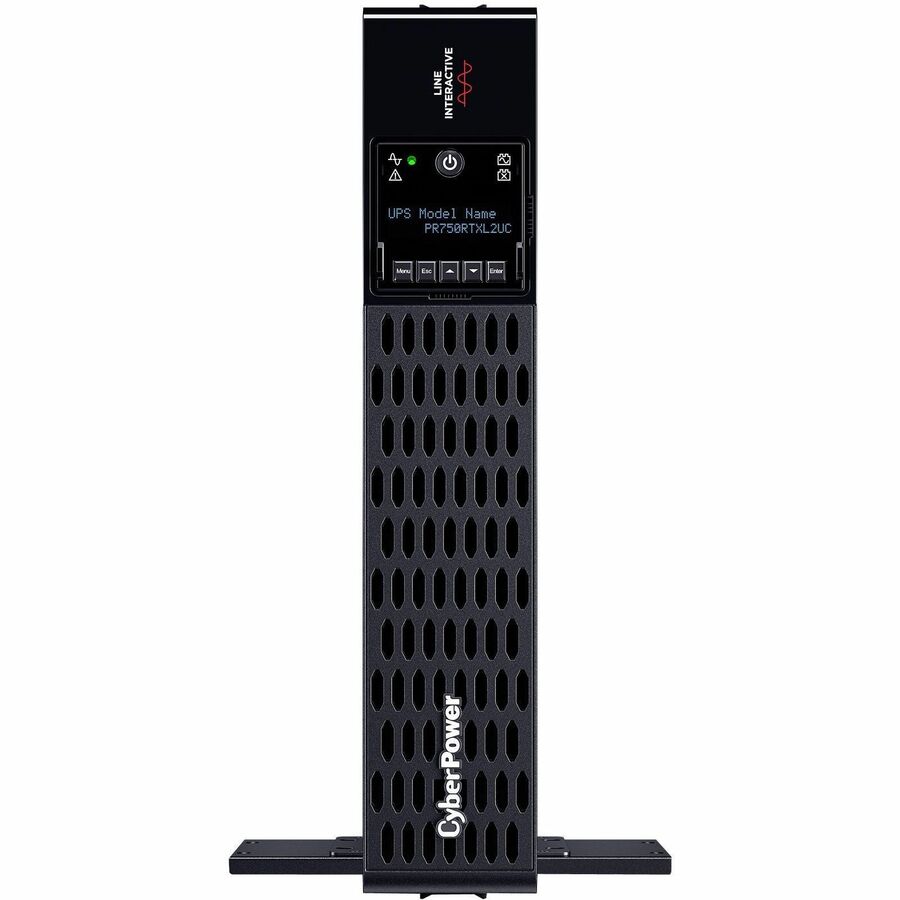

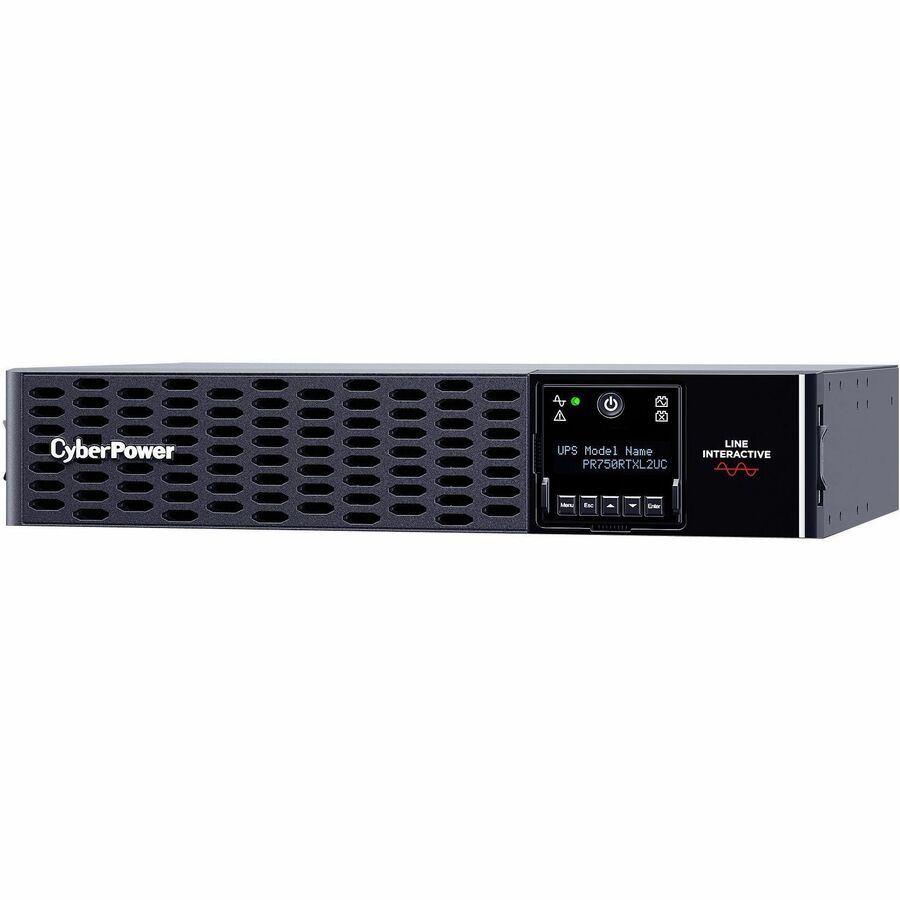

CyberPower Smart App Sinewave PR750RTXL2UC 750VA Rack/Tower UPS
Login to View Prices

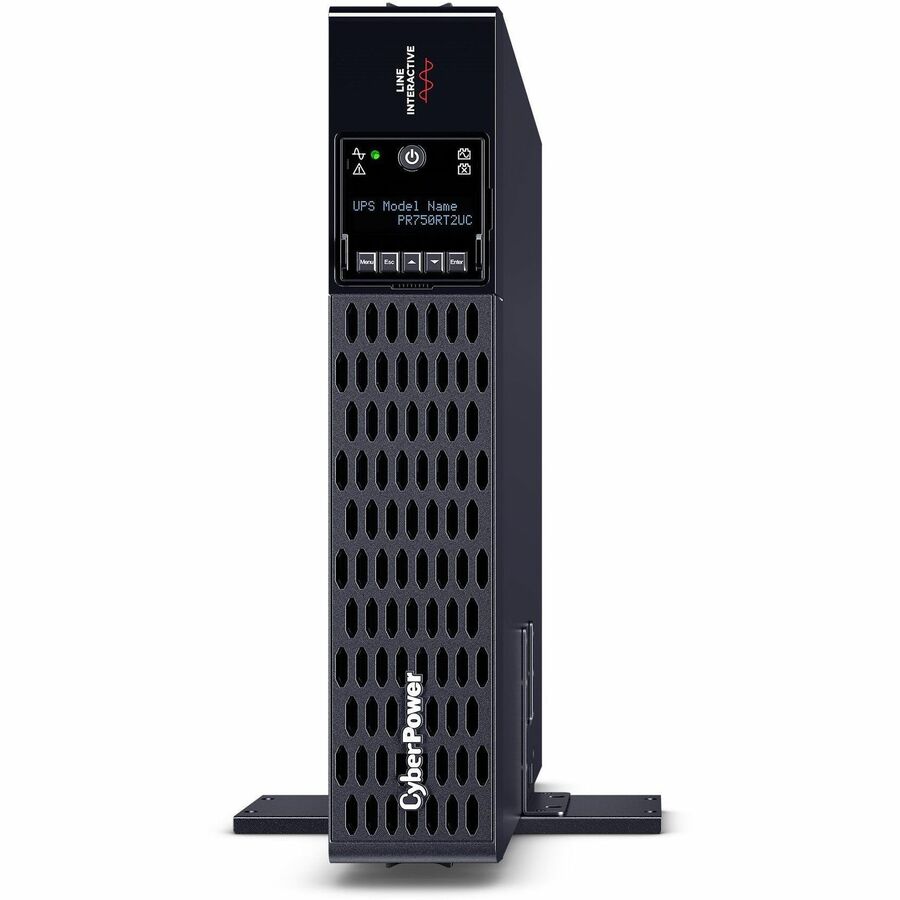

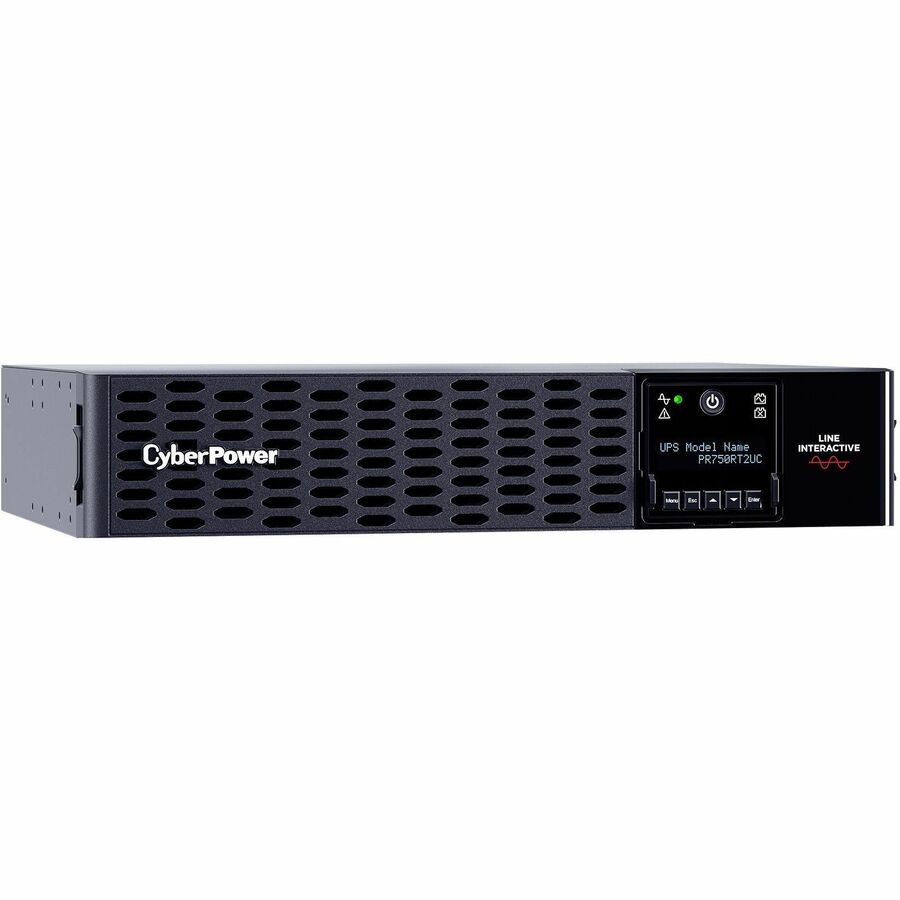

The PR750RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

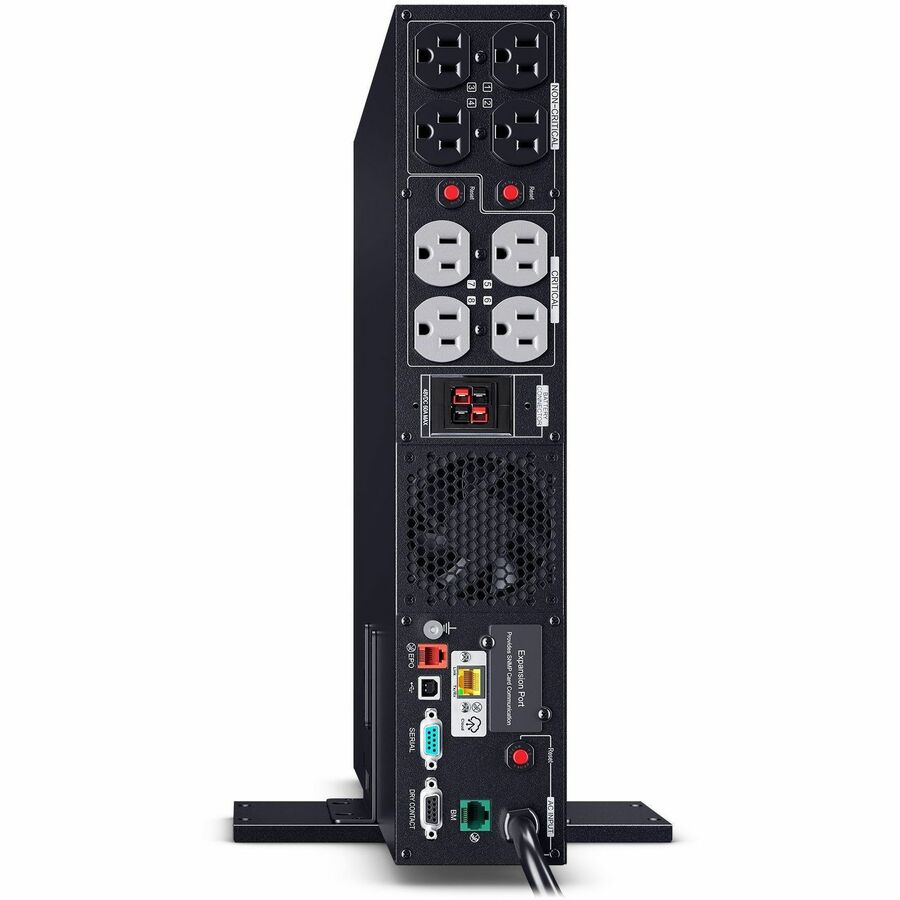

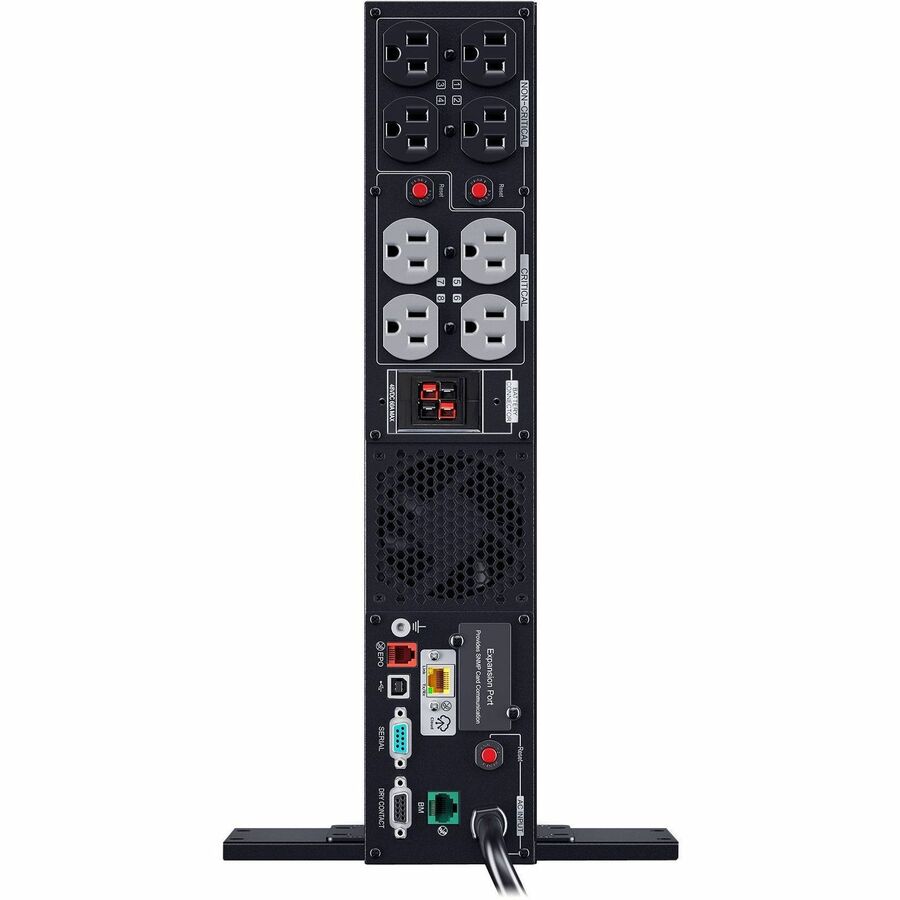

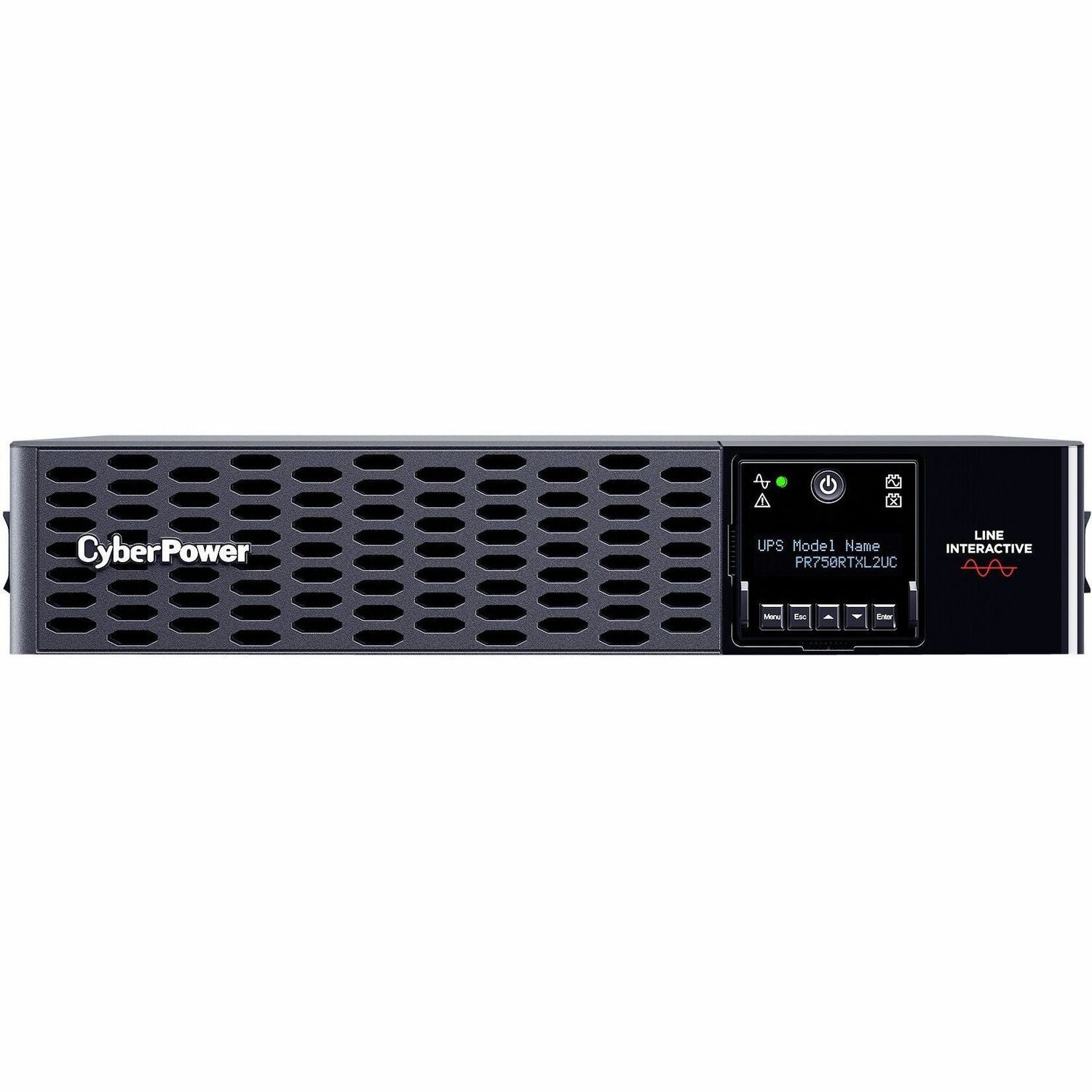

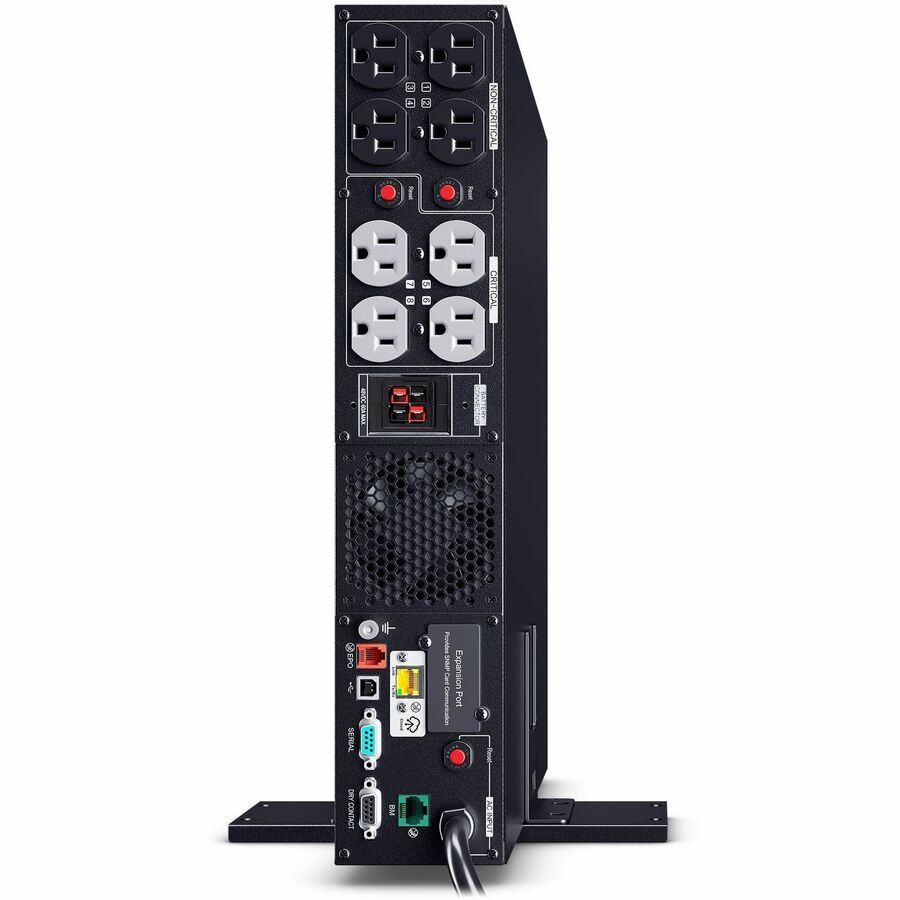

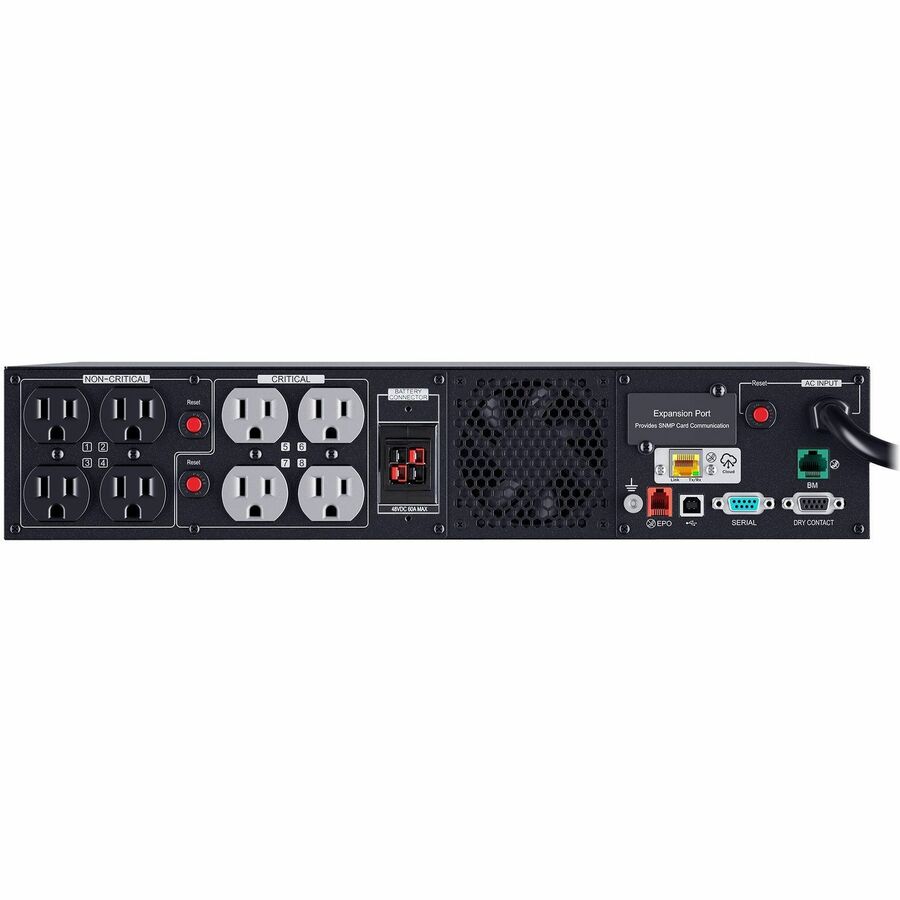

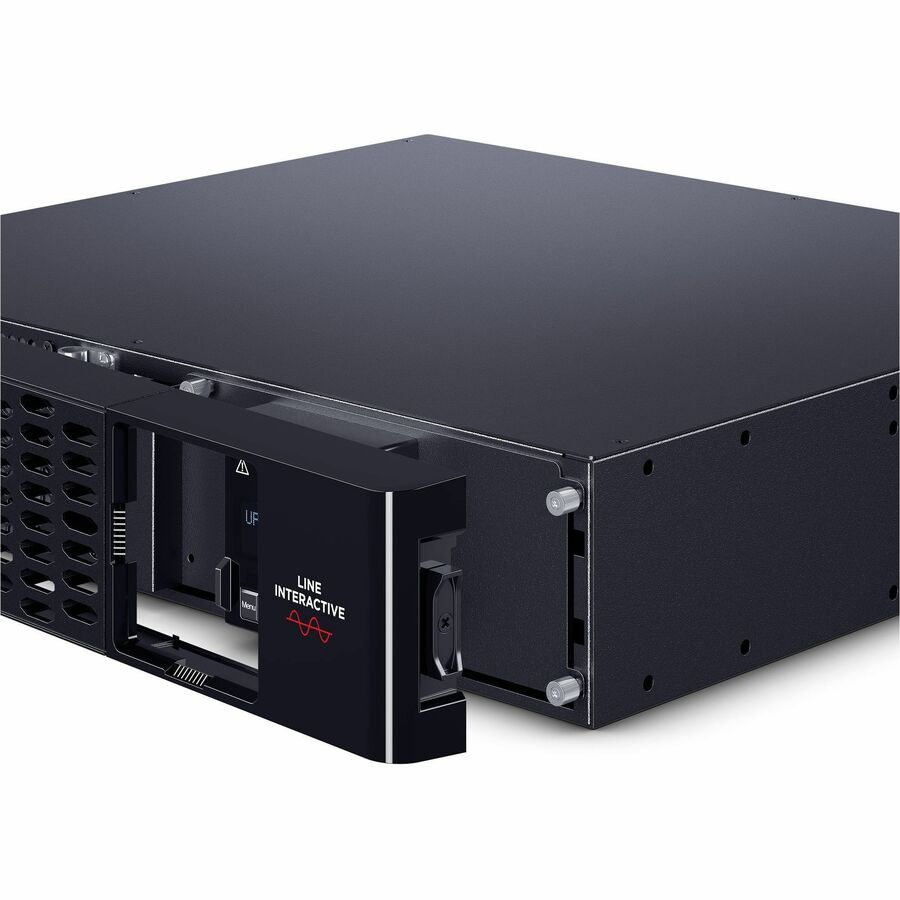

The Smart App Sinewave PR750RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR750RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoiring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR750RTXL2UC.
- Capacity: 750 VA / 750 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Runtime (half/full): 28 minutes / 11.3 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord

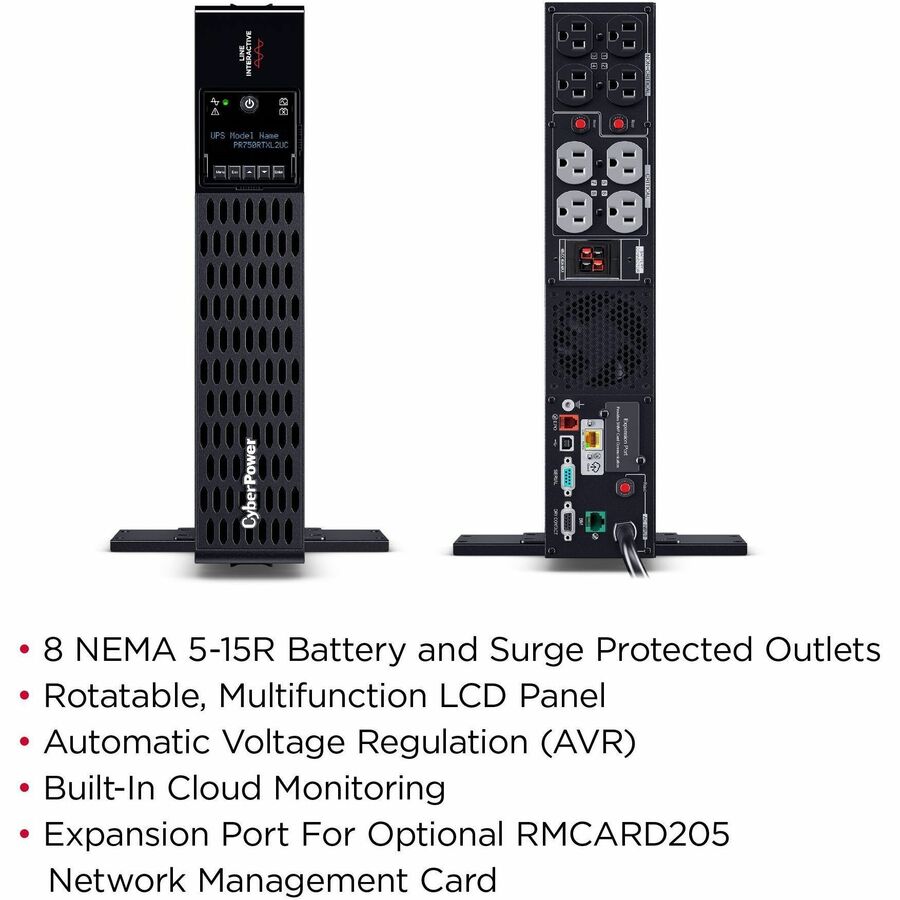

- Outlets: 8 surge + battery backup
- Outlet types: 8 � NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205. Includes built-in cloud
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® qualified: Yes
Additional information
| Weight | 56.3000 lbs |
|---|---|

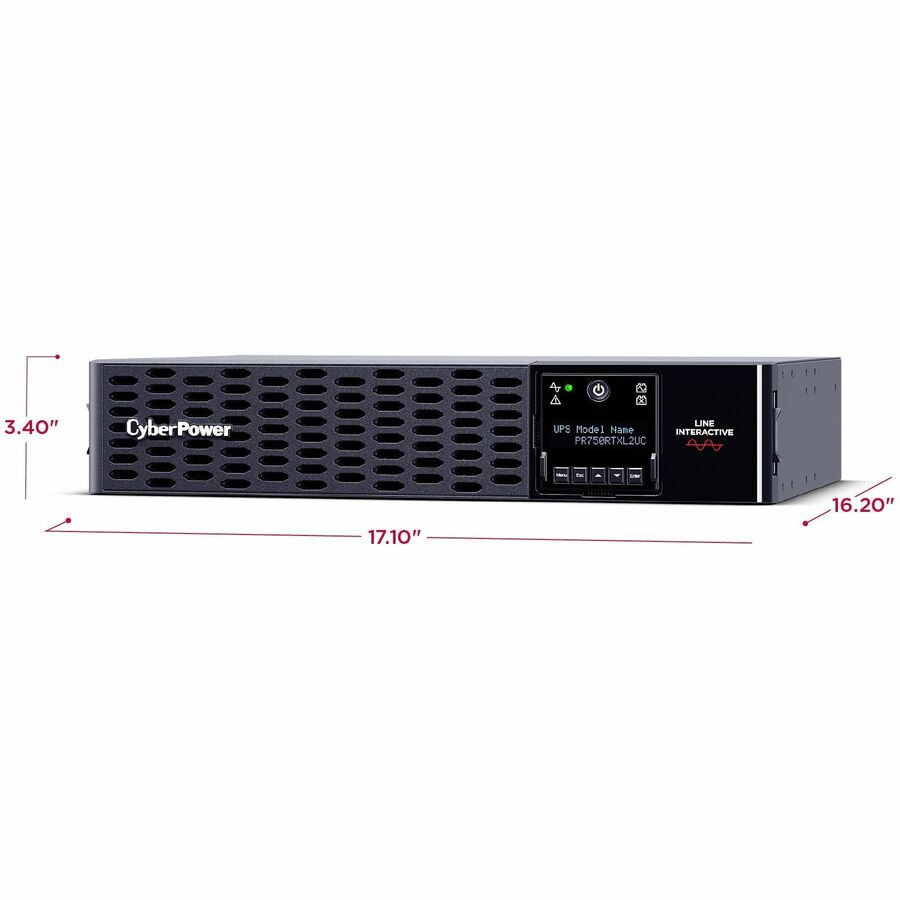

| Dimensions | 16.20 × 20.80 × 10.50 in |
| Maximum Storage Elevation | 49209.32 ft |
| Load Capacity | 750 VA/750 W |
| Network Management | SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact |
| Additional Warranty Informa | <p>Connected Equipment Guarantee: Lifetime</p> |
| Number of Critical Load Out | 4 |
| EMI/RFI Noise Filter | Yes |
| Receptacle Type | NEMA 5-15R |
| Storage Temperature | 5°F (-15°C) – 113°F (45°C) |
| Output Frequency | 60 Hz |
| Maximum Operating Temperatu | 104°F (40°C) |
| Battery Chemistry | Lead Acid |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Replaceable Battery | Yes |
| Product Type | Line-interactive UPS |
| Backup/Run Time (Full Load) | 11.30 Minute |
| Thermal Dissipation | 10.23 W |
| Product Model | PR750RTXL2UC |
| Maximum Operating Elevation | 9842.52 ft |
| Waveform Type | Sine Wave |
| Typical Battery Recharge Ti | 3 Hour |
| Battery Characteristics | Sealed |
| Serial Port | Yes |
| USB | Yes |
| Number of Batteries | 4 |
| Operating Humidity | 95% |
| Battery Size | 12V |
| Surge Energy Rating | 2430 J |
| Backup/Run Time (Half Load) | 28 Minute |
| Manufacturer Website Addres | |
| Display | LCD |
| Status Indicators | <p><b>LED Indicators:</b></p><ul><li> Power On</li><li> Line Mode</li><li> Battery Mode</li><li> Fault</li><li> Night Mode</li><li> Wiring Fault</li></ul> |
| Battery Capacity | 7000 mAh |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
| Input Voltage | 120 V AC |
| Rack Height | 2U |
| Length | 22" |
| Environmental Certification | GreenPower UPS,RoHS |
| Sound Emission (A-Weighted) | 52.5 dB(A) |
| Plug/Connector Type | NEMA 5-15P |
| Manufacturer | CyberPower Systems, Inc |
| Input Frequency | 63 Hz |
| Number of Battery & Surge O | 8 |
| Form Factor | Rack/Tower |
| Input Voltage Range | 70 V AC – 155 V AC |
| Overload Protection | Yes |
| EPO Port | Yes |
| Limited Warranty | 3 Year |
| Output Power Factor | 1 |
| Alarm | Battery Mode,Low Battery,Overload,Over-charge,Overheat |
| Product Line | Smart App Sinewave |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Energy Star | Yes |
| Application/Usage | Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate |
| Environmentally Friendly | Yes |
| Hot Swappable | Yes |
| Product Color | Black |
| Country of Origin | China |
| UPC | 0 |
| MPN | PR750RTXL2UC |
| Brand | CyberPower |
