Name: CyberPower PR3000RTXL2UHVAN New Smart App Sinewave UPS Systems
SKU: SY5588024

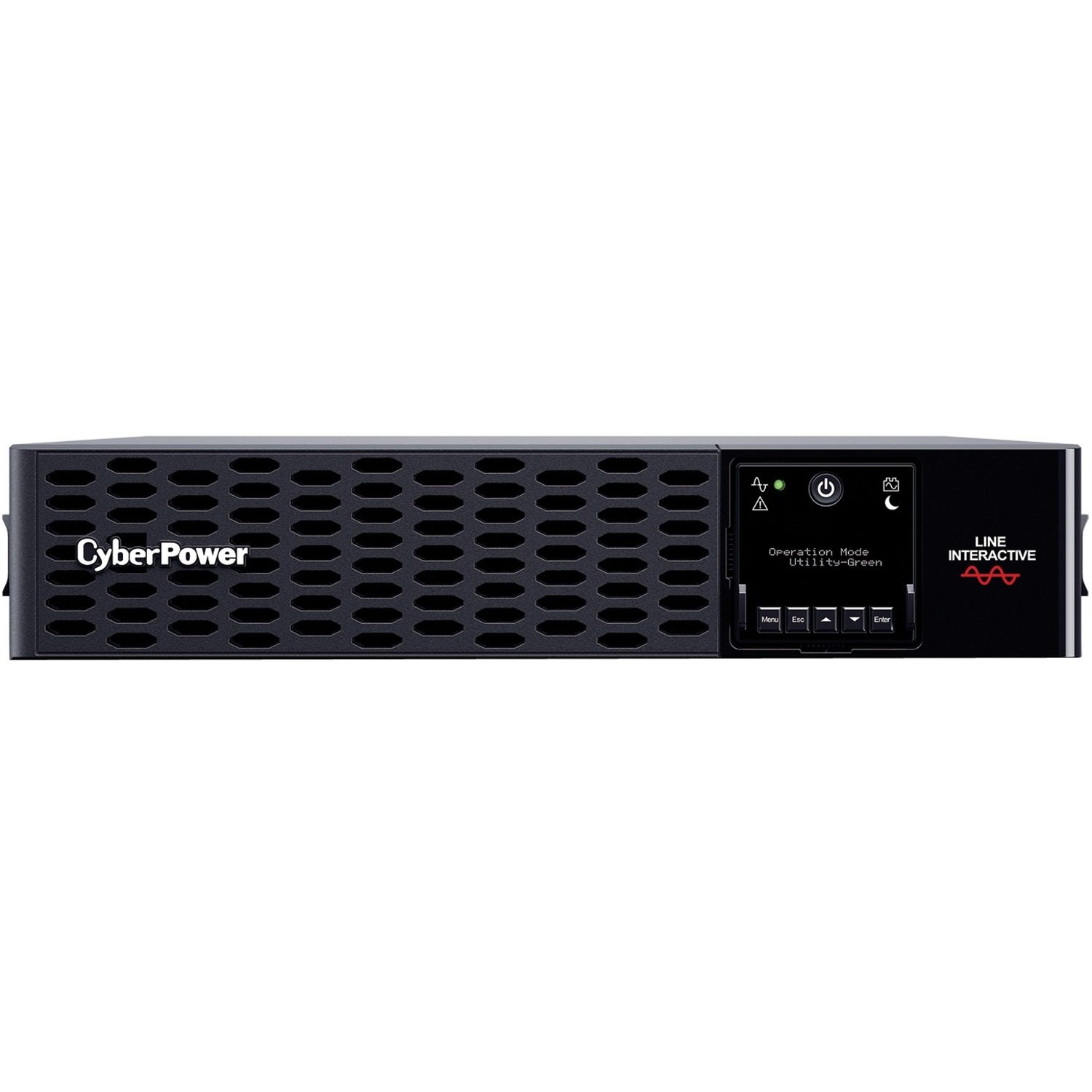

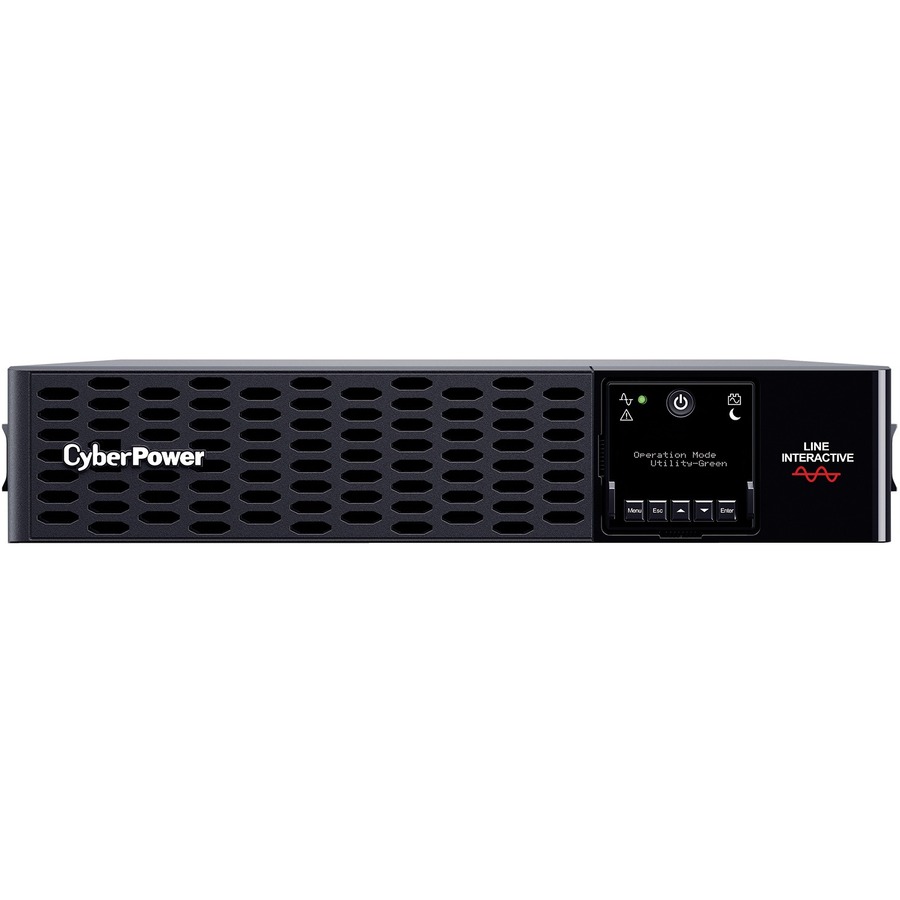

The PR3000RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR3000RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR3000RTXL2UHVAN.

Additional information

Weight	87.5000 lbs
Dimensions	24.80 × 17.10 × 3.40 in
Dataline Protection	RJ-45
Operating Humidity	0% – 95%
Number of Battery & Surge O	6
DC System Voltage	12 V DC
EMI/RFI Noise Filter	Yes
Storage Temperature	5°F (-15°C) – 113°F (45°C)
Output Frequency	60 Hz
Maximum Operating Temperatu	104°F (40°C)
Battery Chemistry	Lead Acid
AVR	Yes
USB (HID Compliant) Port	Yes
Replaceable Battery	Yes
Product Type	Line-interactive UPS
Output Voltage	200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Country of Origin	Philippines
Waveform Type	Sine Wave
Typical Battery Recharge Ti	3 Hour
Battery Characteristics	Sealed
Serial Port	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Battery Size	12V
Surge Energy Rating	2430 J
Plug/Connector Type	NEMA L6-20P
Input Voltage	230 V AC
Manufacturer Website Addres	https://www.cyberpowersystems.com/
Input Voltage Range	131 V AC – 302 V AC
Transfer Time	4 ms
Rack Height	2U
Number of Critical Load Out	2

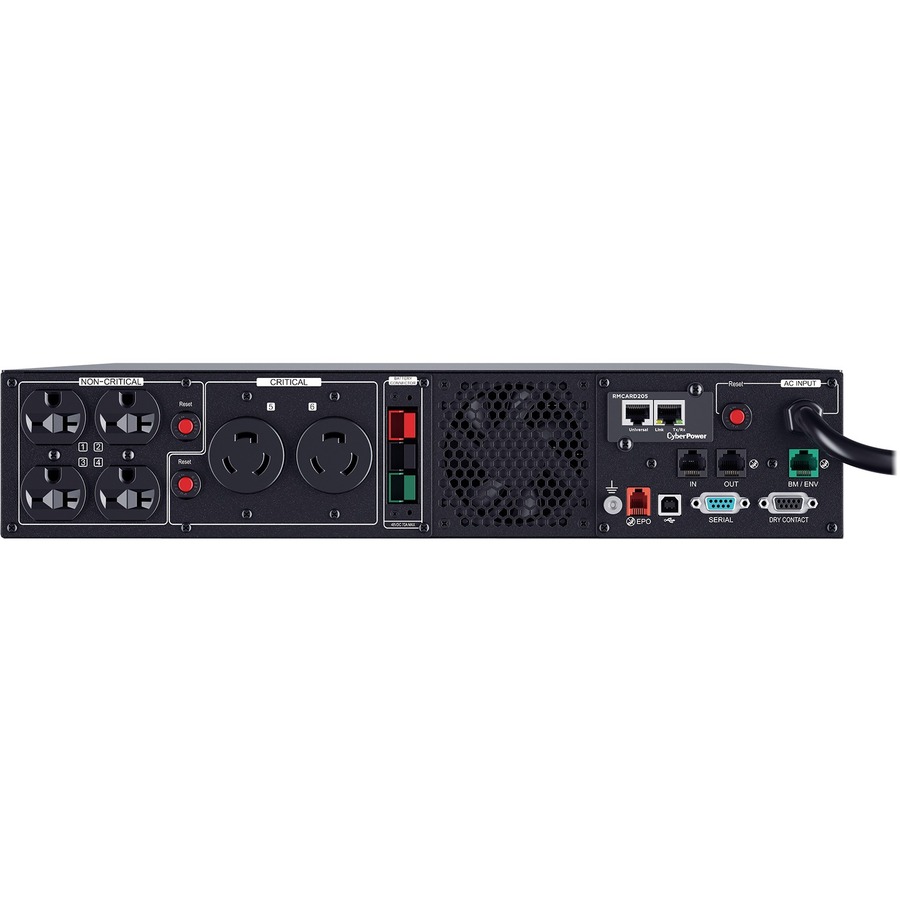

Receptacle Detail	4 x NEMA 6-20R,2 x NEMA L6-20R
Number of Batteries	8
Thermal Dissipation	35.20 W
Product Model	PR3000RTXL2UHVAN
Backup/Run Time (Half Load)	10.70 Minute
Receptacle Type	NEMA 6-20R,NEMA L6-20R
Status Indicators	<ul> <li>Multifunction LCD Panel</li> </ul> <b>LED Indicators:</b><br /> <ul> <li>Power on</li> <li>Line mode</li> <li>Battery mode</li> <li>Fault</li> <li>Night mode</li> </ul>
Product Series	New Smart App Sinewave UPS
Alarm	Battery Mode,Low Battery,Overload,Overheat,Over Charge
Network (RJ-45)	Yes
Load Capacity	3000 VA
Manufacturer	CyberPower Systems, Inc
Network Management	SNMP/HTTP Remote Monitoring
Product Condition	New
Input Frequency	63 Hz
Battery Capacity	6000 mAh
Form Factor	Rack/Tower
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Sound Emission (A-Weighted)	57.5 dB(A)
Overload Protection	Yes
EPO Port	Yes
Limited Warranty	3 Year
Backup/Run Time (Full Load)	3.60 Minute
Energy Star	Yes
Environmentally Friendly	Yes
Product Color	Black
UPC	0
MPN	PR3000RTXL2UHVAN
Brand	CyberPower
