Name: CyberPower OL2200RTXL2U Smart App Online UPS Systems
SKU: IMS9GM215

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

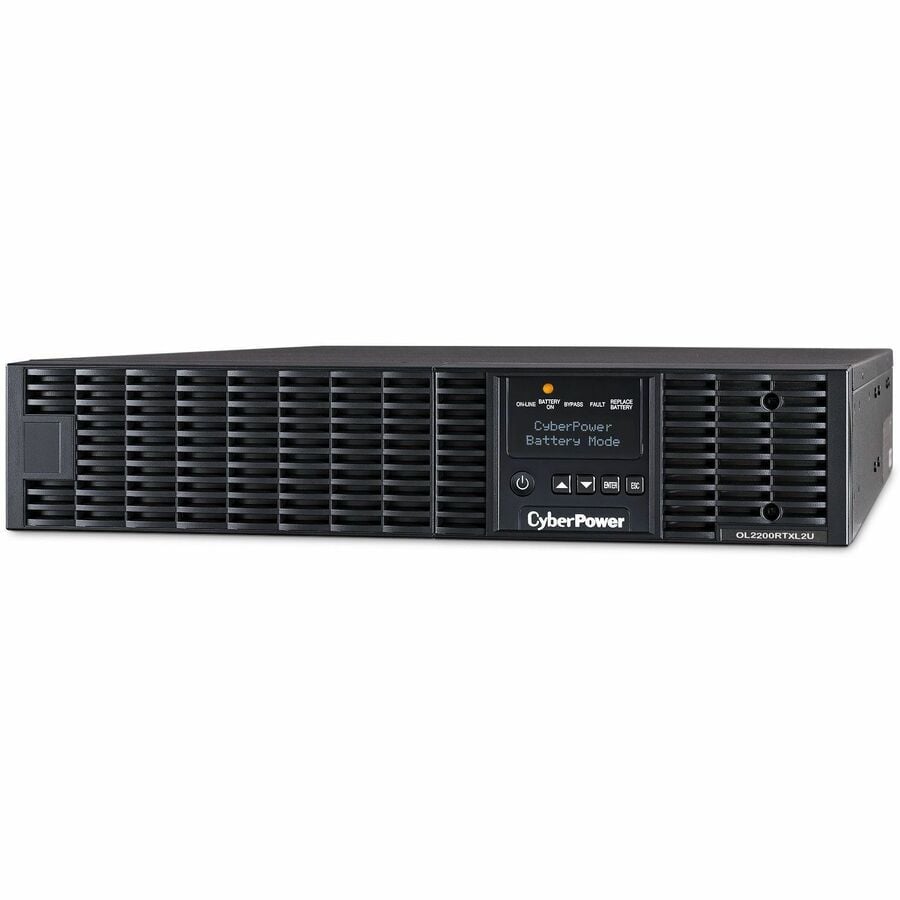

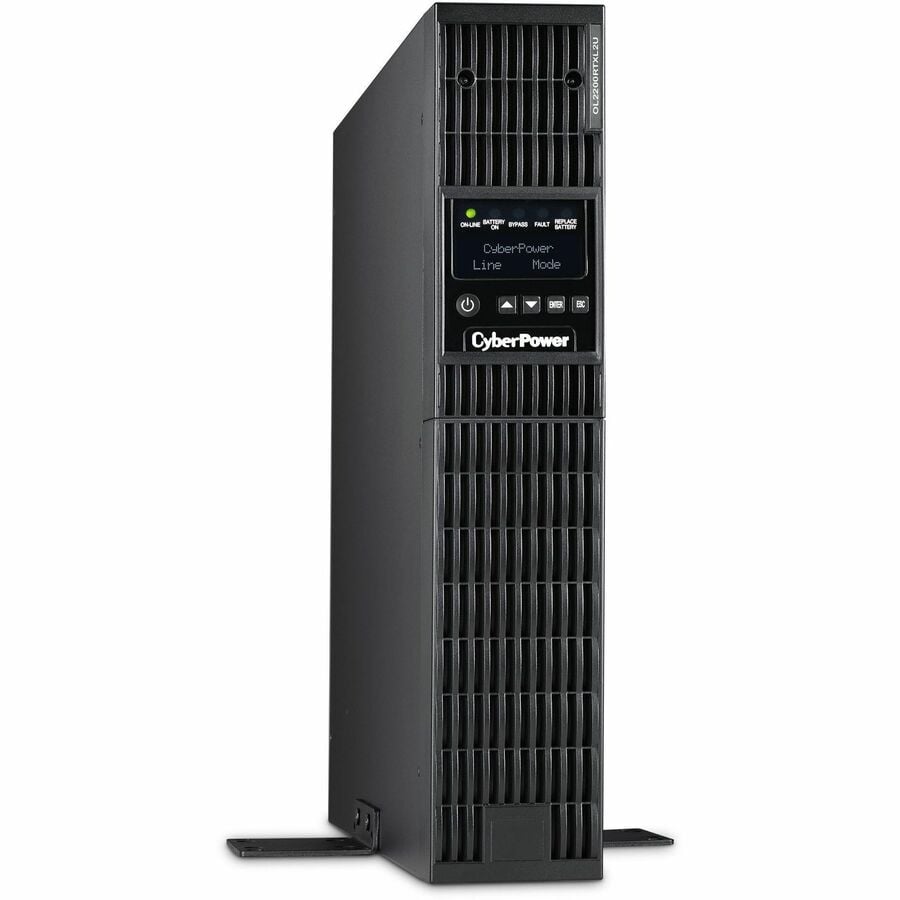

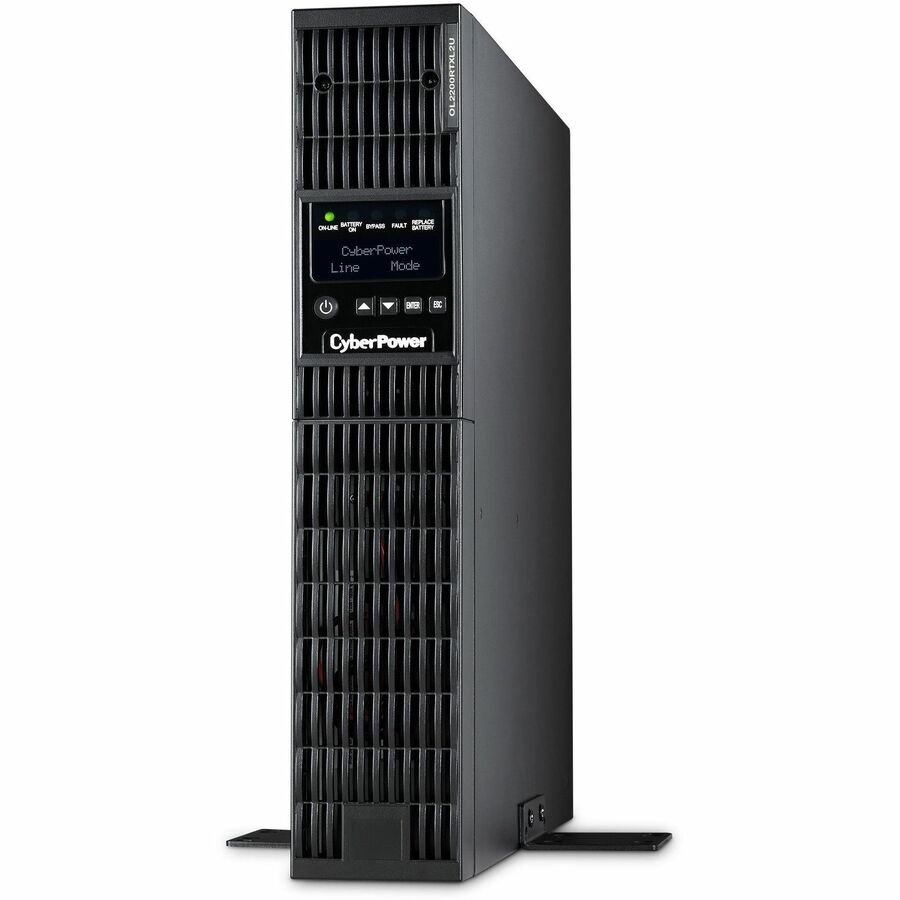

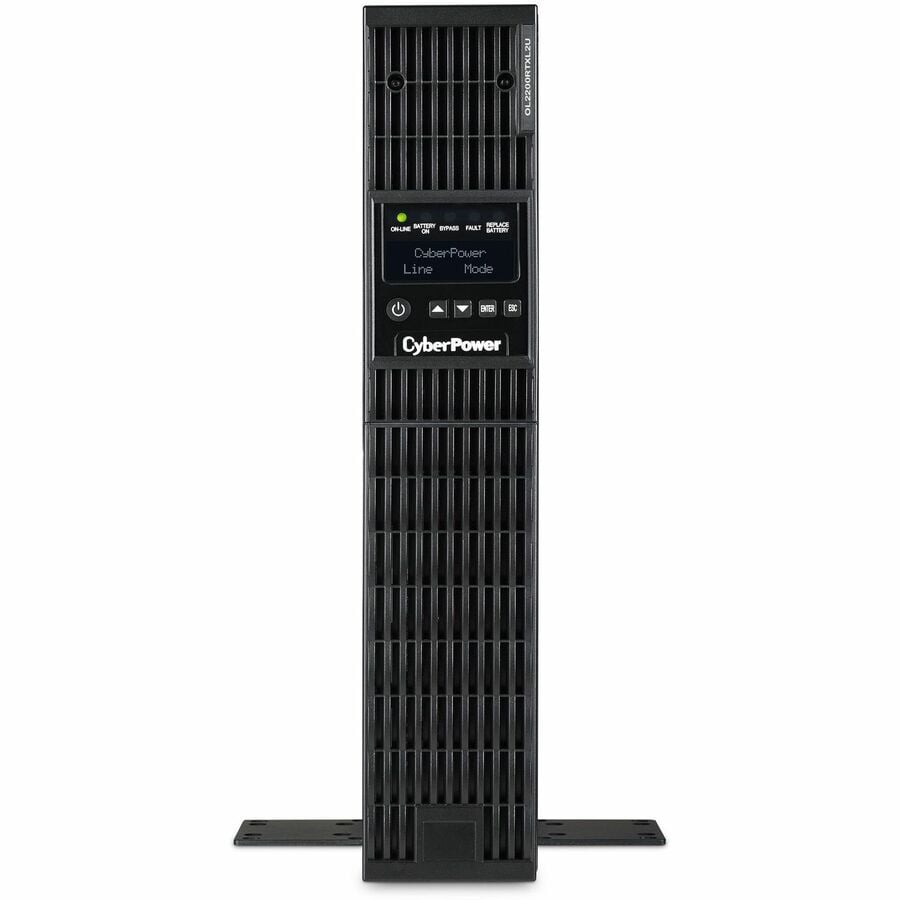

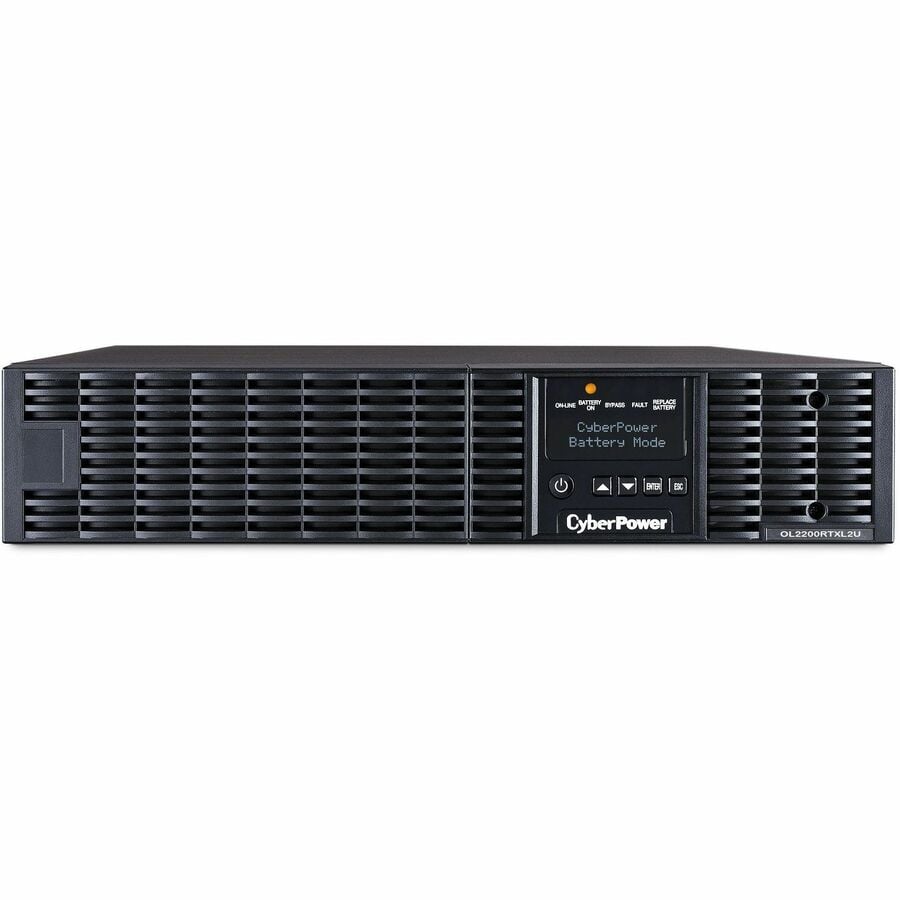

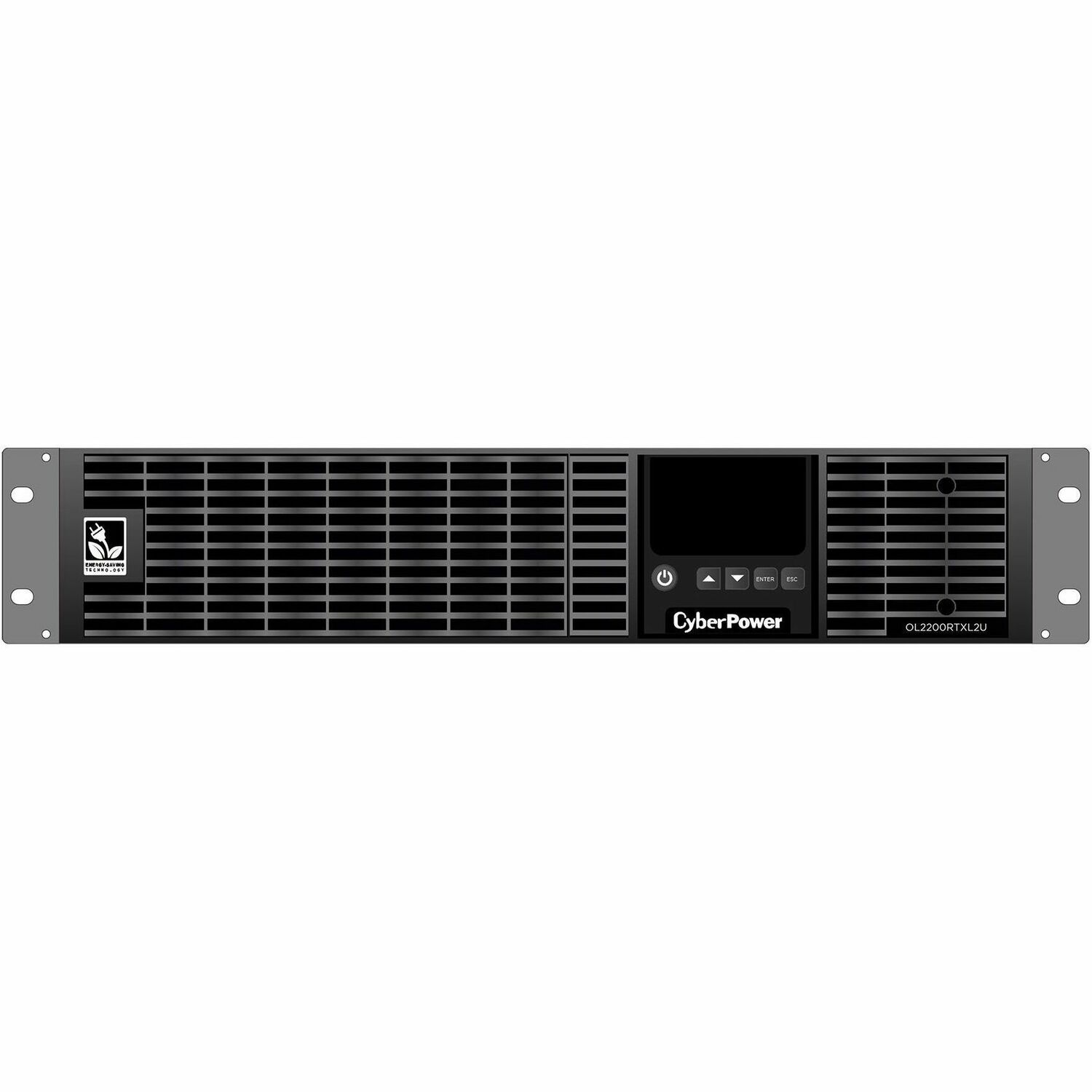

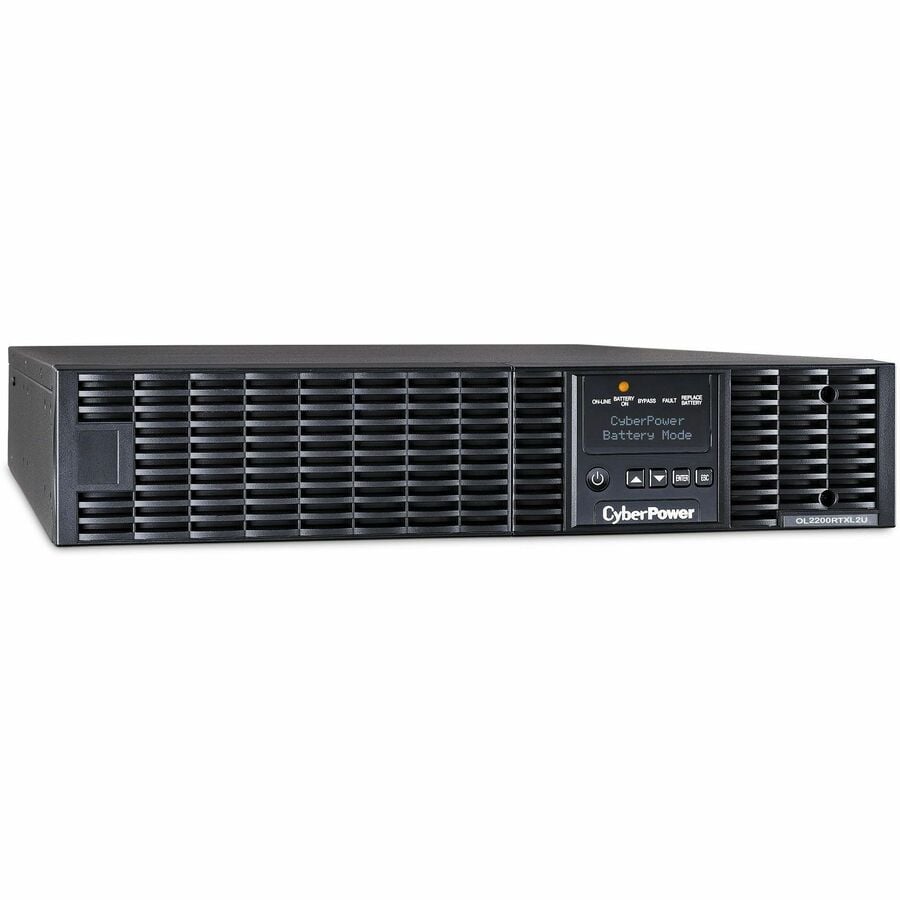

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a ,400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.

Additional information

Weight	68.2000 lbs

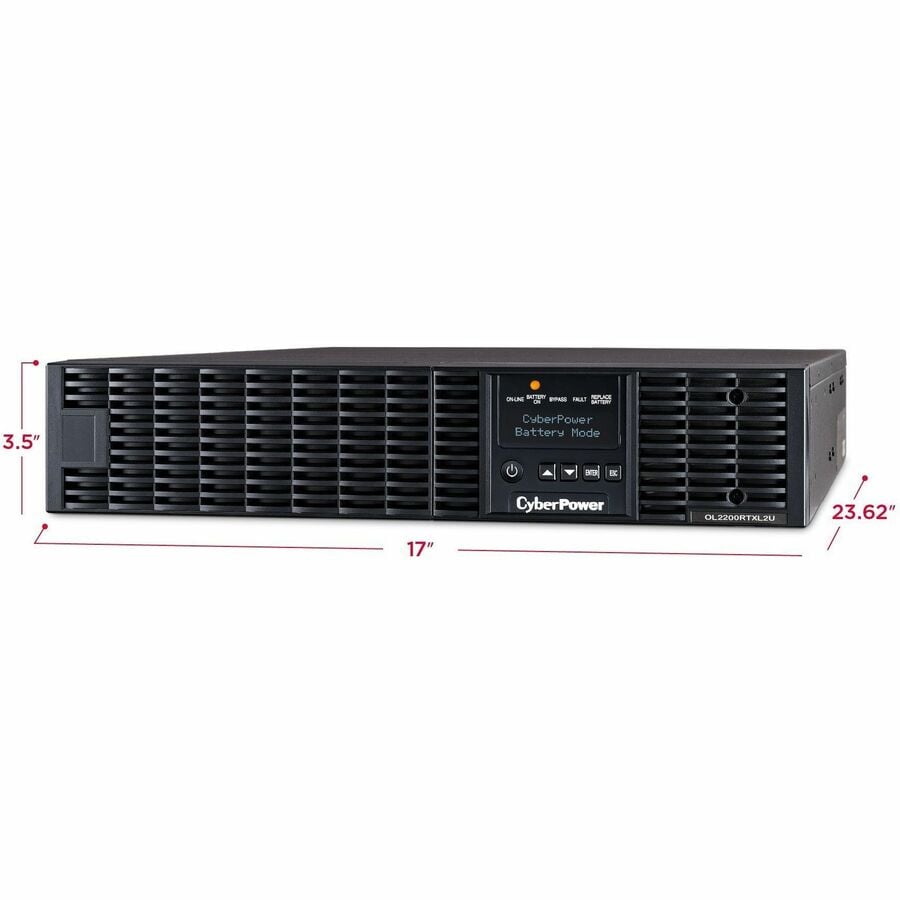

Dimensions	23.60 × 17.00 × 3.50 in
Typical Battery Recharge Ti	4 Hour
EMI/RFI Noise Filter	Yes
Output Frequency	60 Hz
Maximum Operating Temperatu	104°F (40°C)
Battery Chemistry	Lead Acid
USB (HID Compliant) Port	Yes
Input Frequency	70 Hz
Input Voltage Range	100 V AC – 125 V AC
Battery Characteristics	Maintenance-free/Sealed
Transfer Time	0 ns
Waveform Type	Sine Wave
Software Included	PowerPanel® Business
Dataline Protection	RJ-45,RJ-11
Serial Port	Yes
Battery Size	12V
Storage Relative Humidity	0% – 95%
Plug/Connector Type	NEMA 5-20P
Manufacturer Website Addres	https://www.cyberpowersystems.com/
Input Voltage	120 V AC
Rack Height	2U
Load Capacity (VA)	2200 VA
Product Series	Smart App Online UPS
Manufacturer	CyberPower Systems, Inc
Network Management	SNMP/HTTP Remote Monitoring
Energy Star	No

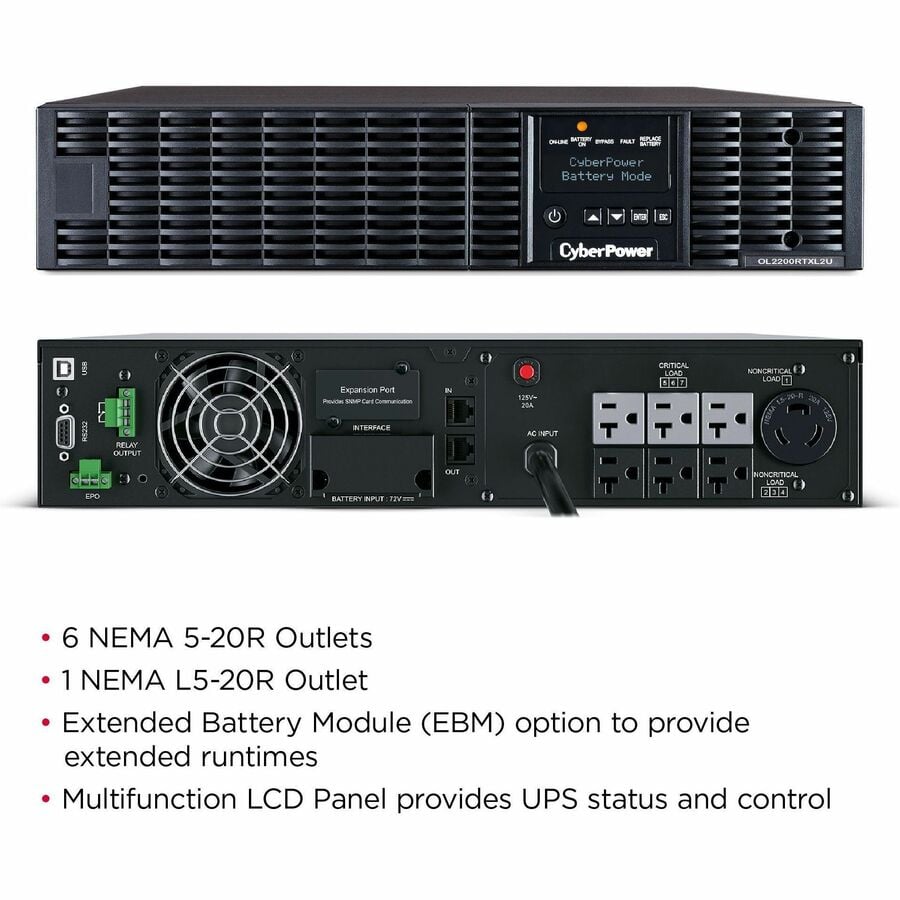

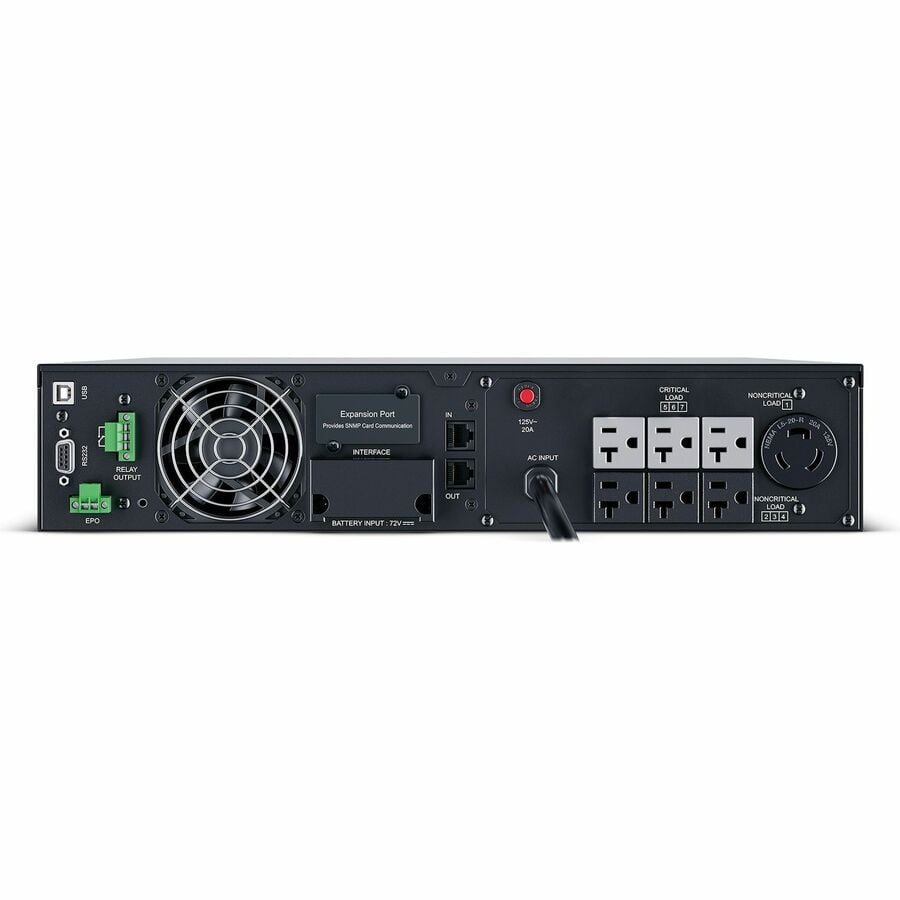

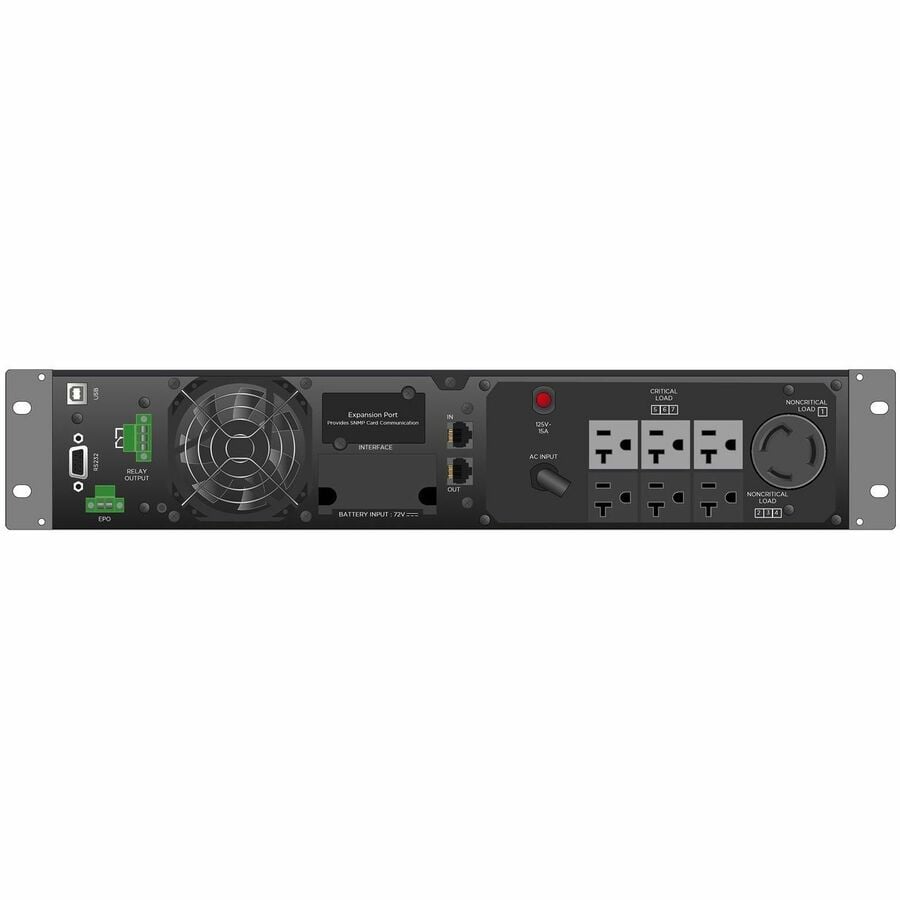

Receptacle Detail	6 x NEMA 5-20R,1 x NEMA L5-20R
Output Voltage	100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
Receptacle Type	NEMA 5-20R,NEMA L5-20R
Storage Temperature	-4°F (-20°C) – 113°F (45°C)
Battery Capacity	9000 mAh
Product Model	OL2200RTXL2U
Thermal Dissipation	158.55 W
Number of Batteries	6
Package Contents	<ul> <li>Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS </li> <li>User Manual</li> <li>Registration card</li> <li>2 x Rackmount rails</li> <li>2 x Hanging brackets</li> <li>2 xRackmount ears</li> <li>USB communication cable</li> <li>Serial interface cable (RS-232)</li> <li>8 x M5X7L black flat head screws</li> <li>12 x M5X12L black pan head screws</li> <li>6 x M5X6L silver pan head screws</li> <li>8 x Plastic washers</li> <li>12 x Screw hole dust covers</li> <li>12 x Rubber pads</li> <li>Software download card</li> </ul>
Status Indicators	<ul> <li>Power On (White)</li> <li>Line Mode (Green)</li> <li>Battery Mode (Yellow)</li> <li>Bypass Mode (Yellow)</li> <li>Fault (Red)</li> <li>Replace Battery (Red)</li> </ul>
Form Factor	Rack/Tower
Application/Usage	Mission Critical Equipment,Network Device,Storage Device,PBX System,VoIP Device,Server
Maximum Operating Elevation	10000 ft
Alarm	Battery Mode,Low Battery,Overload,UPS Fault
Surge Energy Rating	1335 J
Maximum Storage Elevation	50000 ft
Overload Protection	Yes
EPO Port	Yes
Limited Warranty	3 Year
Product Type	Double Conversion Online UPS
Energy Saving	ECO Mode Efficiency >95%
Environmental Certification	RoHS

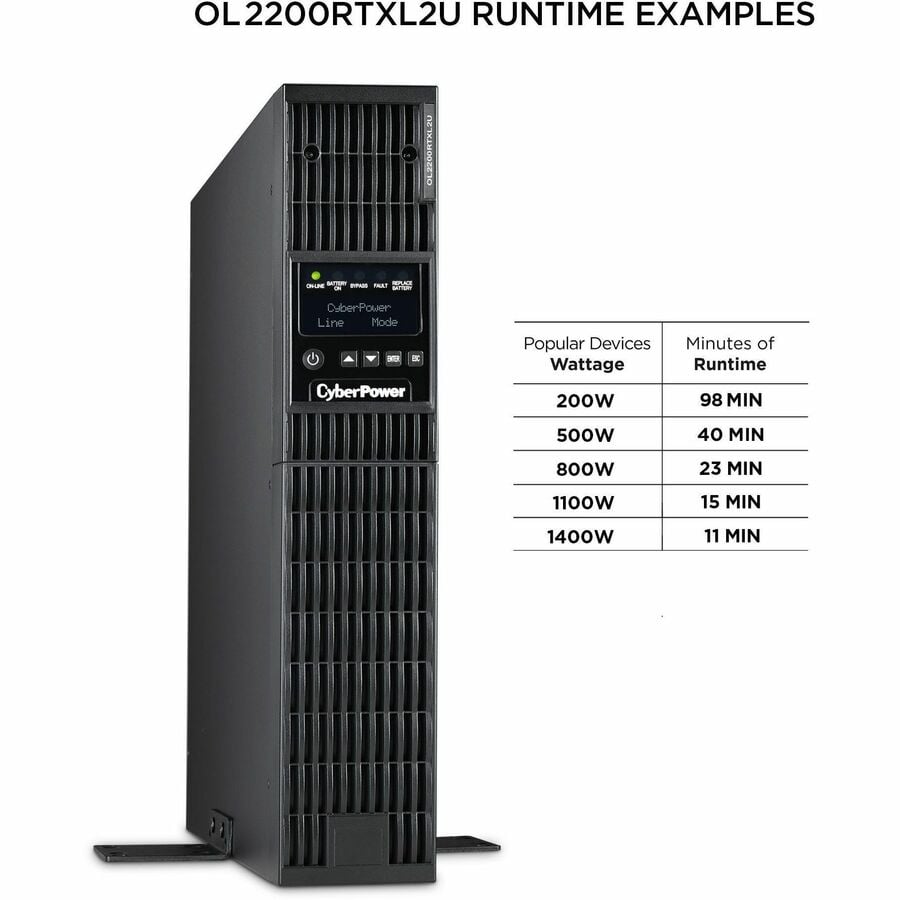

Backup/Run Time (Half Load)	20 Minute
Backup/Run Time (Full Load)	6.50 Minute
Environmentally Friendly	Yes
Product Color	Black
Country of Origin	China
UPC	0
MPN	OL2200RTXL2U
Brand	CyberPower
