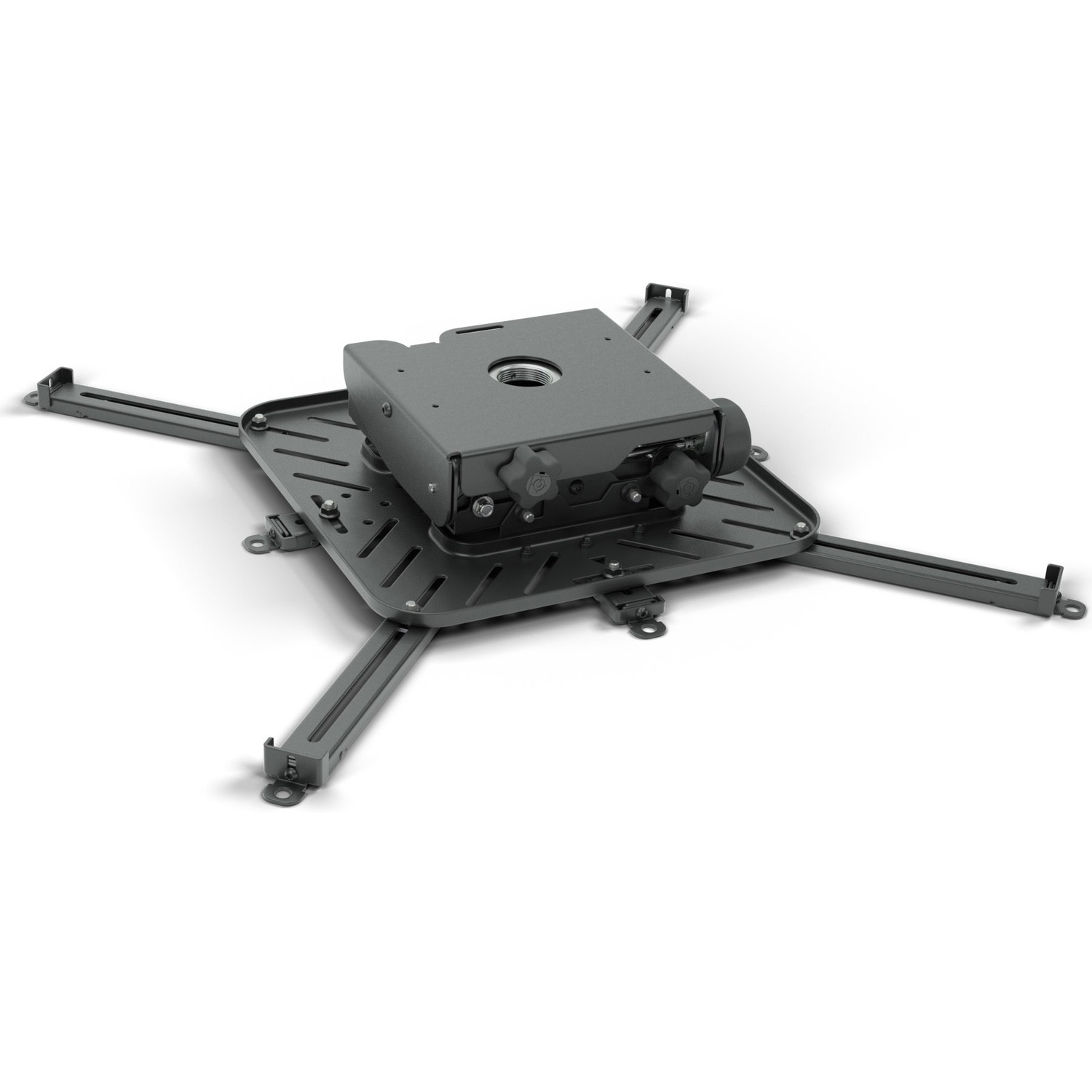

Chief X-Large Universal Tool-Free Projector Mount – Includes Universal Interface – Black

The VCTUB XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

Includes the HCUB Universal Interface.

• Low Profile
• The new VCT is 30% slimmer than the VCM mount
• Lightweight
• The new VCT is 25% lighter than the VCM mount
• Sleek Aesthetic
• Matching knobs & hardware
• Available in black and white finish options
• Tool-free MicroZone+ Pitch Adjustment
• The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
• Can be hand adjusted using the tool-free knob or driven with a 1/2″ (13mm) socket
• PrecisionSet™ technology to lock in pitch adjustments

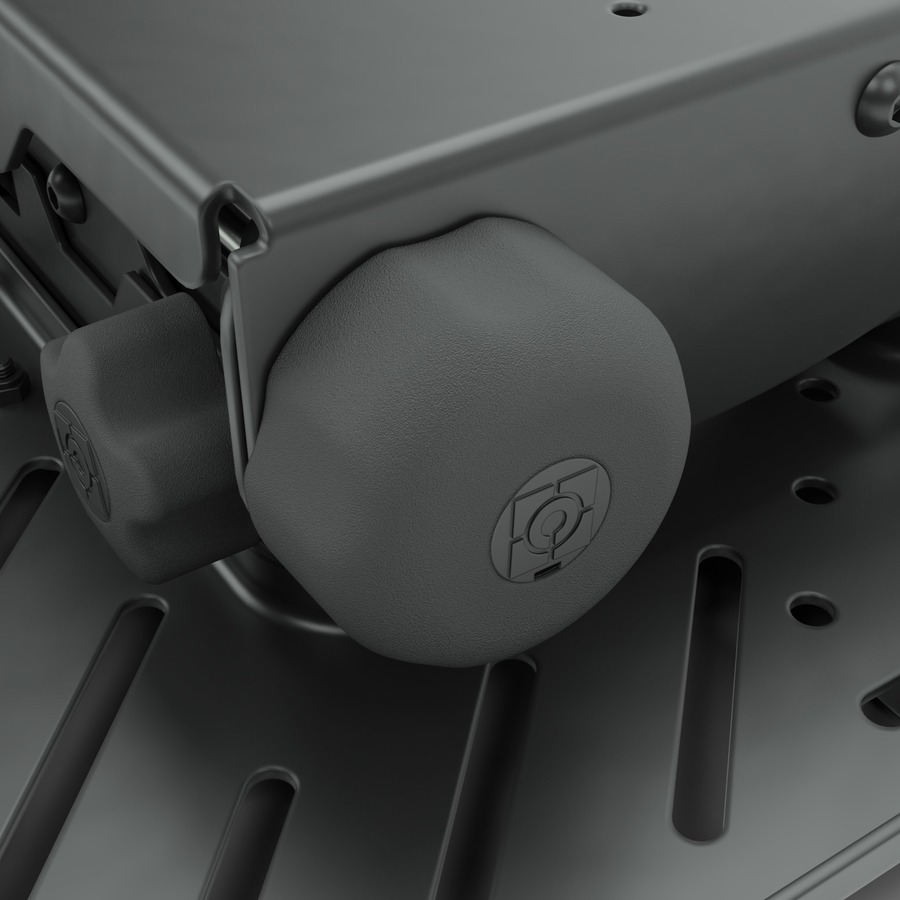

• Tool-free MicroZone™ Roll & Yaw Adjustments
• Gear driven tool-free knob adjustments
• Lockout nuts enable additional image lock security

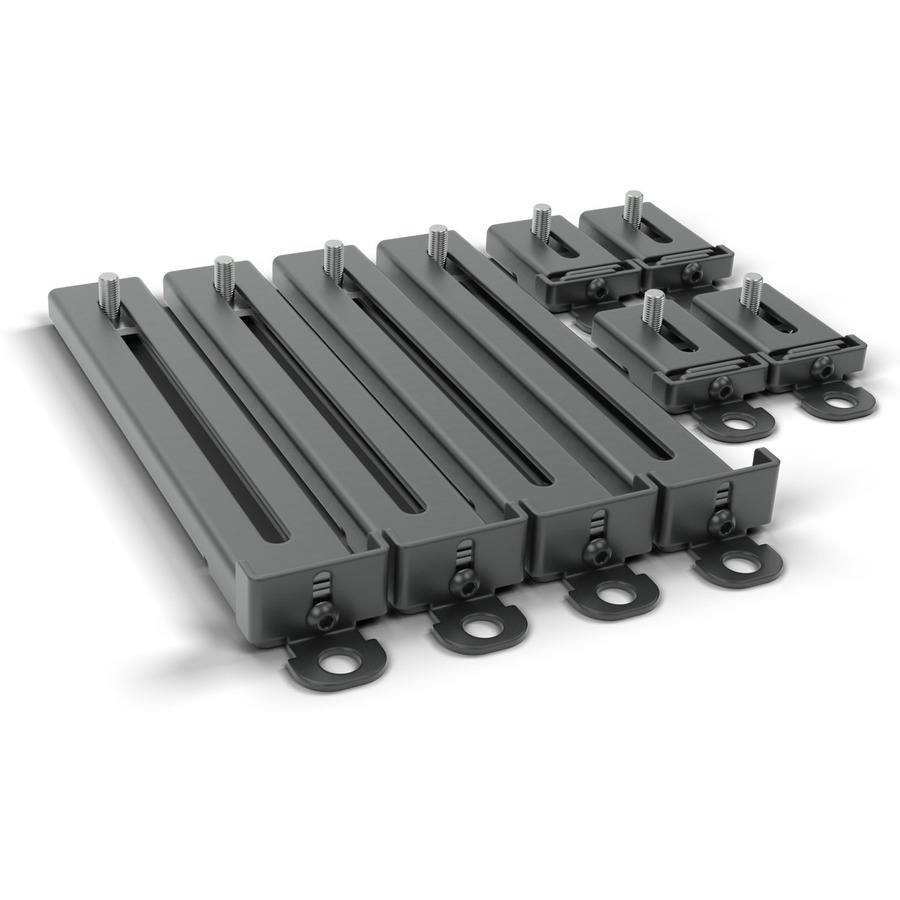

• New Universal Interface
• Universal plate is sized to accommodate most patterns within footprint
• Short attachment legs reduce clutter for smaller projector installation patterns
• Long attachment legs extend reach for larger projector installation patterns
• Custom interfaces also available
