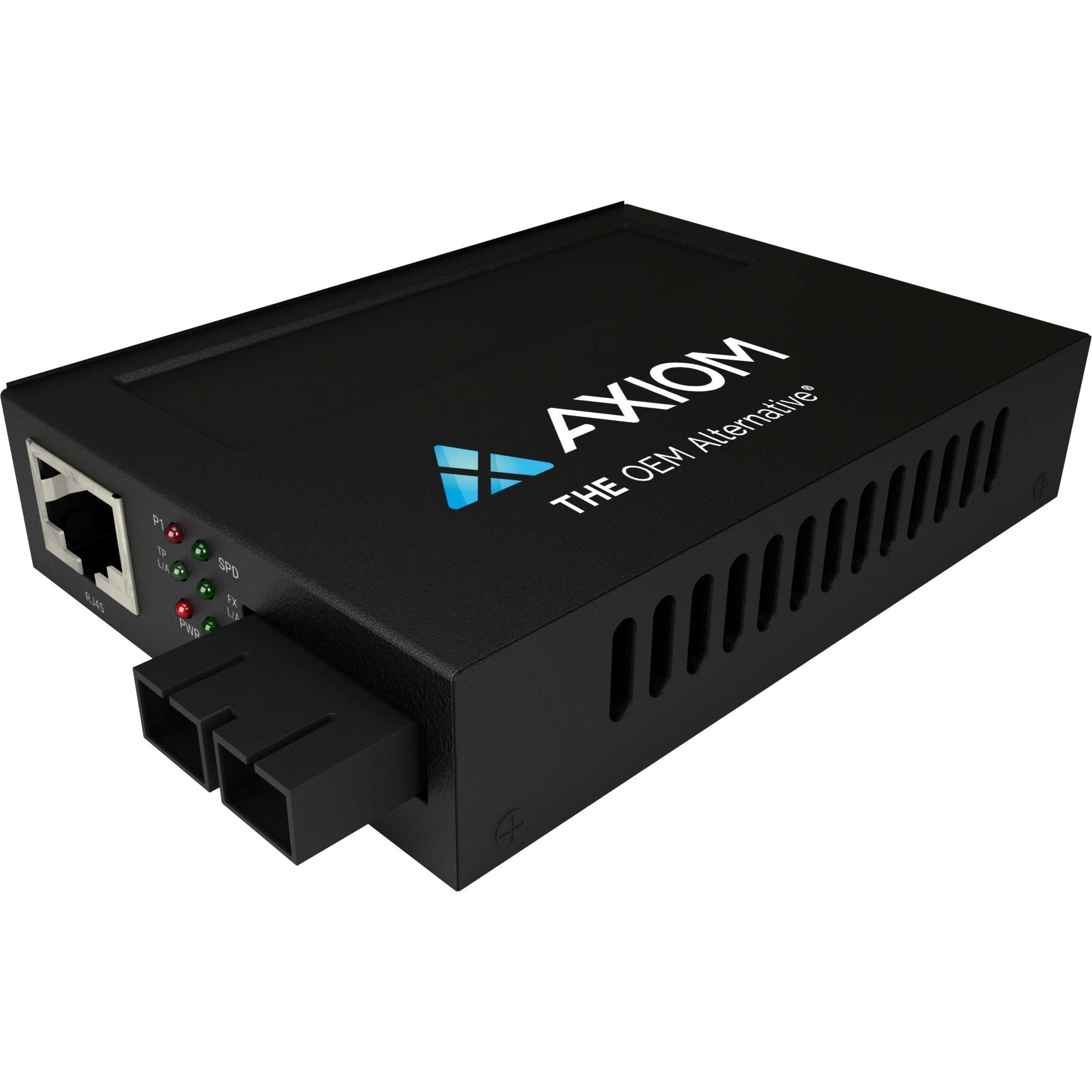

Axiom 100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter – SMF, SC, 10km,1310nm
Roll over image to zoom in
Login to View Prices
Features
The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100Base-TX UTP to 100Base-FX fiber media conversion
- IEEE802.3af PoE PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Expand your network capabilities with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 100Base-LX technology get up to 100Mbps data transfer rate over optical fiber cable
Additional information
| Weight | 1.1900 lbs |
|---|---|
| Dimensions | 1.57 × 5.51 × 4.33 in |
| Maximum Distance Supported | 6.21 Mile |
| PoE Port Type | PSE |
| Product Series | POE (PSE) |
| Network (RJ-45) | Yes |
| Power Source | AC/DC |
| Network Technology | 100BASE-LX |
| Limited Warranty | 1 Year |
| Manufacturer Website Addres | |
| Manufacturer | Axiom Memory Solutions |
| Total Number of Ports | 2 |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Product Type | Transceiver/Media Converter |
| Number of SC Ports | 1 |
| Ethernet Technology | Fast Ethernet |
| Number of PoE (RJ-45) Ports | 1 |
| UPC | 840177840258 |
| MPN | MCP31-F1-S3S10-AX |
| Brand | Axiom |
