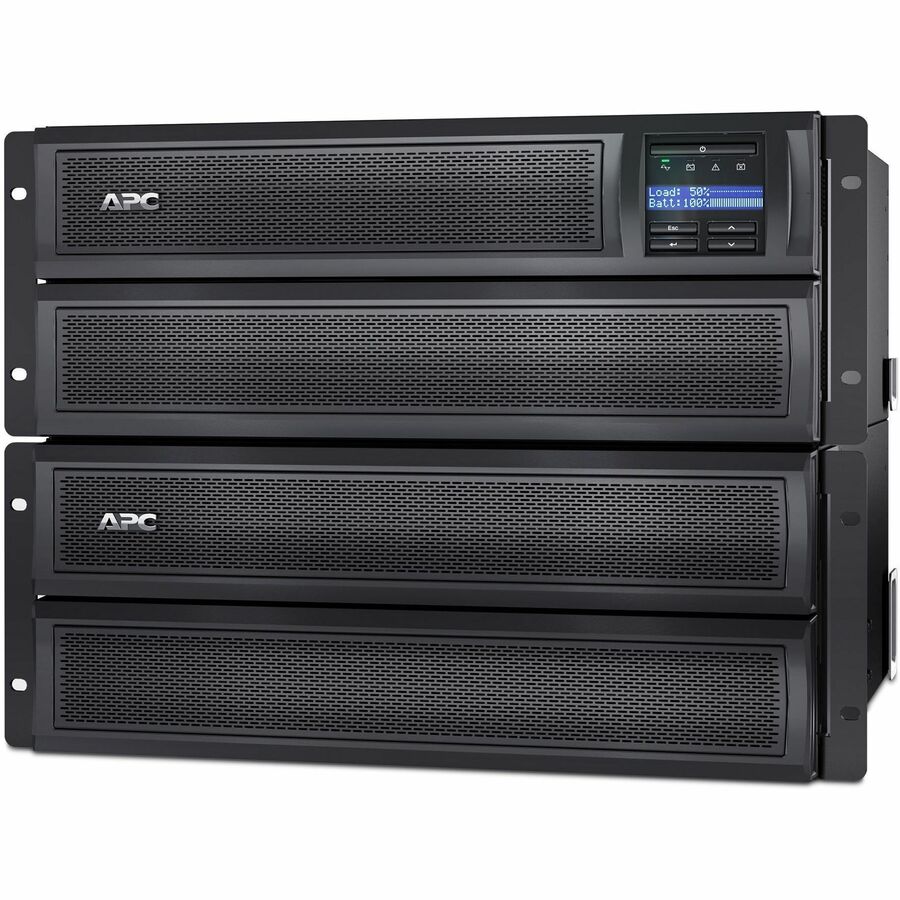

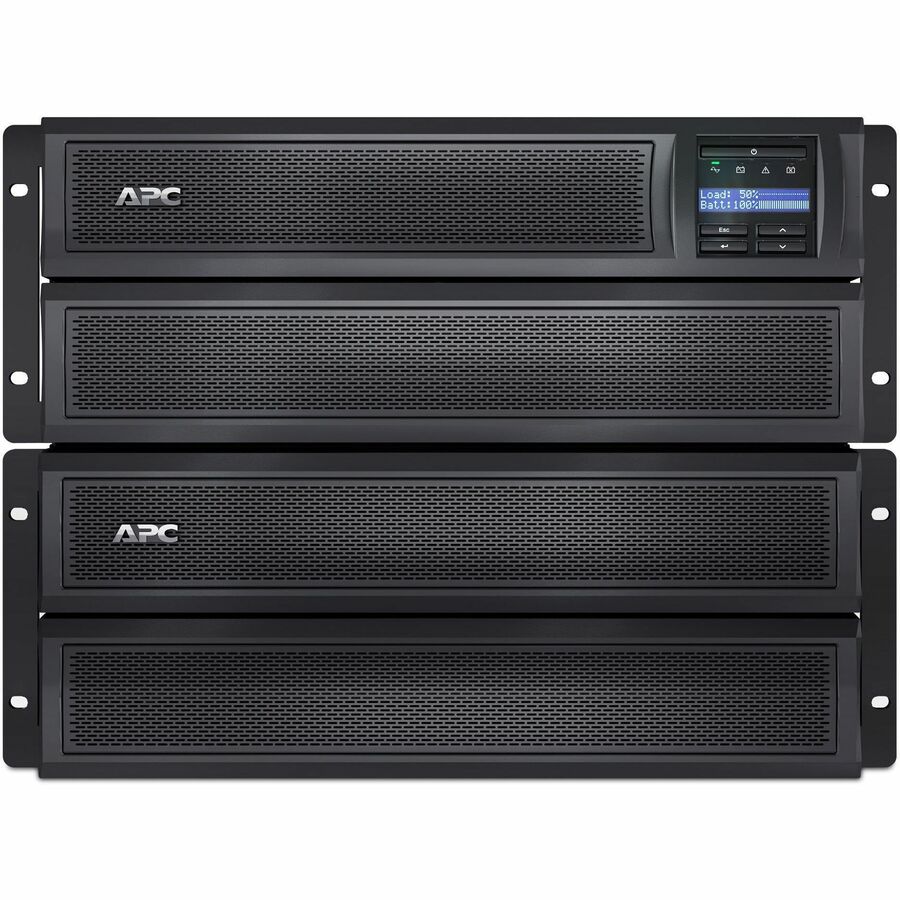

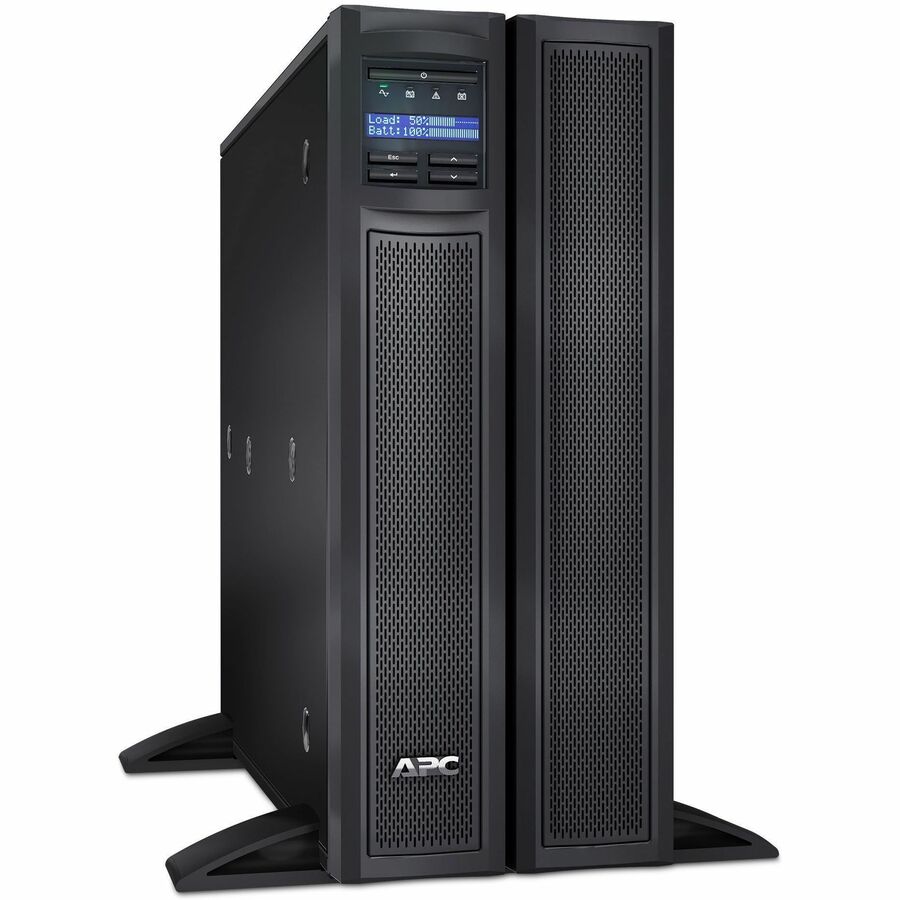

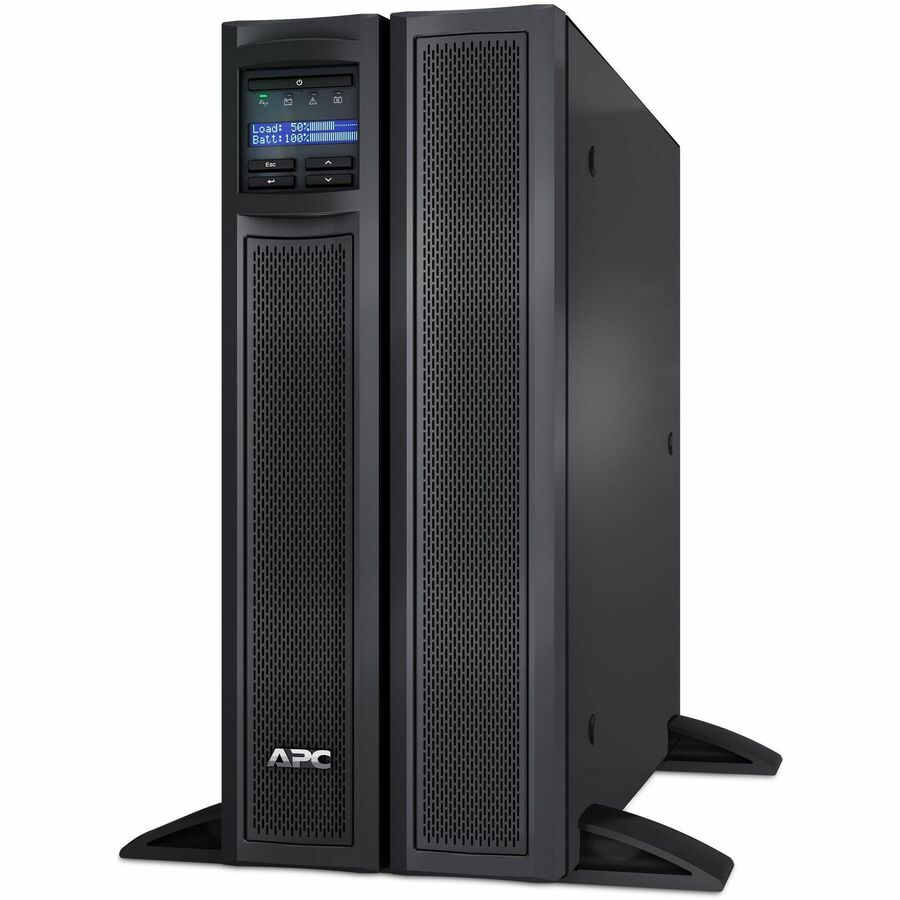

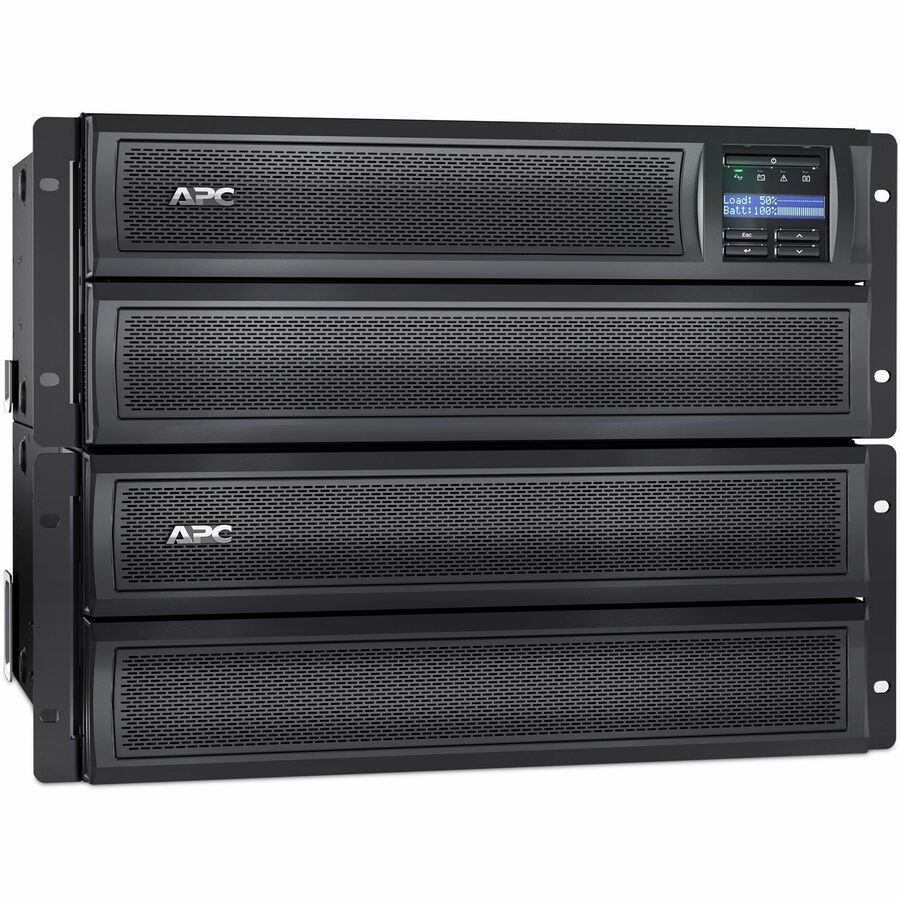

APC by Schneider Electric Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card

Login to View Prices

43 in stock

SKU: IMSRM5754 Categories: ,

Over 20 million units sold – the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS’s. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

More from the Manufacturer

  • Disconnected battery notification – Warns when a battery is not available to provide backup power.
  • Cold-start capable – Provides temporary battery power when the utility power is out.
  • Boost and Trim Automatic Voltage Regulation (AVR) – Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Battery failure notification – Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Automatic restart of loads after UPS shutdown – Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test – Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Auto recognition of external batteries – UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Audible alarms – Provides notification of changing utility power and UPS power conditions
  • Adjustable voltage-transfer points – Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity – Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Additional information

Weight 85.1900 lbs
Dimensions 19.00 × 7.00 × 17.00 in
Surge Energy Rating

540 J

Load Capacity (VA)

2880 VA

Battery Chemistry

Lead Acid

Product Type

Line-interactive UPS

Cord Length

8 ft

Backup/Run Time (Half Load)

18 Minute

Backup/Run Time (Full Load)

6 Minute

Additional Warranty Informa

3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available

Product Line

Smart-UPS

Waveform Type

Sine Wave

Typical Battery Recharge Ti

3 Hour

Input Current

15 A

Serial Port

Yes

USB

Yes

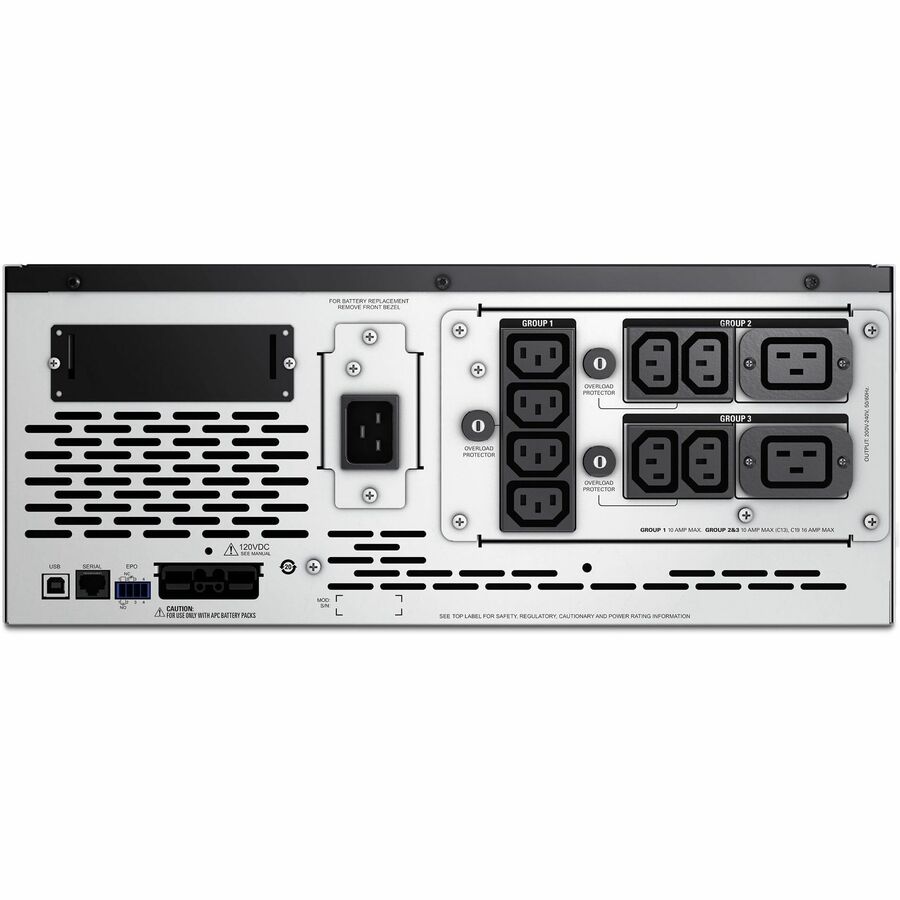

Receptacle Detail

1 x NEMA L5-30R,3 x NEMA 5-20R,6 x NEMA 5-15R

Receptacle Type

NEMA L5-30P

Number of Battery & Surge O

10

Rack Height

4U

Manufacturer

Schneider Electric SA

Manufacturer Website Addres

http://www.schneider-electric.com

Transfer Time

4 ms

Network Management

SNMP Manageable

Output Voltage

120 V AC

Input Voltage

120 V

Limited Warranty

3 Year

Form Factor

Rack-mountable

Plug/Connector Type

NEMA L5-30P

Package Contents

<li>Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card </li><li>CD with software</li><li>Documentation CD</li><li>Installation guide</li><li>Rack mounting brackets</li><li>Rack mounting hardware</li><li>Rack mounting support rails</li><li>Removable support feet</li><li>Smart UPS signalling RS-232 cable</li><li>USB cable</li><li>Web/SNMP management card</li>

Environmental Certification

RoHS

Load Capacity (Watt)

2700 W

Number of Batteries

1

Environmentally Friendly

Yes

Battery Characteristics

Spill-proof, Maintenance-free

Hot Swappable

Yes

Product Color

Black

UPC

0

MPN

SMX3000LVNC

Brand

APC by Schneider Electric
