Vertiv Liebert GXT5 UPS – 750VA/750W 120V | Online Rack Tower Energy Star
Login to View Prices

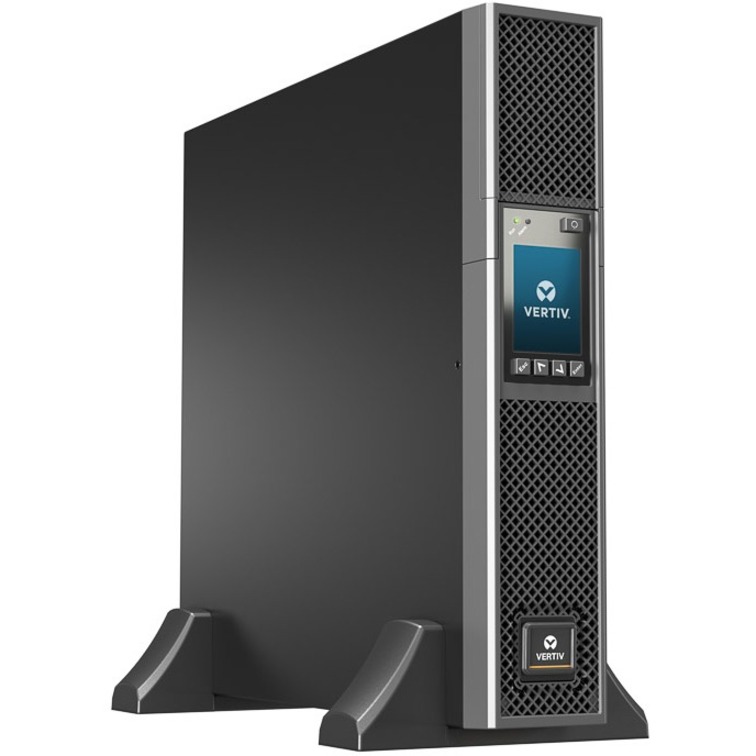

The Vertiv Liebert GXT5 UPS, with a capacity of 750VA/750W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
- Reliable, easy-to-manage power protection and battery backup with 750VA (750W) capacity.
- Highest power factor available on standard input connections.
- Four individual programmable output receptacle for device control and management for optimum battery usage.
- Its user-friendly interface includes color graphic display with gravity sensing feature.
- It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.
Additional information
| Weight | 37.0000 lbs |
|---|---|
| Dimensions | 15.70 × 16.90 × 3.40 in |
| Number of External Battery | 1 |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Maximum Operating Temperatu | 104°F (40°C) |
| Battery Chemistry | Lead Acid |
| USB (HID Compliant) Port | Yes |
| Input Frequency | 70 Hz |
| Maximum Operating Elevation | 9842.52 ft |
| Transfer Time | 0 ns |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Serial Port | Yes |
| Battery Size | 12V |
| Rack Height | 2U |
| Load Capacity (VA) | 750 VA |
| Form Factor | Rack/Tower |
| EPO Port | Yes |
| Load Capacity (Watt) | 750 W |
| Hot Swappable | Yes |
| Software Included | Free Download – Power Insight 2.2 |
| Backup/Run Time With Extern | 1.47 Hour |
| Environmental Sensors | Temperature Sensor,Humidity Sensor,Leak Detection Sensor |
| Input Voltage Range | 60 V AC – 150 V AC |
| User Selectable Output | <p><b>Typical 120V User Selectable Output: </b>110/115/120/125VAC (user-configurable); ±3%</p> |
| Package Contents | <ul> <li>GXT5 750VA 120V UPS</li> <li>4 Post Rack Mounting</li> <li>Tower Stand</li> <li>USB Cable</li> <li>User Guide</li> <li>Safety Instruction Manual</li> </ul> |
| Backup/Run Time (Half Load) | 21.50 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Storage Temperature | -4°F (-20°C) – 140°F (60°C) |
| Utility (AC) Mode Overload | <ul> <li>>200% for 250ms</li> <li>150- 200% for 50 seconds</li> <li>125- 150% for 60 seconds</li> <li>105-125% for 60 seconds</li> </ul> |
| Application/Usage | IT Equipment,Mission Critical Equipment |
| Status Indicators | Color LCD |
| Receptacle Detail | 6 x NEMA 5-15R |
| Waveform Type | Sine Wave |
| Typical Battery Recharge Ti | 3 Hour |
| Maximum Storage Elevation | 49212.60 ft |
| Number of Batteries | 3 |
| TAA Compliant | No |
| Product Series | GXT |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Website Addres | |
| Manufacturer | Vertiv |
| Cord Length | 10 ft |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA 5-15P |
| Input Current | 9 A |
| Battery Life | 5 Year |
| Limited Warranty | 3 Year |
| Energy Star | Yes |
| Product Type | Double Conversion Online UPS |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Country of Origin | China |
| UPC | 0 |
| MPN | GXT5-750LVRT2UXL |
| Brand | Liebert |
