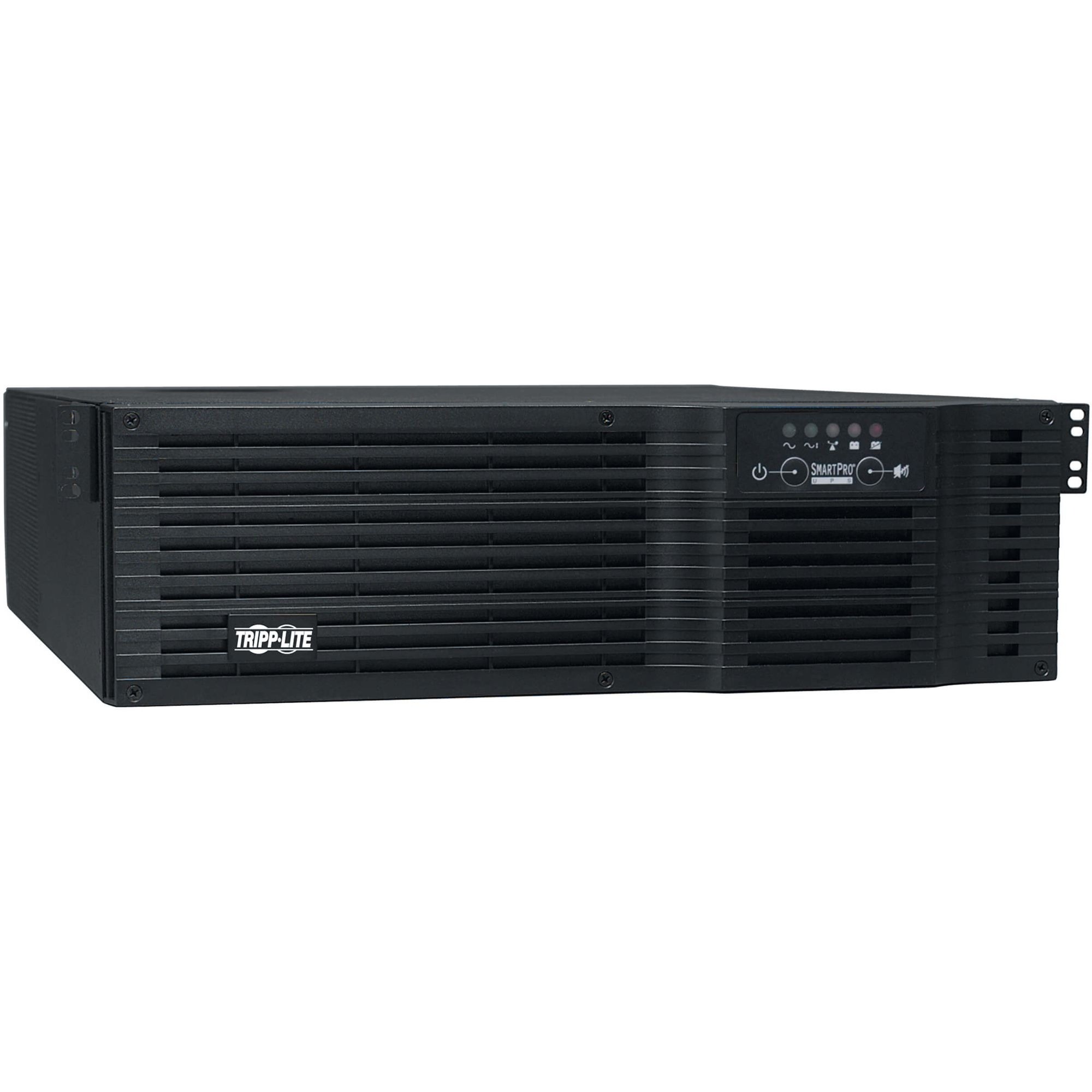

Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9
Login to View Prices
Tripp Lite’s dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
- 95% line-mode efficiency, 2 switched load banks
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- Maintains 120V output with 120V or 230V input, Sine wave output
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Additional information
| Weight | 104.2500 lbs |
|---|---|
| Dimensions | 25.30 × 17.50 × 5.30 in |
| Software Included | PowerAlert Software |
| Product Type | Line-interactive UPS |
| Manufacturer Website Addres | |
| Serial Port | Yes |
| USB | Yes |
| Product Line | SmartPro |
| Typical Battery Recharge Ti | 4.50 Hour |
| Transfer Time | 4 ms |
| Network Management | SNMP Manageable |
| Form Factor | Rack/Tower |
| Input Current | 16 A |
| Receptacle Detail | 4 x NEMA 5-15/20R,4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15/20R,NEMA 5-15R |
| Backup/Run Time (Half Load) | 30 Minute |
| Product Model | SM2200RMDVTAA |

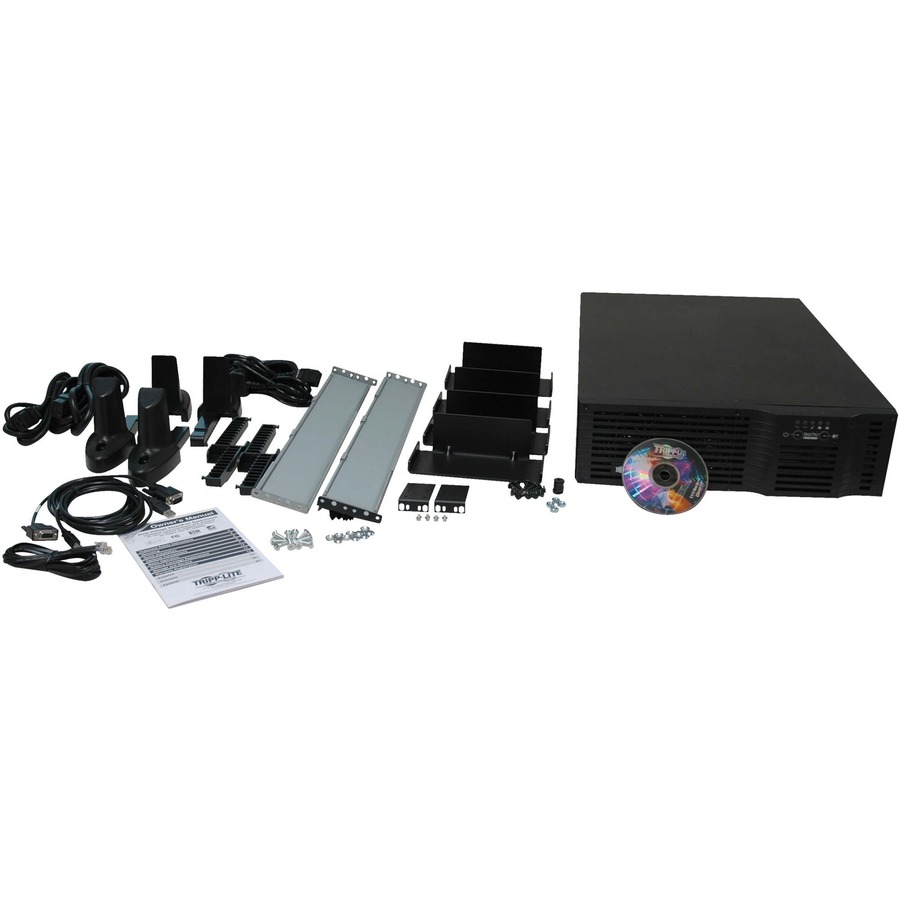

| Package Contents | <ul><li>SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS</li><li>5 x International Input Power Cables</li><li>USB Cable</li><li>Serial Cable</li><li>EPO Cable</li><li>PowerAlert Software CD</li><li>Tower Stand Kit</li><li>4 Post 19 inch Rackmount Mounting Kit</li><li>2 Post 19 inch Rackmount Mounting Kit</li><li>User Manual</li></ul> |
| Hot Swappable | Yes |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 120 V AC |
| TAA Compliant | Yes |
| Rack Height | 3U |
| Country of Origin | Taiwan |
| Backup/Run Time (Full Load) | 12 Minute |
| Manufacturer | Tripp Lite by Eaton |
| Limited Warranty | 2 Year |
| Load Capacity | 2200 VA/1920 W |
| Environmentally Friendly | Yes |
| UPC | 0 |
| MPN | SM2200RMDVTAA |
| Brand | Tripp Lite by Eaton |
