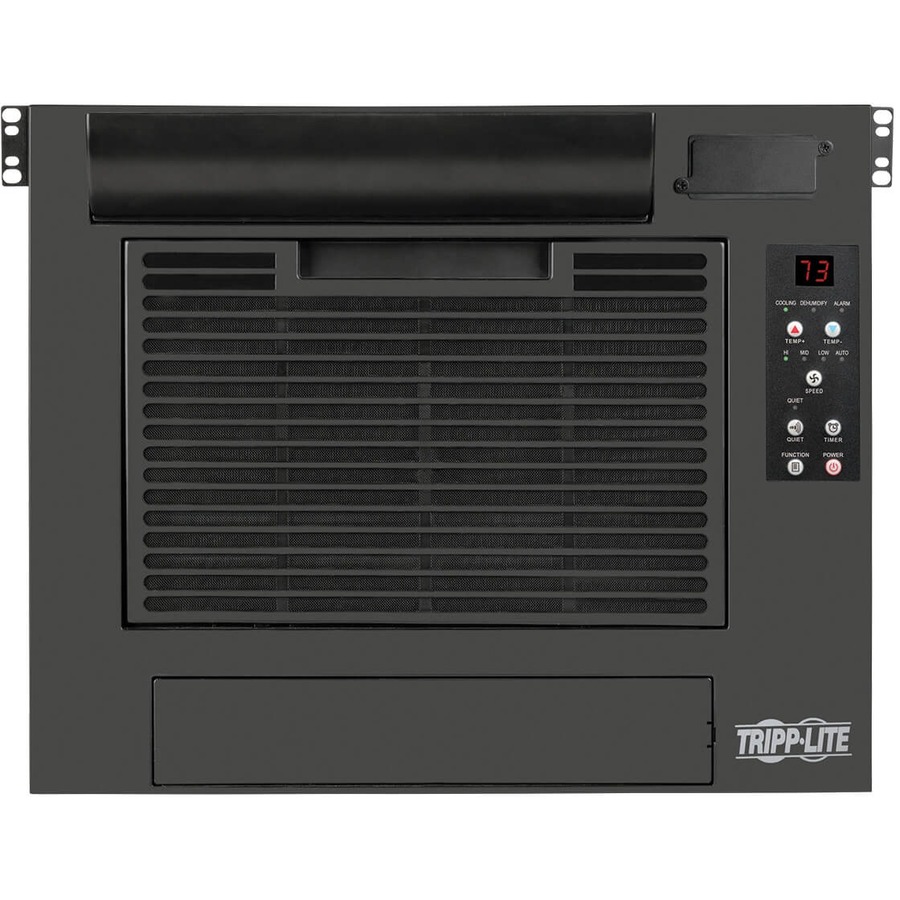

Tripp Lite by Eaton AC Unit for Server Racks – Rack Mount, 7,000 BTU (2.0 kW), 120V, 8U
Login to View Prices

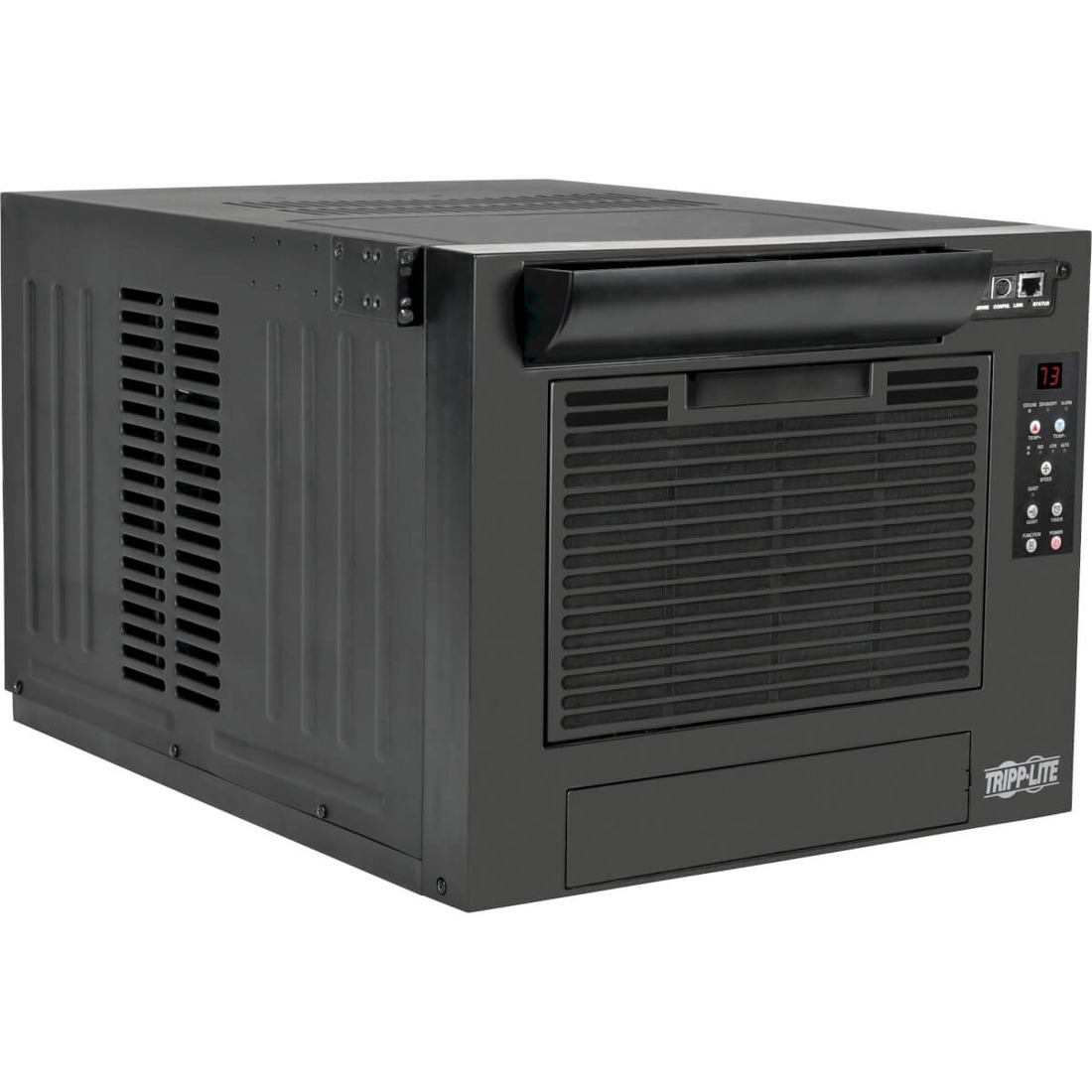

The SRCOOL7KRM Rack-Mounted Server Rack Air Conditioner pumps 7,000 BTU/h (2.0 kW) of close-coupled cooling power into your IT equipment to prevent shutdowns, malfunctions and failures caused by overheating. This space-saving, energy-efficient unit is perfect for data centers, server rooms, network closets and other environments with heat-sensitive rack-mounted equipment and limited floor space.

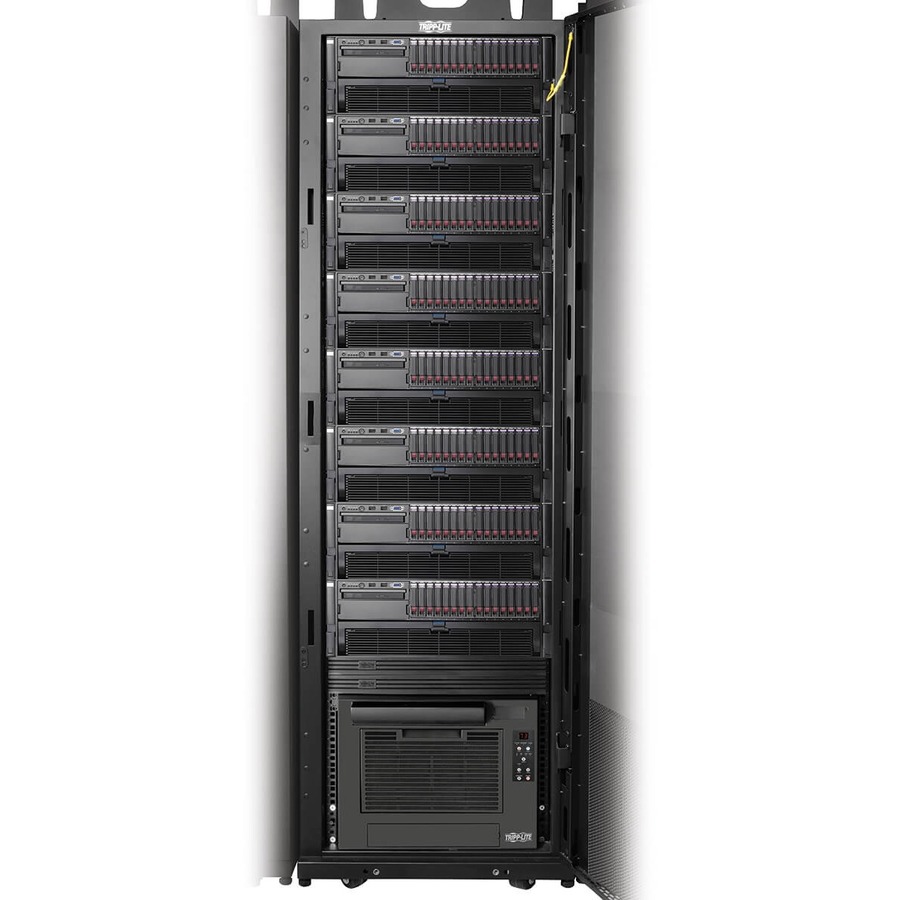

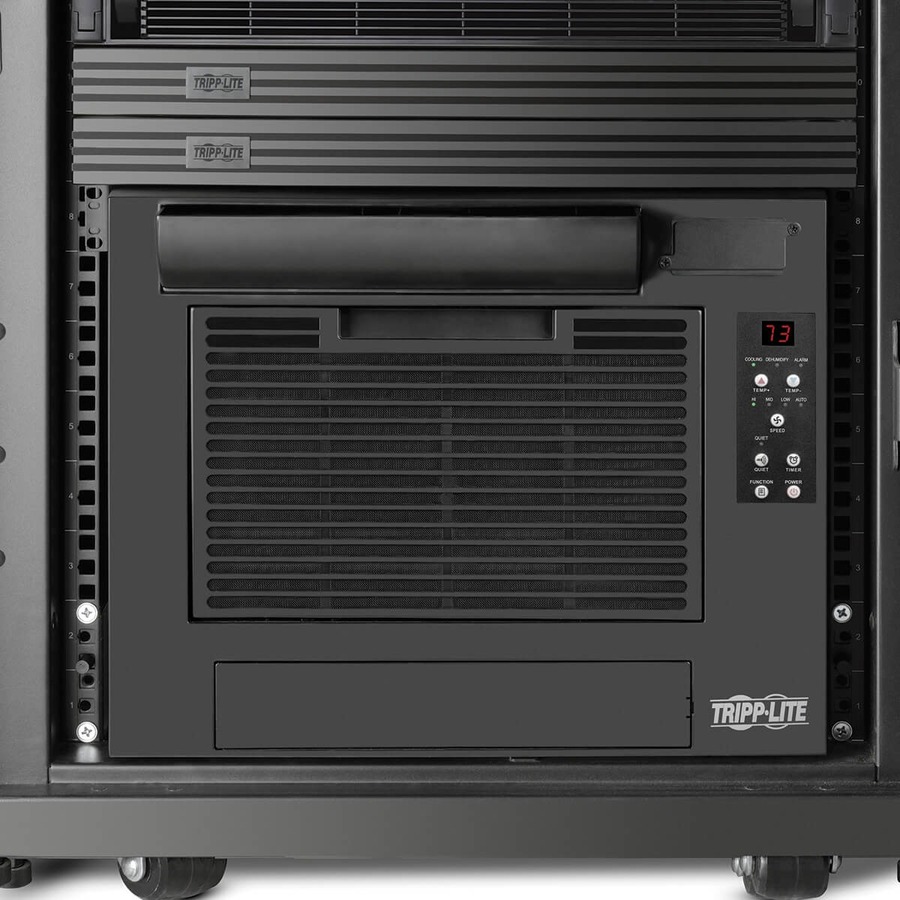

The self-contained SRCOOL7KRM mounts just like any other rack equipment in 8U of space at the bottom of a rack enclosure. A magnetic air dam attaches to the front door of the rack enclosure to ensure that equipment draws cool air from the SRCOOL7KRM instead of drawing warm air from the room. Because it only cools the equipment inside the rack enclosure, the SRCOOL7KRM is much more efficient than solutions that cool an entire room to achieve the same result. The SRCOOL7KRM filters the air, and its built-in evaporator eliminates condensation, as well as the need for a floor drain or water collection tank.

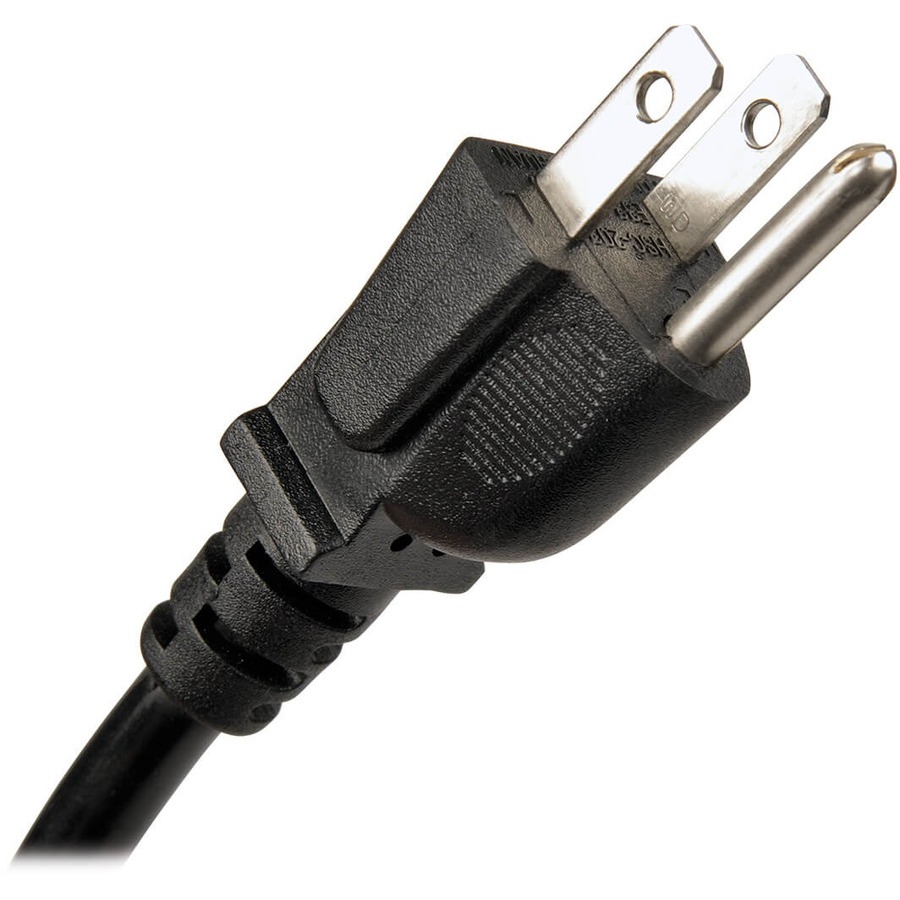

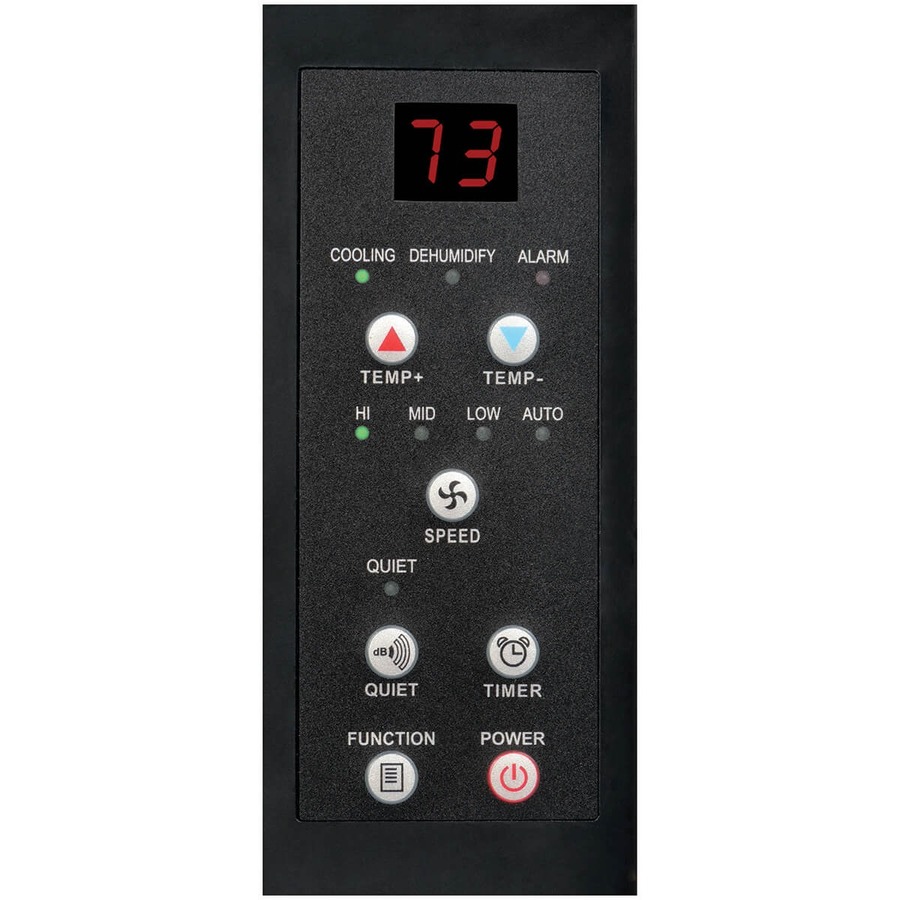

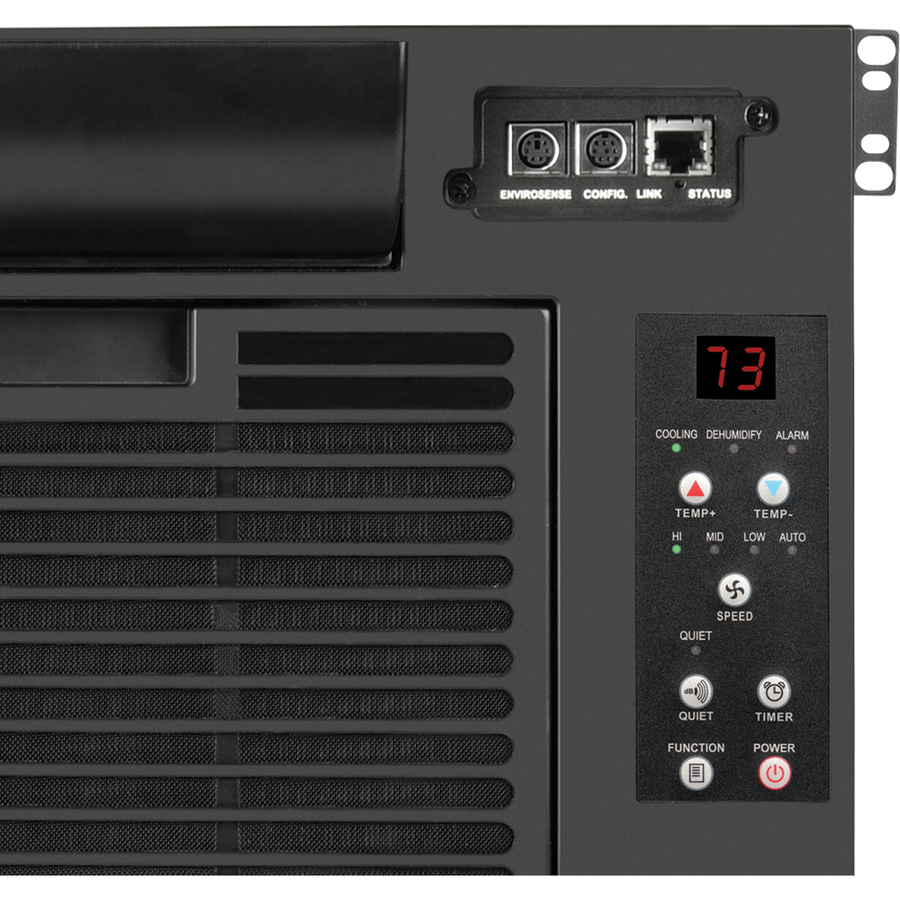

The 7-foot cord plugs into a standard 15A (NEMA 5-15R) outlet. The unit restarts automatically after power failures, and you can use the built-in timer to schedule unattended shutdown and startup. The intuitive control panel includes a digital display and diagnostic LEDs to communicate operating conditions at a glance.
The optional SRCOOLNET2LX remote management accessory (sold separately) allows you to monitor temperatures, receive alerts, review logs and control settings over the Ethernet network from any location via SNMP, Web, SSH or telnet. The SRCOOLNET2LX accessory also includes an ENVIROSENSE® temperature and humidity sensor that allows you to link cooling output with temperature readings up to 12 feet away.
- Includes hardware for easy mounting in 19-inch racks
- Supports optional remote management via Ethernet
- Provides 7,000 BTU/h (2.0 kW) of cooling capacity
- Saves energy with efficient close-coupled cooling
- Saves valuable floor space in IT environments
Additional information
| Weight | 61.6000 lbs |
|---|---|
| Dimensions | 22.50 × 17.40 × 13.90 in |
| Manufacturer Website Addres | |
| Plug Type | 5-15P |
| Dehumidification Rate | 20.8 mL/min |
| Input Current (Cooling) | 8.50 A |
| Built-in Display | Yes |
| Cooling Capacity | 2051.50 W |
| Package Contents | <ul> <li>SmartRack 7,000 BTU 120V Rack-Mounted Air Conditioning Unit</li> <li>Magnetic Air Dam Kit</li> <li>Directional Output Vent</li> <li>Mounting Hardware</li> <li>Owner's Manual</li> </ul> |
| Hourly Energy Consumption f | 2000 W |
| Product Type | Rack Air Conditioner |
| Product Model | SRCOOL7KRM |
| Maximum Air Flow | 198.2 CFM |
| Product Functions | Cooler |
| Dehumidifier | Yes |
| Refrigerant | R-410A |
| Display Screen Type | LCD |
| Product Line | SmartRack |
| Input Voltage | 120 V AC |
| Limited Warranty | 1 Year |
| Color Family | Black |
| Manufacturer | Tripp Lite by Eaton |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Country of Origin | China |
| UPC | 0 |
| MPN | SRCOOL7KRM |
| Brand | Tripp Lite by Eaton |
