Tripp Lite by Eaton 2.4kW Single-Phase 120V Basic PDU – 13 NEMA 5-15/20R Outlets, L5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount
Login to View Prices
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

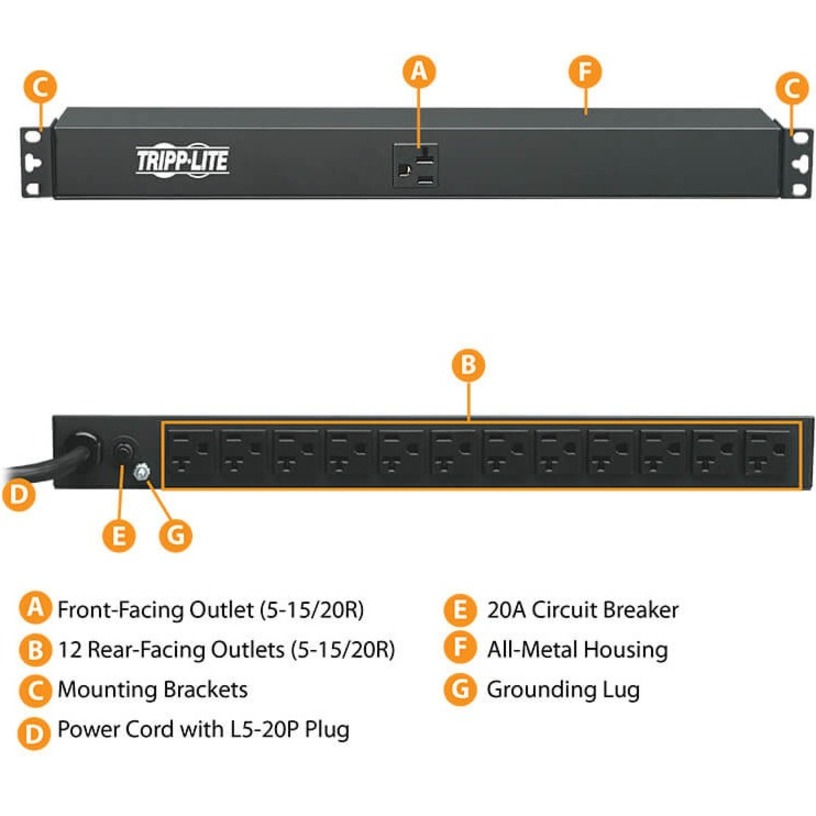

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets – 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
- 5-year limited warranty
- Flexible installation options include 1U and 0U rack, under counter and on wall

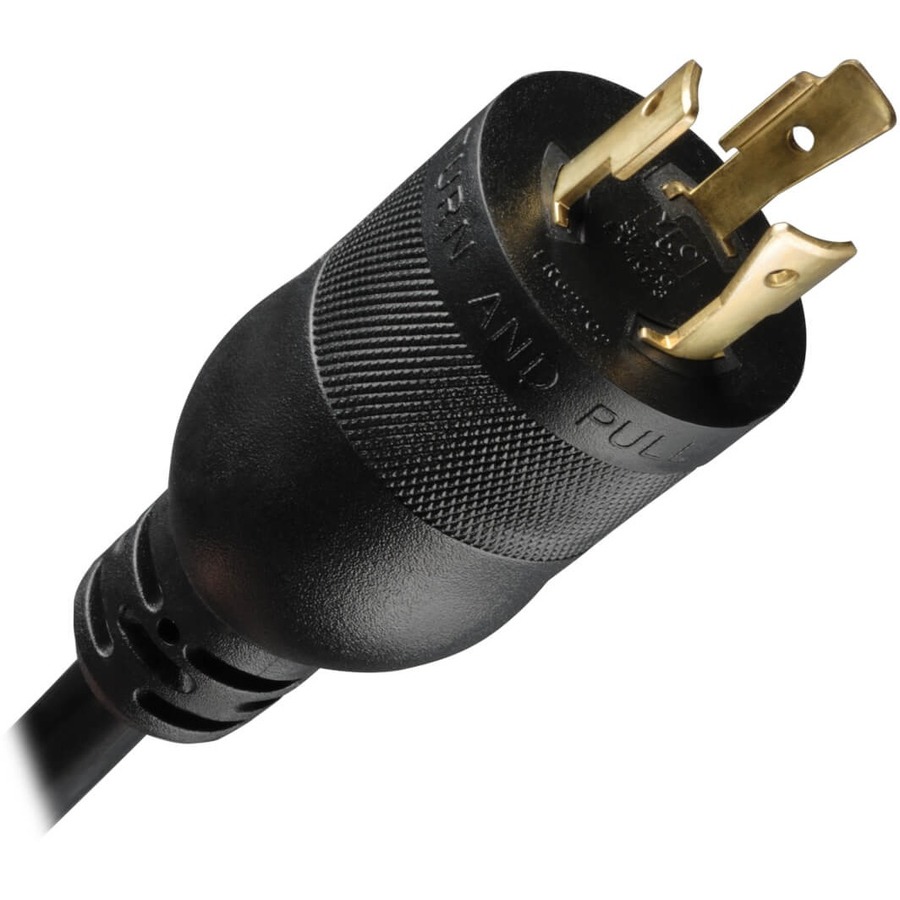

- 6-ft. (1.83 m) cord with NEMA L5-20P single-phase input connects to AC power source
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 13 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
Additional information
| Weight | 5.2000 lbs |
|---|---|
| Dimensions | 4.50 × 17.50 × 1.80 in |
| Phase | Single Phase |
| Product Type | PDU |
| Mount Type | Rack-mountable,Wall-mountable |
| Manufacturer Website Addres | |
| Product Model | PDU1220T6 |
| Package Contents | <ul> <li>PDU1220T6 13-Outlets PDU</li> <li>Rack-mounting Hardware</li> <li>Owner's Manual</li> </ul> |
| Limited Warranty | 5 Year |
| Output Voltage | 100 V AC,120 V AC,127 V AC |
| Mounting Orientation | Horizontal/Vertical |
| Input Voltage | 120 V AC |
| PDU Type | Basic |
| Protection Type | Accidental Power Shutdown,Overload Protection,Circuit Protection |
| Receptacle Type | NEMA 5-15/20R |
| Rack Height | 1U |
| Plug/Connector Type | NEMA L5-20P |
| Manufacturer | Tripp Lite by Eaton |
| Receptacle Detail | 13 x NEMA 5-15/20R |
| Power Rating (Watt) | 2500 W |
| Input Current | 20 A |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| UPC | 0 |
| MPN | PDU1220T6 |
| Brand | Tripp Lite by Eaton |
