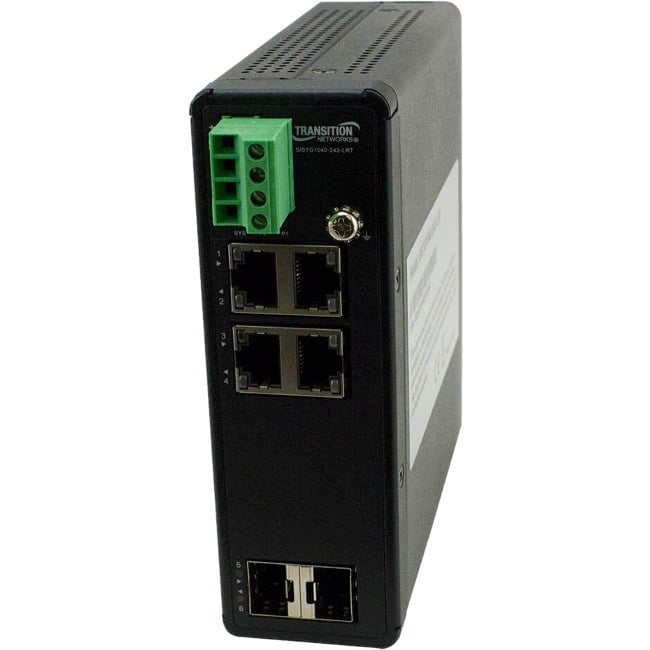

Transition Networks SISTG1040-242-LRT Ethernet Switch
Login to View Prices
This switch is an unmanaged full Gigabit Ethernet hardened switch that has (4) 10/100/1000Base-T ports with (2) 100/1000 dual speed SFP slots. The SISTG1040-242-LRT can be used at the edge of a hardened network to provide Gigabit Ethernet connections in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks’ hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.
- Support Jumbo Frame up to 9K bytes
- Layer 2 wire-speed switching engine
- Ruggedized metal closure
- IEEE 802.3az Energy Efficient Ethernet
- Fan-less design
- Wide operating temperature range (-40°C to +75°C)
- Dual Power input
- Din Rail and Wall Mount options
Additional information
| Weight | 12.6400 lbs |
|---|---|
| Dimensions | 5.40 × 5.30 × 1.70 in |
| Form Factor | Wall Mountable,DIN Rail Mountable |
| Total Number of Network Por | 4 |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Manufacturer Website Addres | |
| Manufacturer | Transition Networks, Inc |
| Product Model | SISTG1040-242-LRT |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Number of Total Expansion S | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Ethernet Technology | Gigabit Ethernet |
| Uplink Port | Yes |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Manageable | No |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Modular | Yes |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Environmentally Friendly | Yes |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| UPC | 0 |
| MPN | SISTG1040-242-LRT |
| Brand | Transition Networks |
