Synology RackStation RS2423RP+ SAN/NAS Storage System
Login to View Prices
Secure storage for your business | Business-ready
Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216 TB raw storage before expansion.
Flexible Configuration
Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.
Versatile Applications
Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.
Faster and more responsive
The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability
The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

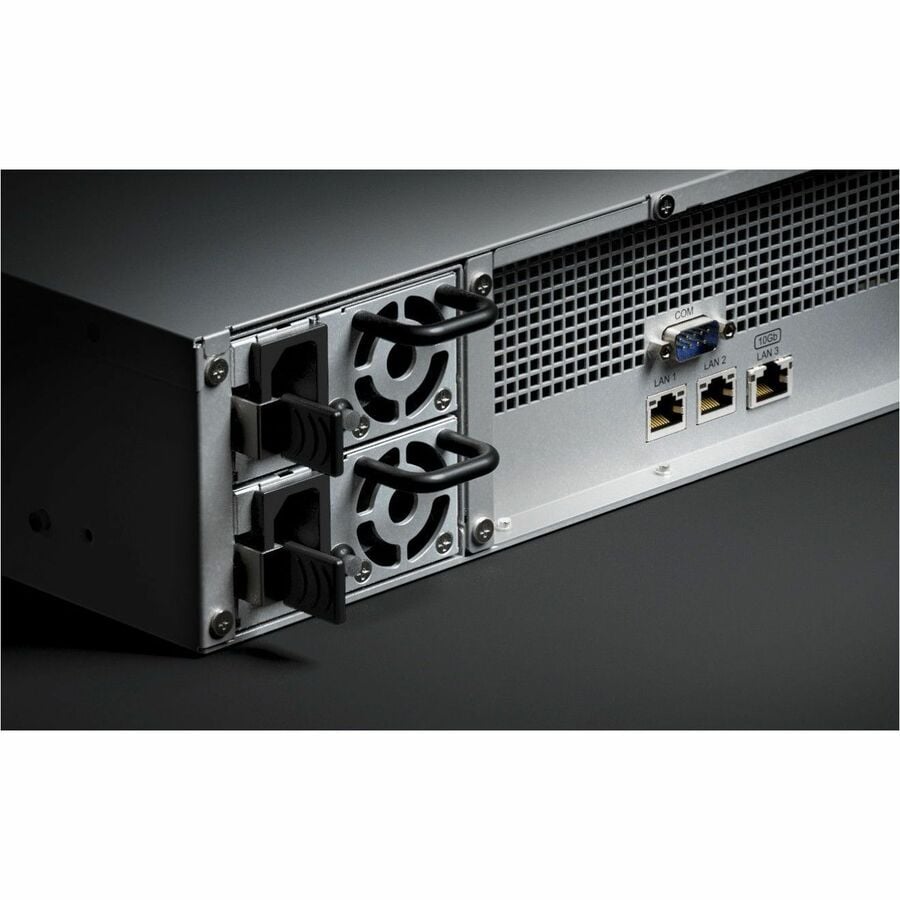

The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Versatile storage for businesses
The RS2423+/RS2423RP+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloud | Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.Learn more
Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Multi-endpoint data protection | Consolidated backup server
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, hot spare, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- Ryzen processor offers maximum productivity in a timely efficient manner
- Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- It’s diskstation manager operating system offers powerful platform to efficiently run routine applications
Additional information
| Weight | 26.2400 lbs |
|---|---|
| Dimensions | 22.80 × 19.00 × 3.50 in |
| Processor Core | Quad-core (4 Core) |
| Product Model | RS2423RP+ |
| Number of Solid State Drive | 12 |
| Number of Hard Drives Insta | 0 |
| Processor Manufacturer | AMD |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Maximum Power Supply Wattag | 350 W |
| Manufacturer Website Addres | |
| Manufacturer | Synology, Inc |
| Redundant Power Supply | Yes |
| Number of Total Expansion B | 12 |
| Standard Memory | 8 GB |
| Number of Hard Drives Suppo | 12 |
| Processor Model | V1780B |
| Number of USB 3.2 Gen 1 Por | 2 |
| Product Type | SAN/NAS Storage System |
| Total Number of USB Ports | 2 |
| Number of Power Supplies In | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Processor Speed | 3.35 GHz |
| Number of 2.5"/3.5" Bays | 12 |
| RAID Supported | Yes |
| Number of Processors Instal | 1 |
| Number of Total Expansion S | 1 |
| Number of Network (RJ-45) P | 3 |
| Processor Type | Ryzen |
| Memory Technology | DDR4 SDRAM |
| Operating System | DiskStation Manager |
| Rack Height | 2U |
| RAID Levels | 0, 1, 5, 6, 10, Hot Spare, Basic, Hybrid RAID, JBOD |
| Protocols | SMB,AFP,NFS,FTP,WEBDAV,SMB 1.0,CIFS,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA |
| Network (RJ-45) | Yes |
| Product Line | RackStation |
| Form Factor | Rack-mountable |
| Packaged Quantity | 1 |
| Drive Interface | Serial ATA |
| UPC | 0 |
| MPN | RS2423RP+ |
| Brand | Synology |
