StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft
Login to View Prices

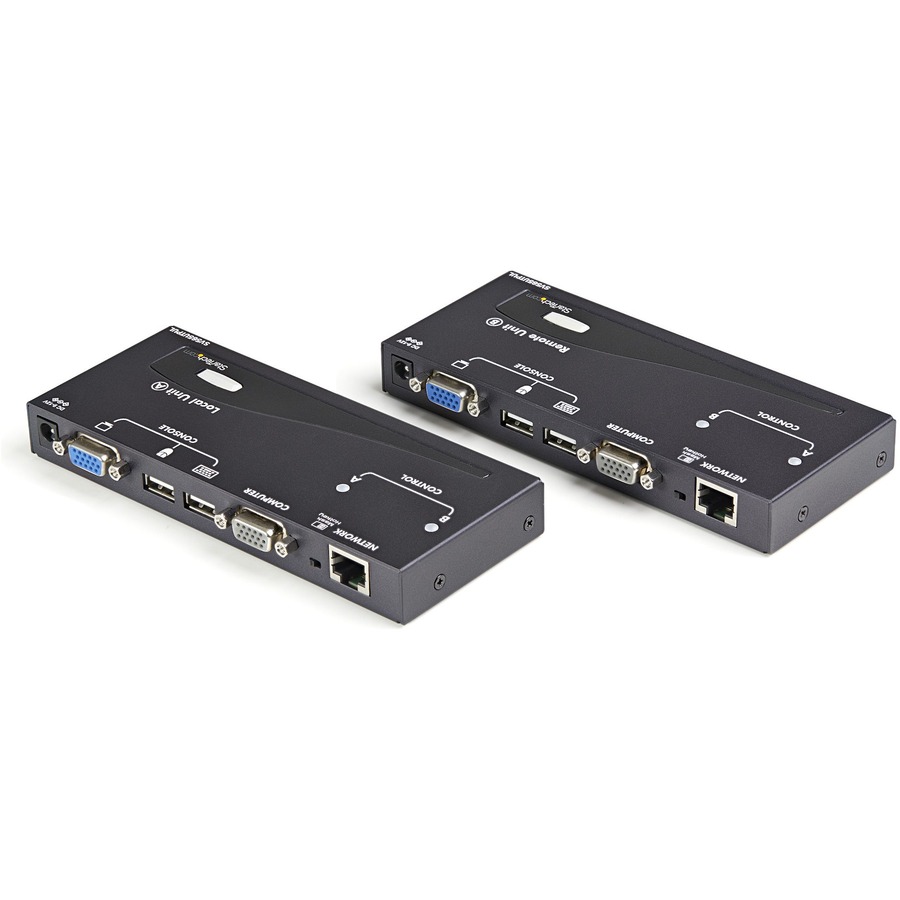

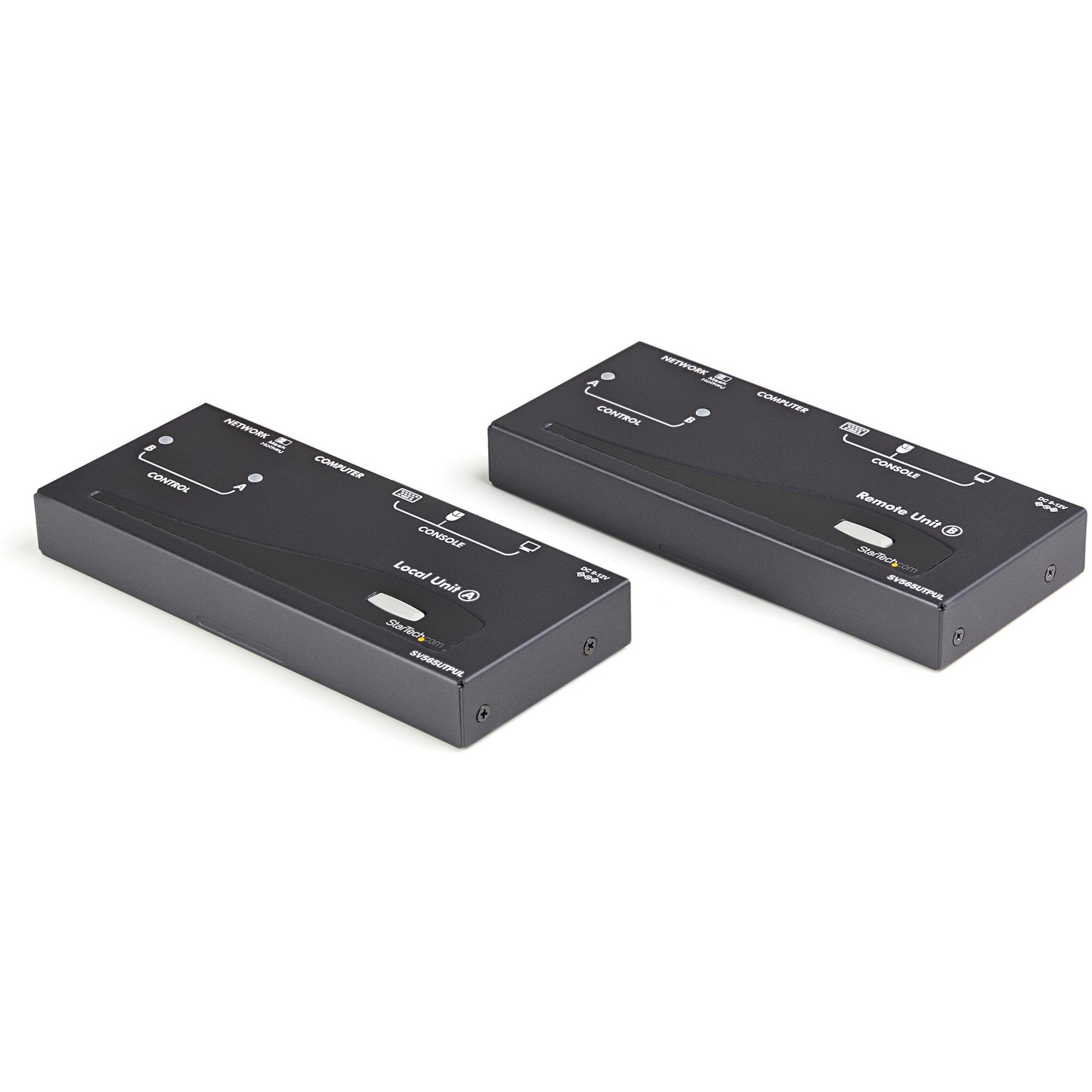

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
- Supports most combo keyboard and mouse sets (including Wireless)
- Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
- Intuitive hotkey commands
- Compatible with CAT 5, 5e, or 6 UTP cabling
- Supports auto-switching between host and remote users or dedicated control
- Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
- USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
- Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
- Kit includes both local and remote units
- High resolution support: Up to 1920×1200(WUXGA)/ 1600×1200(UXGA)
Additional information
| Number of VGA Ports | 2 |
|---|---|
| Connectivity Technology | Wired |
| Input Voltage | 120 V AC,240 V AC |
| Number of Local Users Suppo | 1 |
| Number of Network (RJ-45) P | 2 |
| Graphic Mode | WUXGA |
| Number of Computers Support | 2 |
| Transmitter Width | 6.20" |
| Power Consumption | 18 W |
| Receiver Depth | 2.80" |
| Receiver Weight (Approximat | 1.37 lb |
| Receiver Width | 6.20" |
| Package Contents | <ul> <li>2 x KVM Extenders (1x Local, 1x Remote) </li> <li>2 x 2n1 USB VGA KVM Cables </li> <li>1 x Rubber Feet </li> <li>1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand </li> <li>1 x User Manual</li> </ul> |
| Transmitter Weight (Approxi | 1.37 lb |
| Transmitter Depth | 2.80" |
| Maximum Operating Distance | 984.25 ft |
| Maximum Video Resolution | 1920 x 1200 |
| USB | Yes |
| KVM Technology | Analog |
| Number of USB Ports | 4 |
| Input Voltage Range | 110V AC to 240V AC |
| Receiver Height | 0.80" |
| Transmitter Height | 0.80" |
| Packaged Quantity Condition | Kit |
| Number of Remote Users Supp | 1 |
| Form Factor | Rack-mountable,Desktop |
| Network (RJ-45) | Yes |
| Limited Warranty | 3 Year |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Product Type | KVM Console/Extender |
| VGA | Yes |
| Packaged Quantity | 1 |
| Manufacturer Website Addres | |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Manufacturer | StarTech.com |
| UPC | 0065030839259 |
| MPN | SV565UTPUL |
| Brand | StarTech.com |
