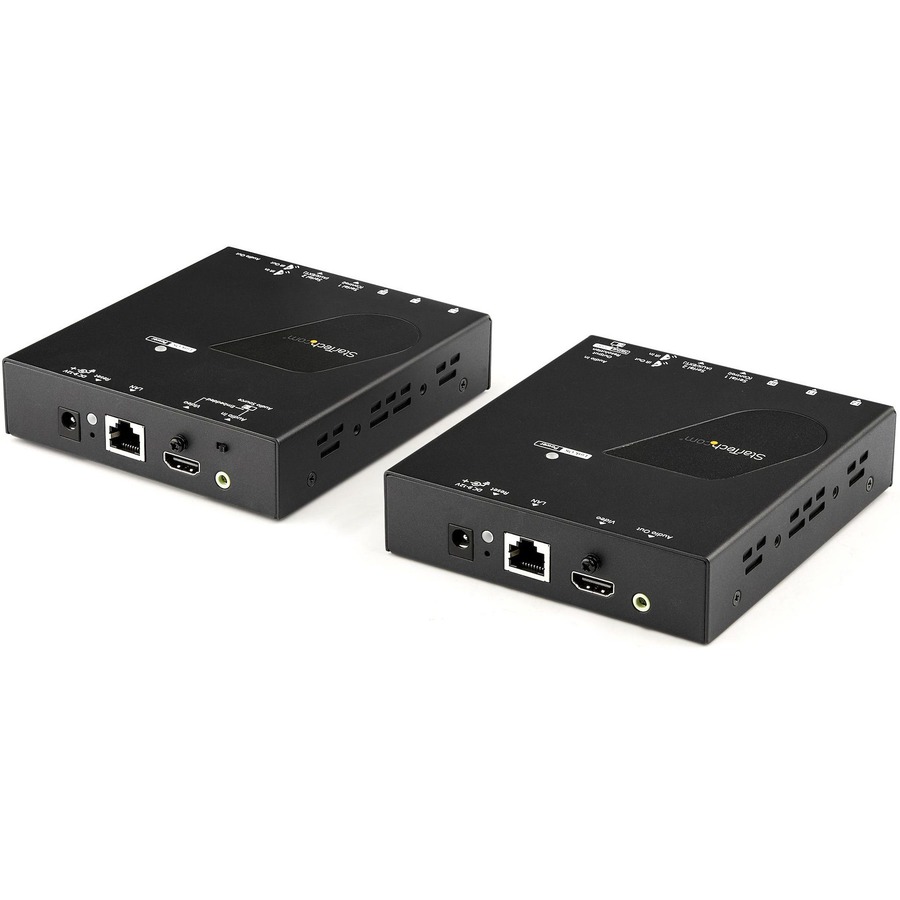

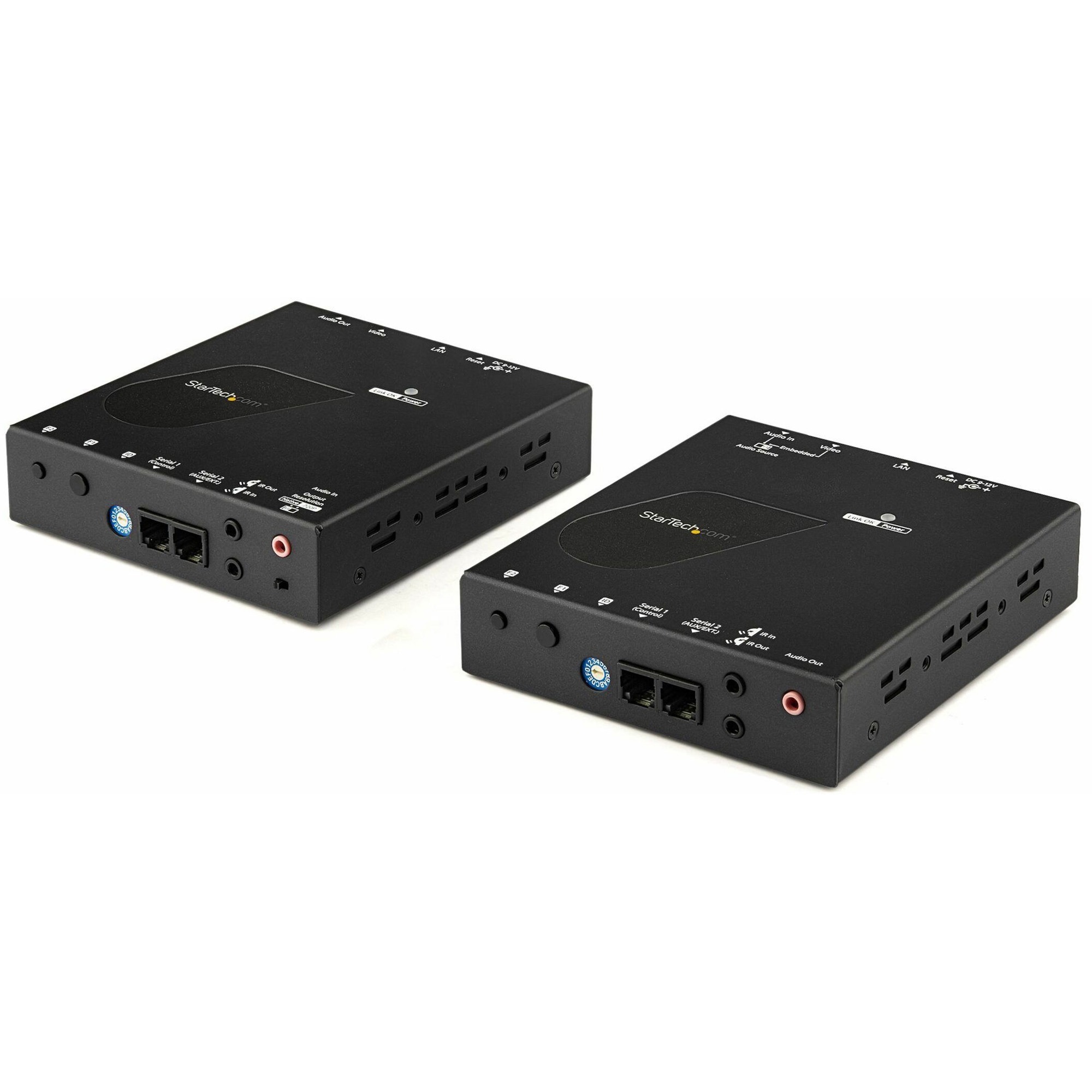

StarTech.com HDMI over IP Extender Kit with Video Wall Support – 1080p – HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K)
Login to View Prices

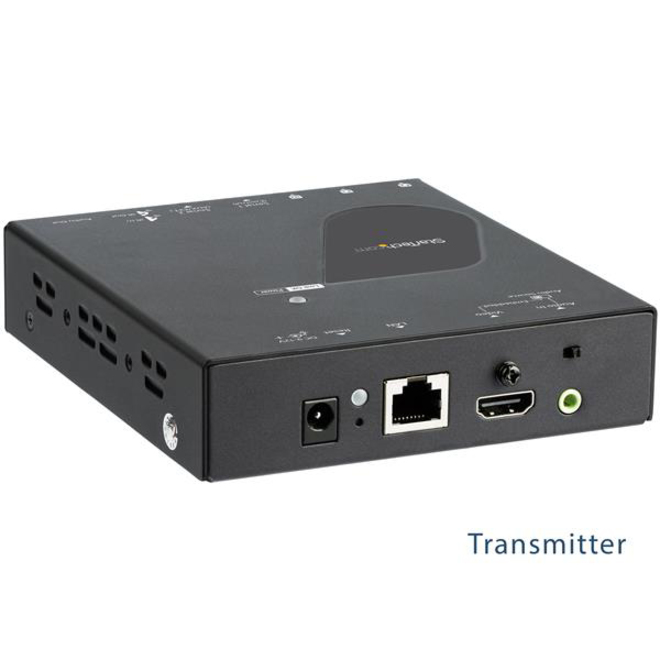

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays
- Create stunning video walls easily using a single or multiple video source with multiple receivers
- Manage and control your digital signage with the intuitive mobile app
- Crystal-clear picture quality, video resolutions up to 1080p
- Tidy, professional installation with included mounting hardware
Additional information
| Graphics Modes | Full HD |
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Connectivity Technology | Wired |
| Transmitter Weight (Approxi | 2.60 oz |

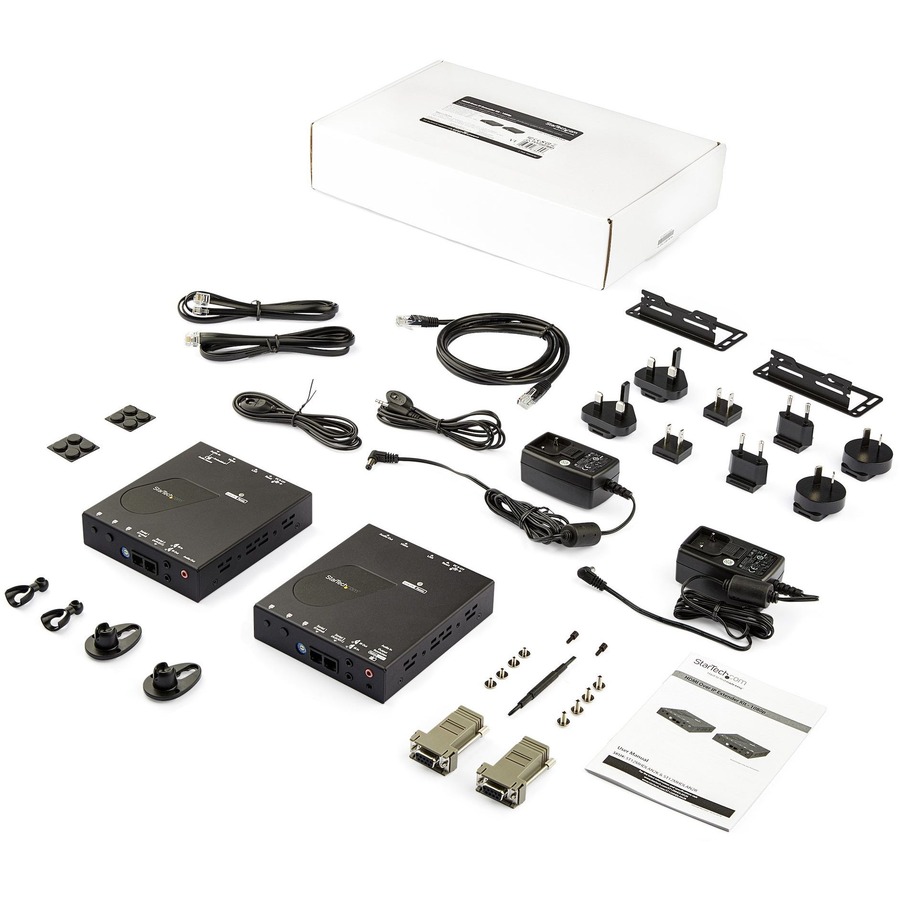

| Package Contents | <ul> <li>1 x HDMI Transmitter </li> <li>1 x HDMI Receiver </li> <li>1 x CAT5 Cable </li> <li>2 x RJ-11 to RSx232 Adapters </li> <li>2 x RJ-11 Cables </li> <li>1 x IR Blaster </li> <li>1 x IR Receiver </li> <li>2 x Universal Power Adapters (NA/JP, EU, UK, ANZ) </li> <li>1 x Hardware Kit </li> <li>8 x Foot Pads </li> <li>1 x User Manual</li> </ul> |
| Receiver Weight (Approximat | 2.60 oz |
| Receiver Depth | 5.20" |
| Receiver Width | 4.60" |
| Transmitter Width | 4.60" |
| Maximum Operating Distance | 328.08 ft |
| HDMI Out | Yes |
| Number of Network (RJ-45) P | 2 |
| Number of HDMI Outputs | 1 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Video Resolution | 1920 x 1080 |
| Number of Output Devices Su | 1 |
| HDMI In | Yes |
| Number of HDMI Inputs | 1 |
| Number of Input Devices Sup | 1 |
| Packaged Quantity Condition | Kit |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| TAA Compliant | Yes |
| Form Factor | Rack-mountable |
| Transmitter Depth | 5.20" |
| Receiver Height | 1.20" |
| Transmitter Height | 1.20" |
| Limited Warranty | 2 Year |
| Manufacturer Website Addres | |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Manufacturer | StarTech.com |
| UPC | 0065030878456 |
| MPN | ST12MHDLAN2K |
| Brand | StarTech.com |
