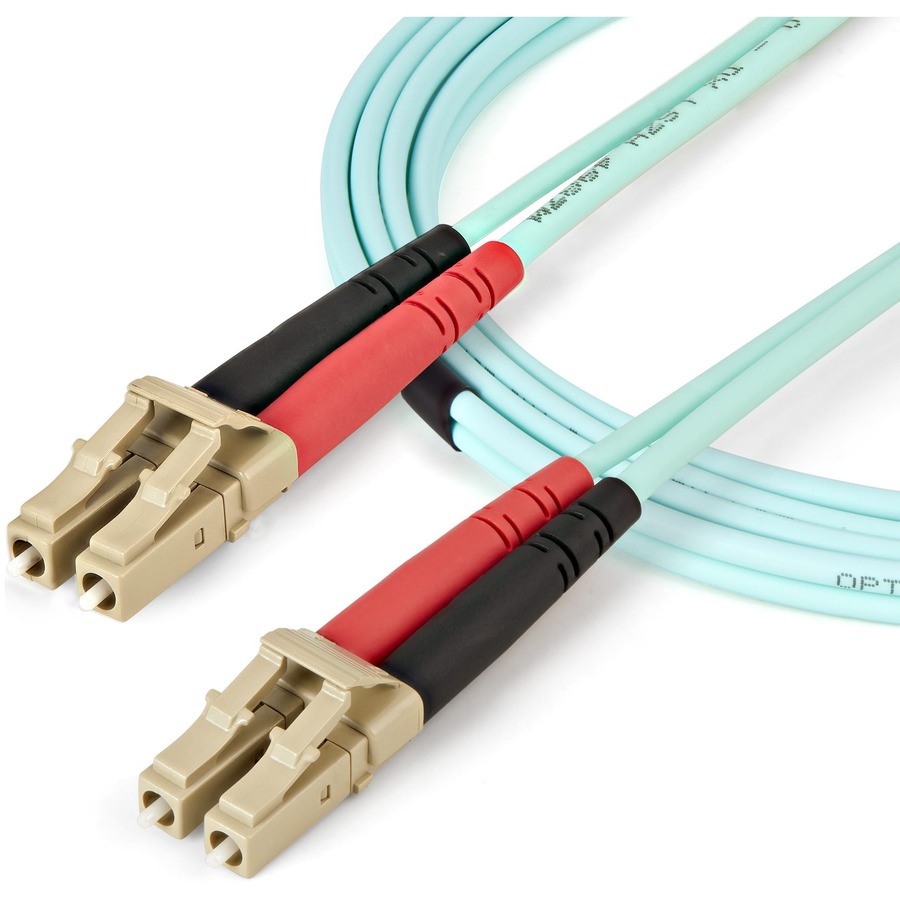

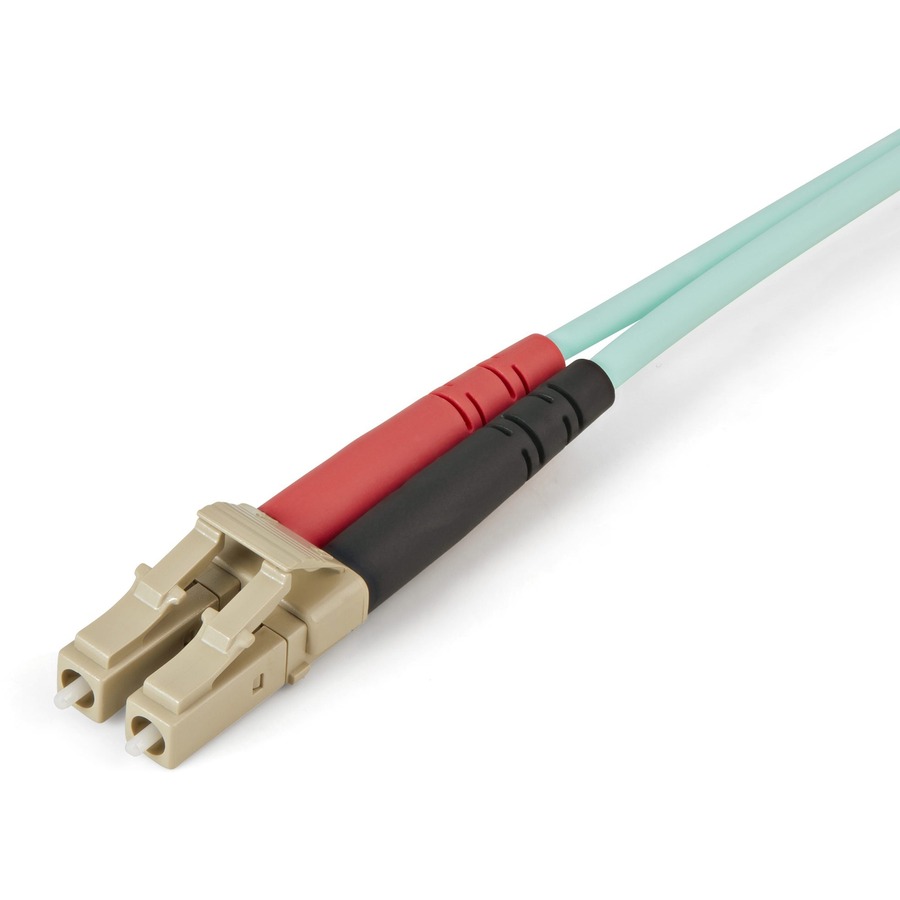

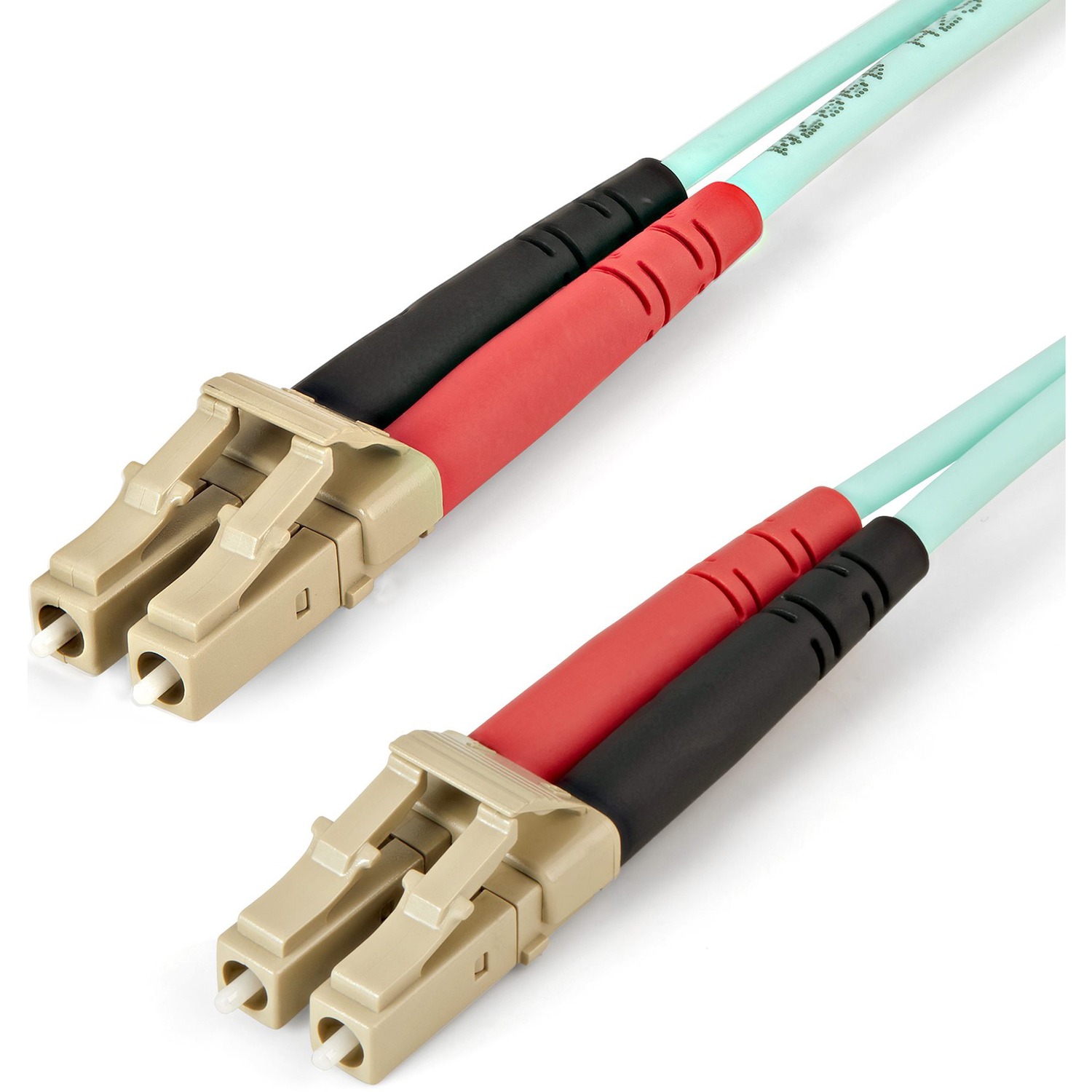

StarTech.com 5m (15ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, LSZH Fiber Patch Cord
Login to View Prices
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
- SPECS: 5m (16.4ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life~
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Additional information
| Weight | 0.1600 lbs |
|---|---|
| Fiber Optic Mode | Multi-Mode |
| Device Supported | Network Device,Transceiver |
| Data Transfer Rate | 100 Gbit/s |
| Product Color | Aqua |
| Connector Type on Second En | LC Network – Male |
| Connector Type on First End | LC Network – Male |
| Connector on Second End Det | 2 x LC Network – Male |
| Connector on First End Deta | 2 x LC Network – Male |
| Cable Type | Fiber Optic |
| Core/Cladding Diameter | 50/125 µm |
| Features | Halogen Free,Flame Retardant,Corrosion Resistant |
| Jacket Type | LSZH |
| Cable Length | 16.40 ft |
| Packaged Quantity | 1 |
| Manufacturer Website Addres | |
| Limited Warranty | Lifetime |
| Connector Gender on Second | Male |
| Connector Gender on First E | Male |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Manufacturer | StarTech.com |
| Product Type | Network Cable |
| UPC | 0065030870849 |
| MPN | 450FBLCLC5 |
| Brand | StarTech.com |
