StarTech.com 3ft (1m) Panel Mount DisplayPort Cable, 4K x 2K Video, DisplayPort 1.2 Extension Cable Male to Female, DP Extender Cord
Login to View Prices

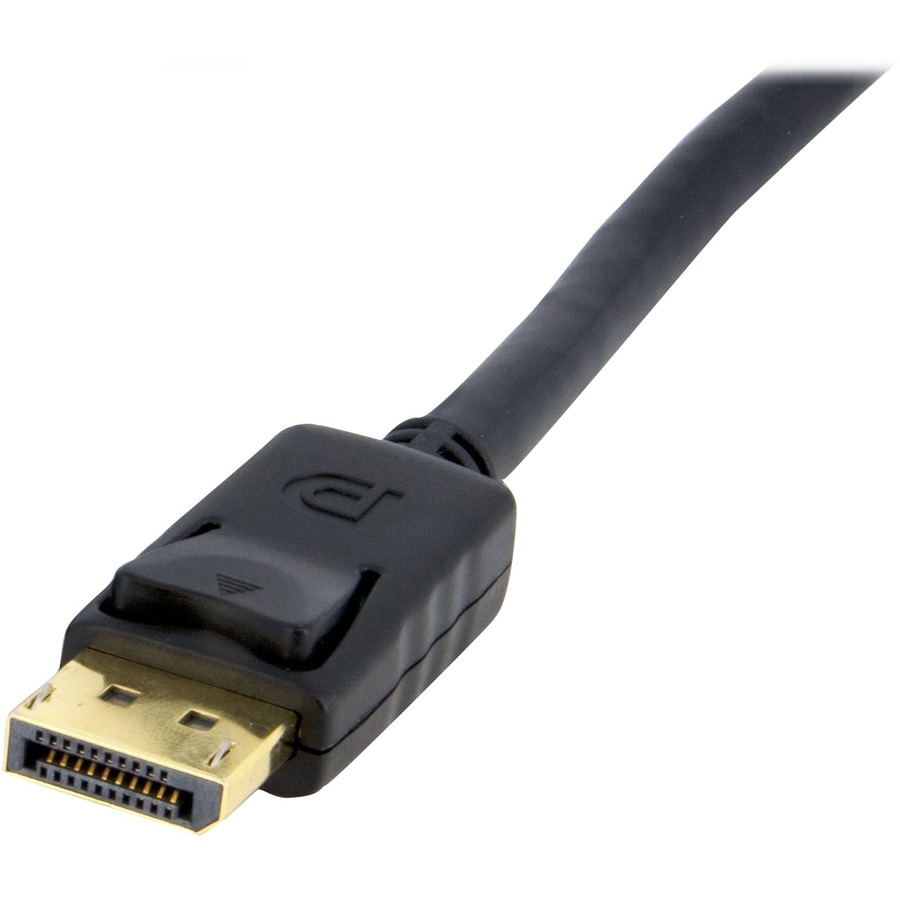

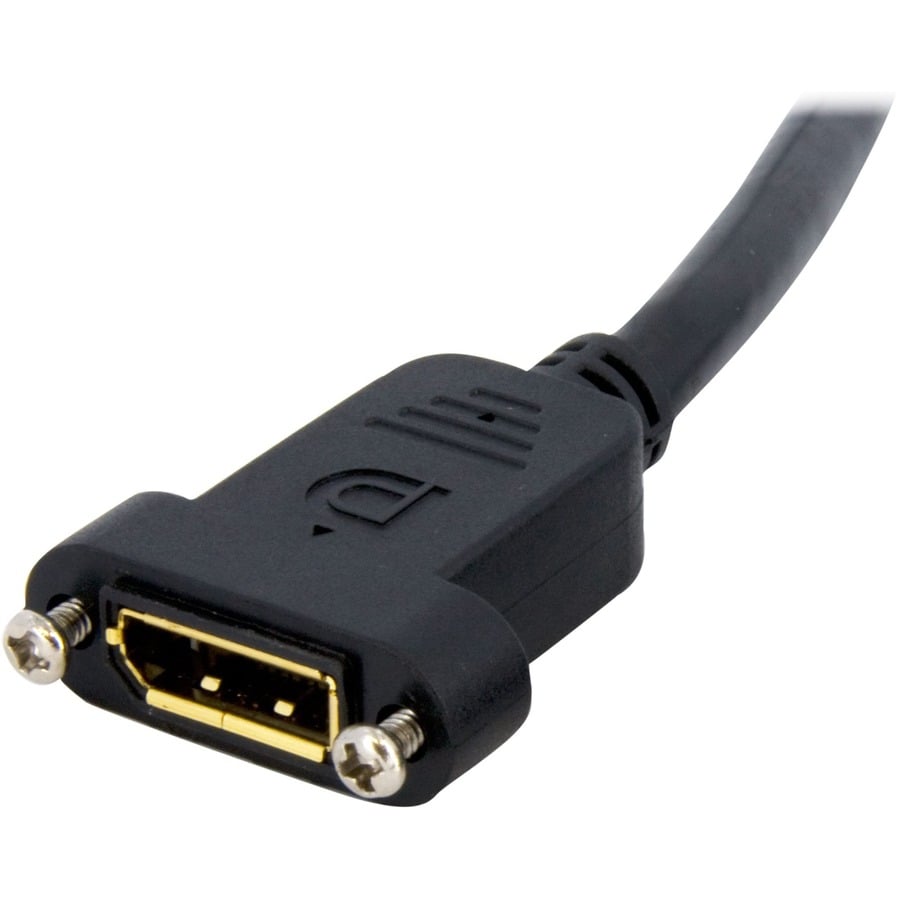

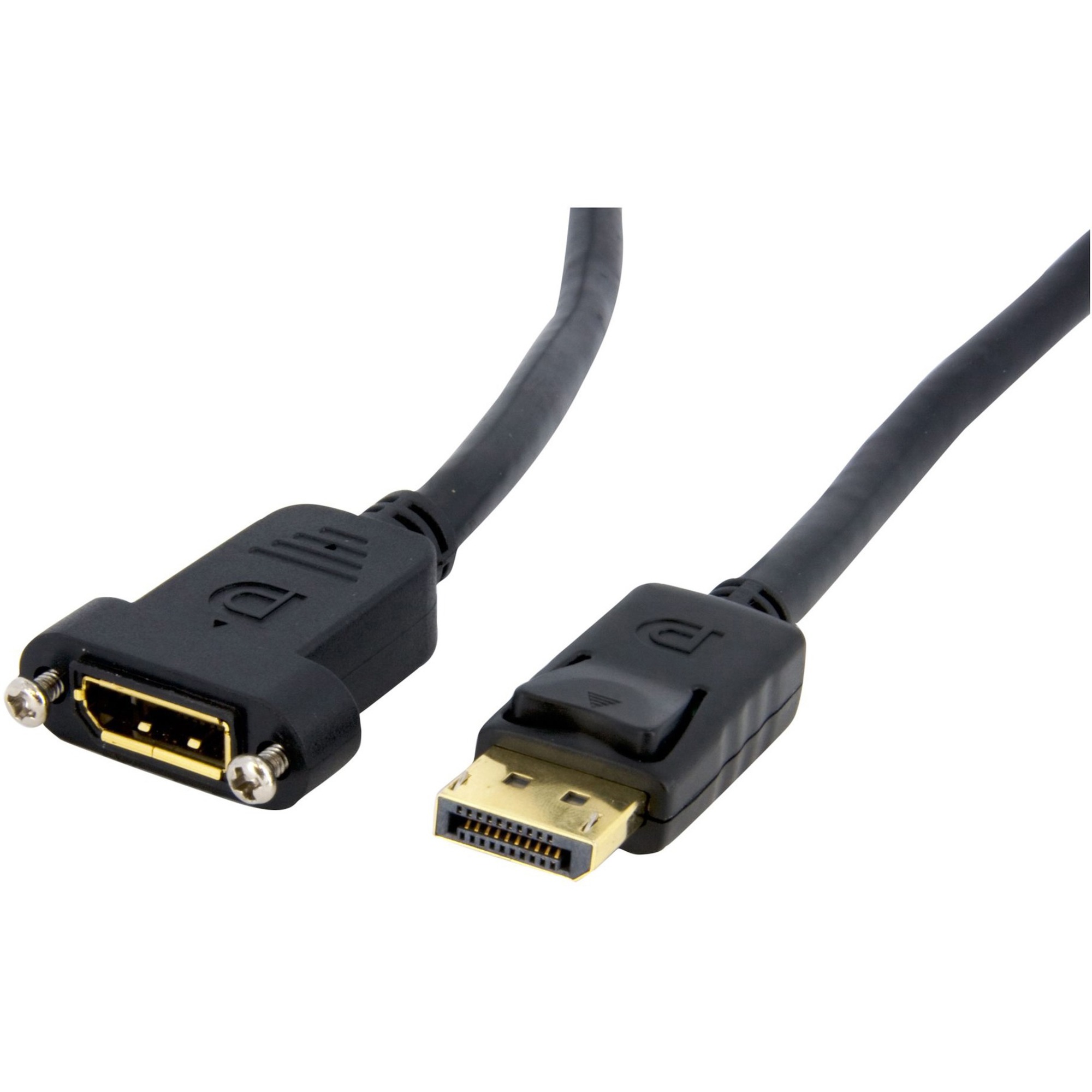

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.
Backed by StarTech.com’s Lifetime Warranty
- SPECS: 3′ (0.91m)
- Black
- DisplayPort 1.2
- DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws)
- 28 AWG
- PVC cable jacket, ABS connector shell
- Shield: Double sided copper foil
- Backward compatible w/ DP1.1
- Lifetime Warranty
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
Additional information
| Weight | 0.1700 lbs |
|---|---|
| Connector Type on First End | DisplayPort Digital Audio/Video – Male |
| Connector on Second End Det | 1 x 20-pin DisplayPort Digital Audio/Video – Female |
| Connector on First End Deta | 1 x 20-pin DisplayPort Digital Audio/Video – Male |
| Cable Length | 3 ft |
| Device Supported | Audio/Video Device |
| Cable Type | DisplayPort |
| Product Type | Video Cable |
| Features | Molded,Locking Latch |
| Packaged Quantity | 1 |
| Jacket Type | CMG |
| Manufacturer Website Addres | |
| Connector Plating | Gold |
| Limited Warranty | Lifetime |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Connector Type on Second En | DisplayPort Digital Audio/Video – Female |
| Country of Origin | China |
| Manufacturer | StarTech.com |
| UPC | 0065030837026 |
| MPN | DPPNLFM3 |
| Brand | StarTech.com |
