StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card
Login to View Prices

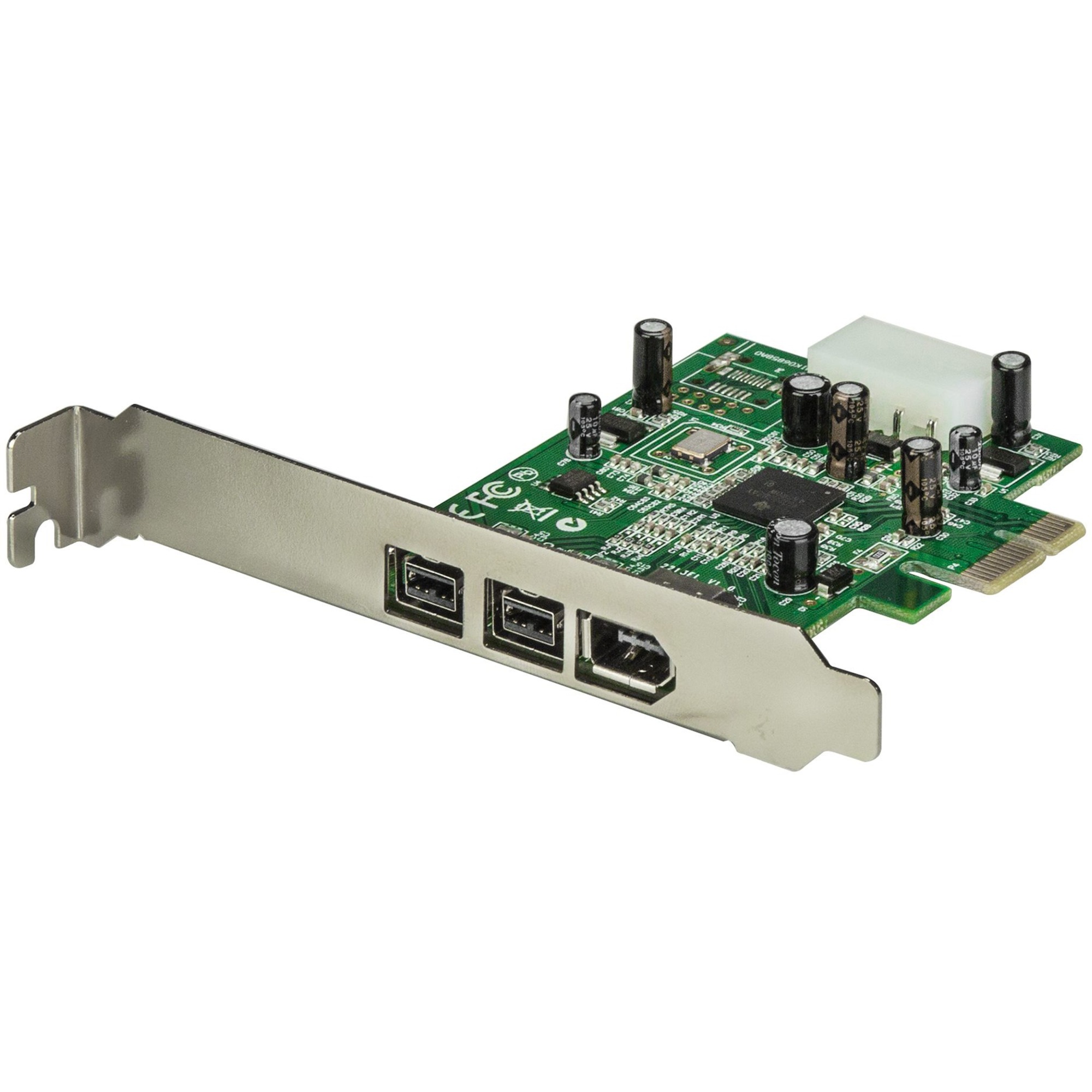

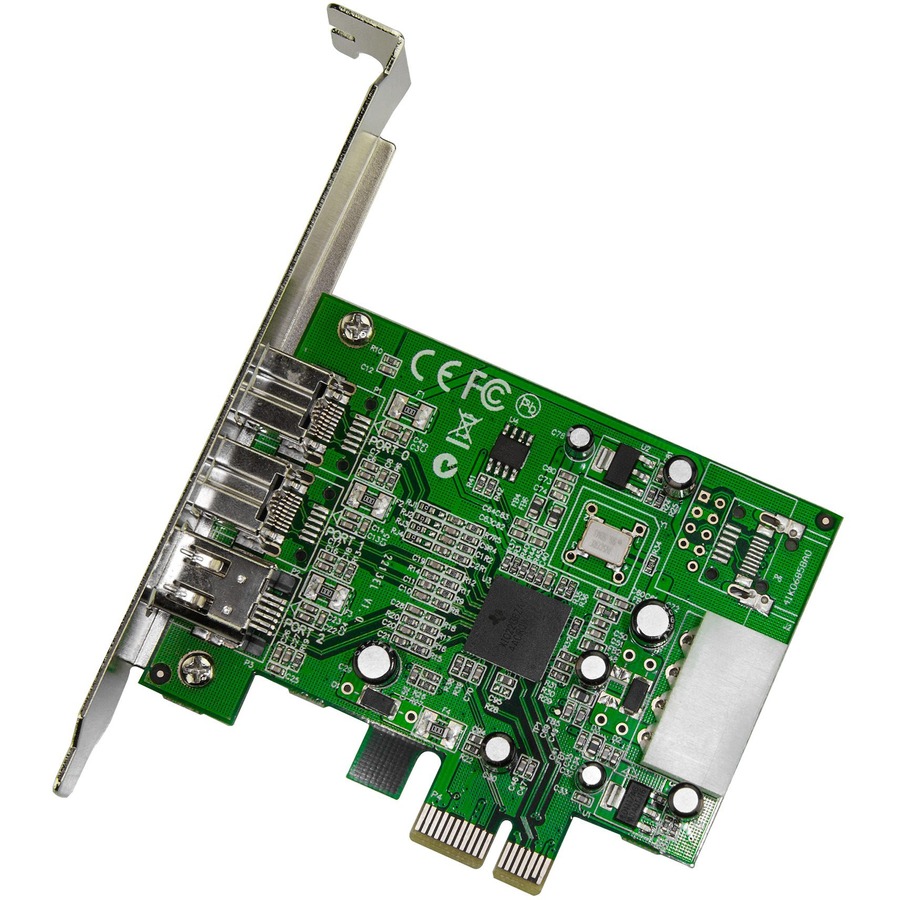

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Plug-and-Play and hot-swap compatible
- Compliant with IEEE 1394b and backward compatible with IEEE 1394a – 2000 as well as 1394-1995 standards
- Optional external power support for high-powered FireWire devices
- Compliant with PCI Express Mini Card specification 1.2

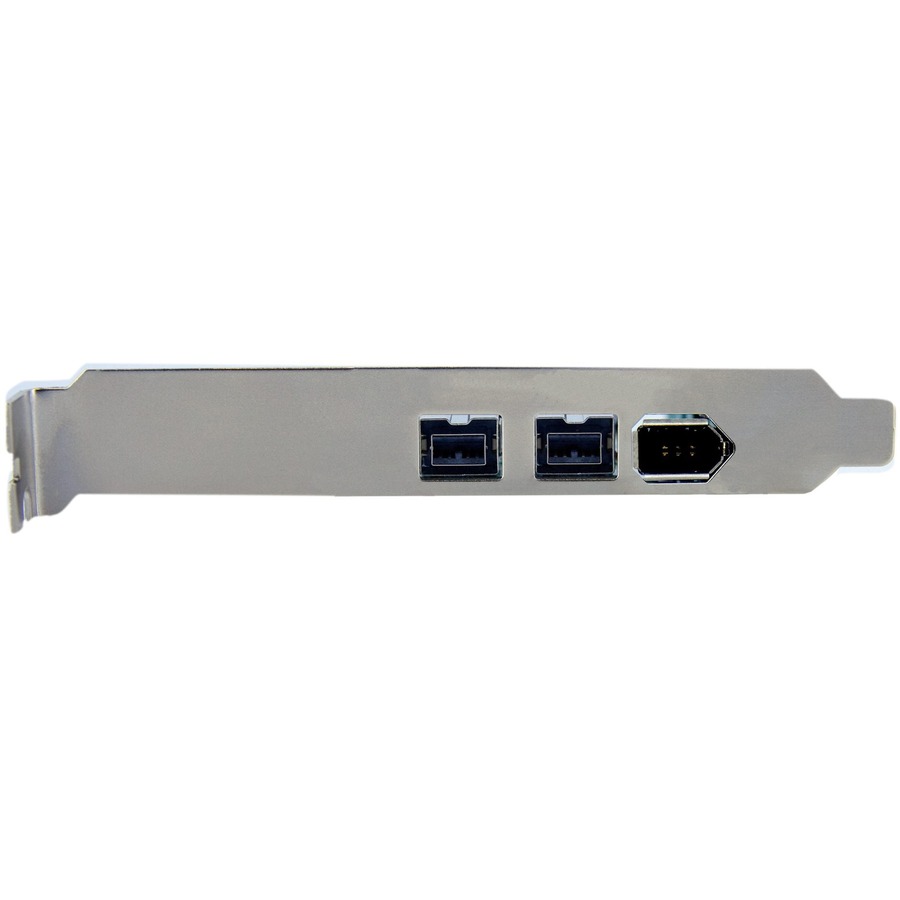

- 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
- 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
Additional information
| Weight | 1.7000 lbs |
|---|---|
| Dimensions | 0.70 × 4.70 in |
| Operating System Supported | Windows 2000,Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,Mac OS X 10.6 Snow Leopard,Mac OS X 10.8 Mountain Lion,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5.x |
| Form Factor | Plug-in Card |
| Data Transfer Rate | 800 MB/s,400 MB/s |
| Number of FireWire/i.LINK 8 | 2 |
| Platform Supported | PC,Mac,Linux |
| Product Type | FireWire Adapter |
| Host Interface | PCI Express 1.1 x1 |
| Package Contents | <ul> <li>3 Port 2b 1a 1394 PCI Express FireWire Card Adapter</li> <li>1 x FireWire cable</li> <li>1 x Low Profile Bracket</li> <li>1 x Software CD</li> <li>1 x Instruction Manual</li> </ul> |
| Total Number of FireWire/i. | 3 |
| Number of FireWire/i.LINK 4 | 1 |
| Length | 3.3" |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Manufacturer Website Addres | |
| Limited Warranty | Lifetime |
| Environmentally Friendly | Yes |
| Manufacturer | StarTech.com |
| UPC | 0065030825139 |
| MPN | PEX1394B3 |
| Brand | StarTech.com |
