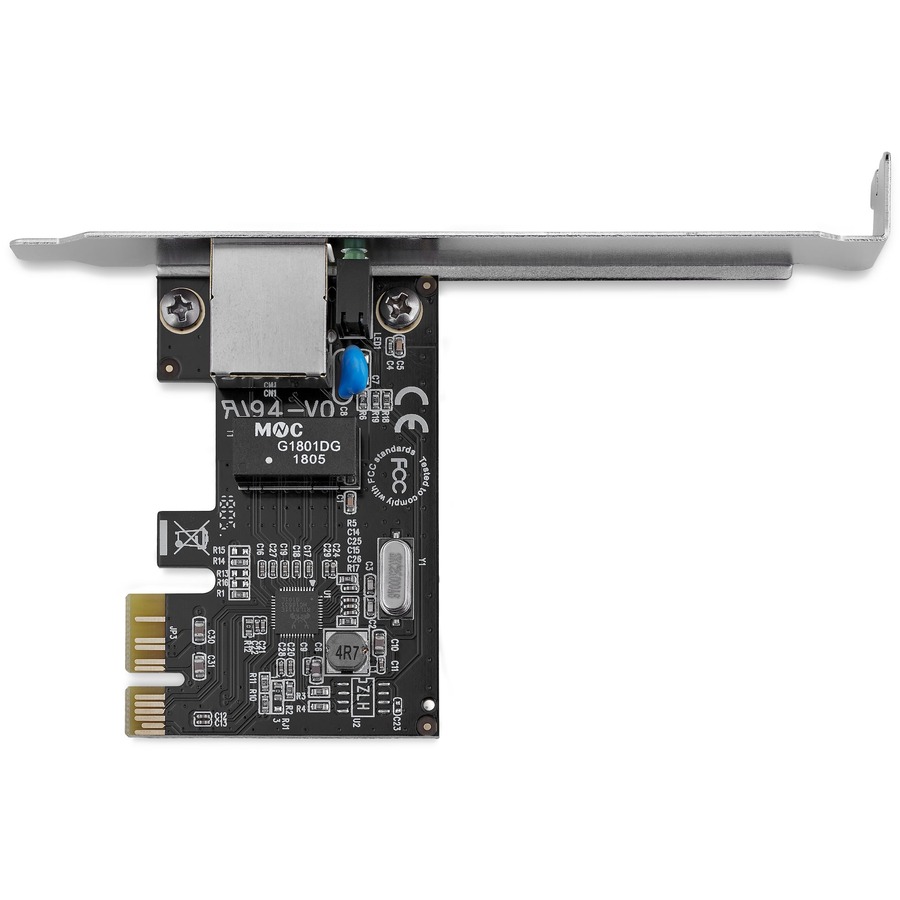

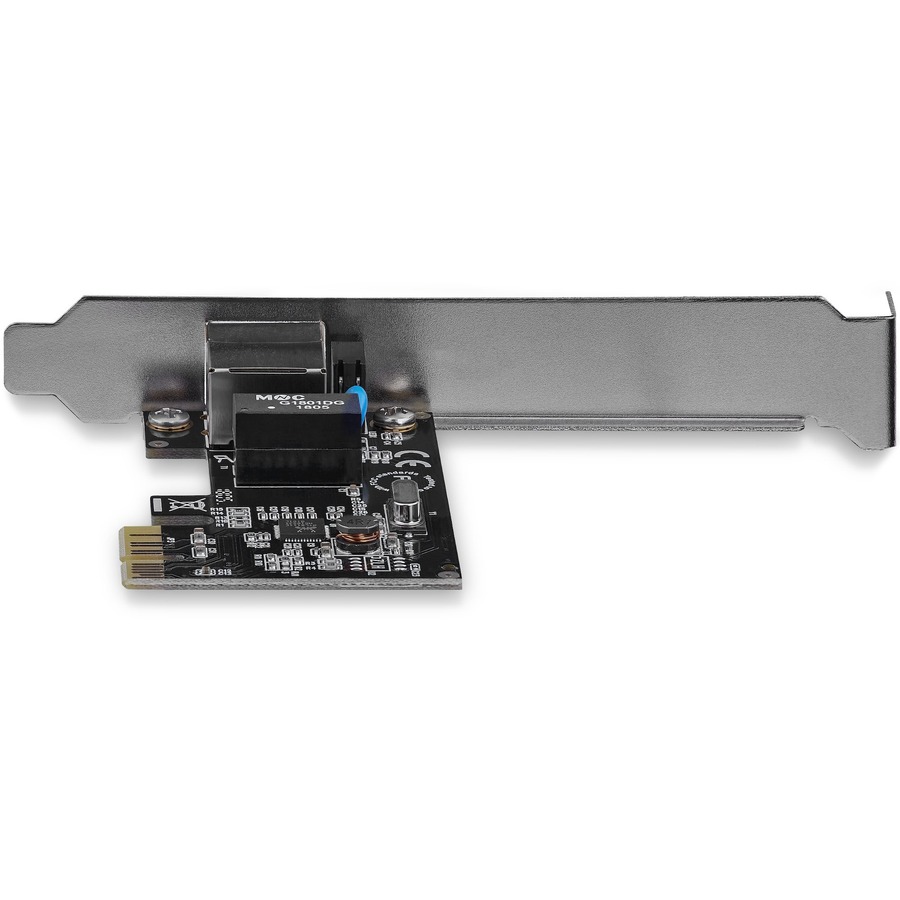

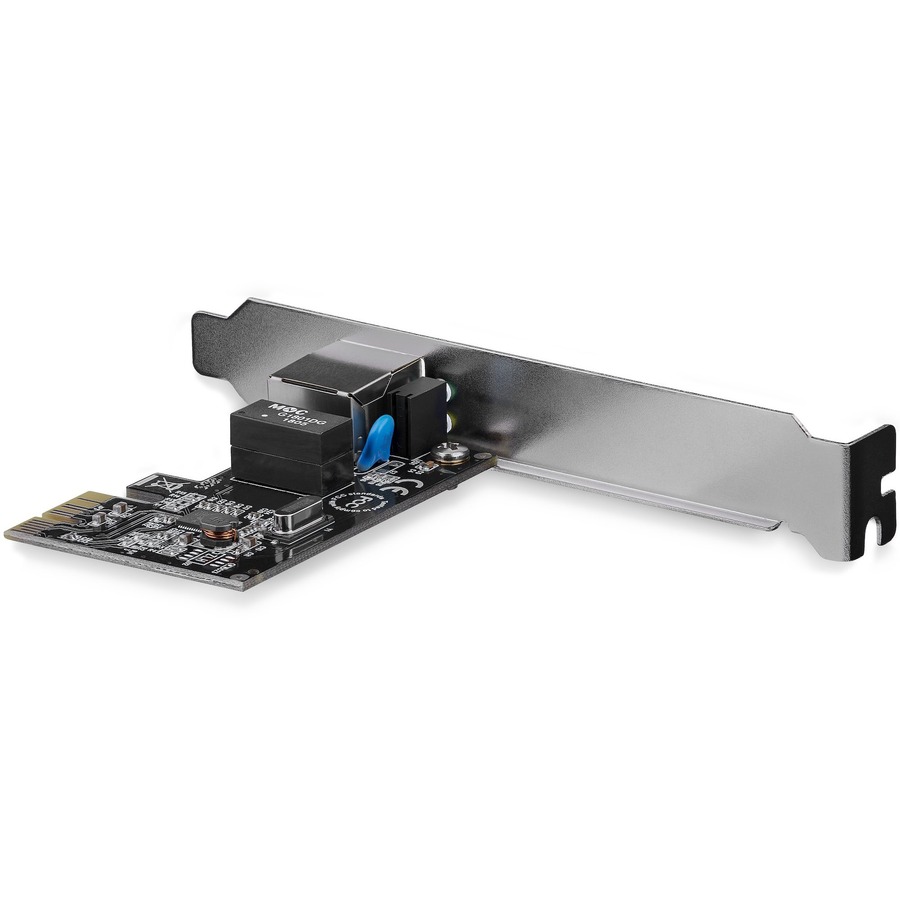

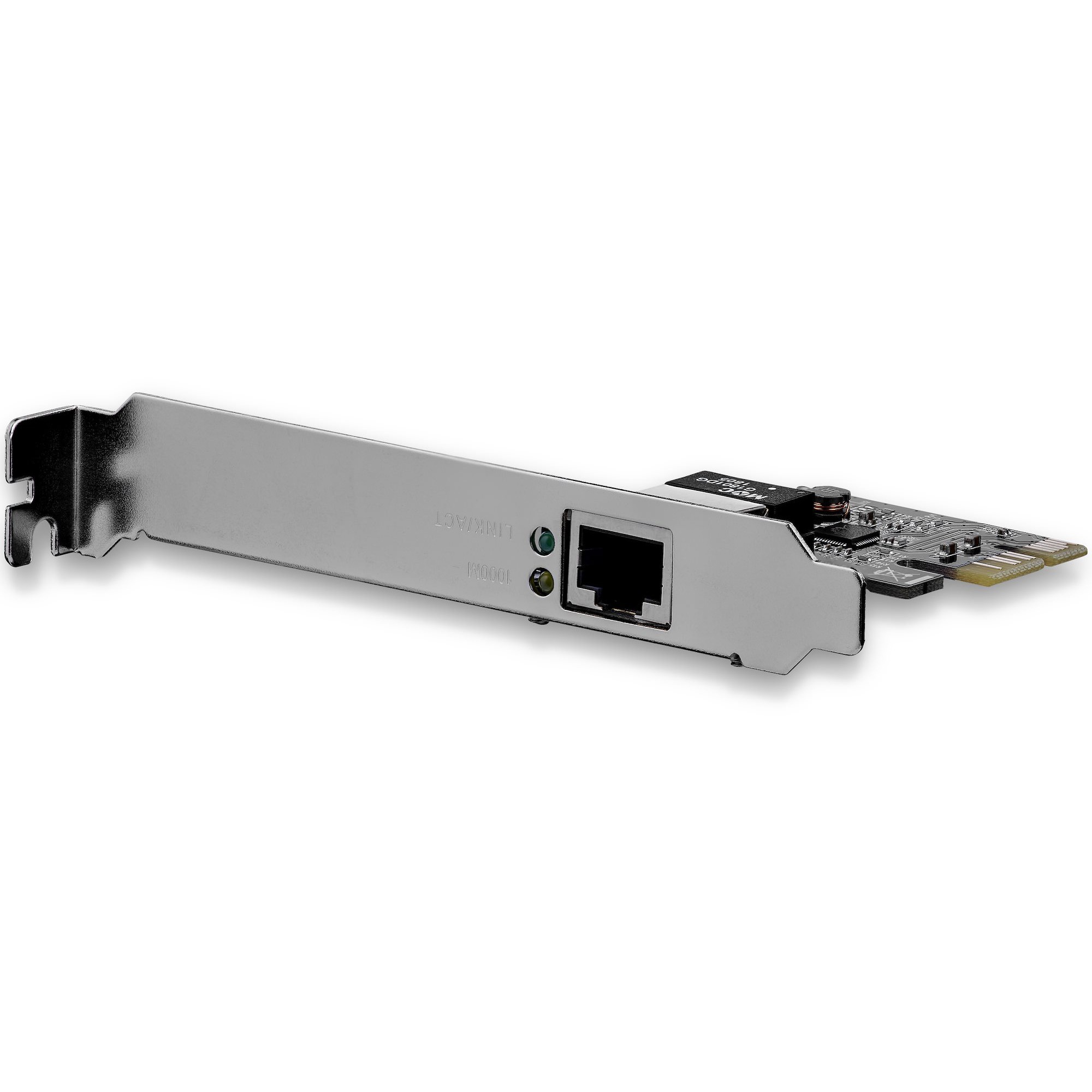

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card – Dual Profile
Login to view prices
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

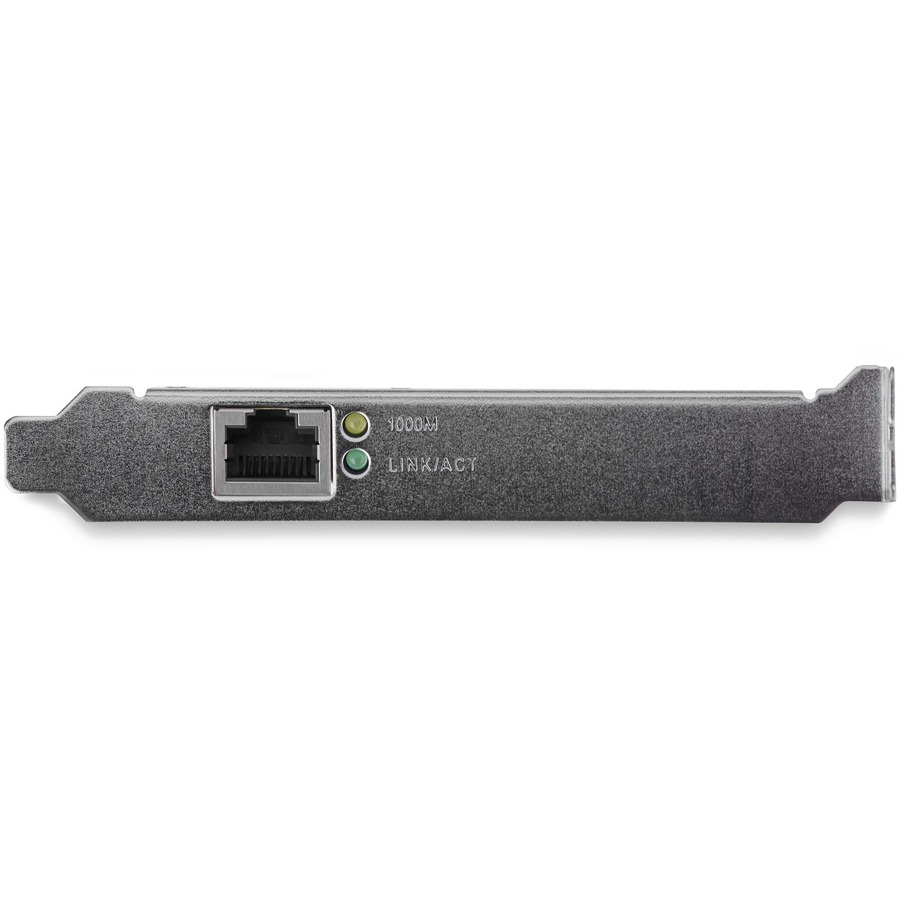

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
- Includes a low profile/half-height installation bracket
- Supports Wake-on-LAN function
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
- Jumbo frame support
- Full and half duplex support
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
- Gigabit detection and Link/Activity LED indicators
- A single 10/100/1000Mbps compatible RJ45 Ethernet port
Additional information
| Weight | 1.3000 lbs |
|---|---|
| Dimensions | 6.75 × 4.70 × 0.70 in |
| Package Contents | <ul> <li>1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card – Dual Profile</li> <li>1 x Low Profile Bracket</li> <li>1 x Instruction Manual</li> </ul> |
| Chipset Model | RTL8111 |
| Data Transfer Rate | 125 MB/s |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) P | 1 |
| Chipset Manufacturer | Realtek |
| Product Type | Gigabit Ethernet Card |
| Form Factor | Plug-in Card |
| Device Supported | PC |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Host Interface | PCI Express x1 |
| Limited Warranty | 2 Year |
| Packaged Quantity | 1 |
| Manufacturer Website Addres | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS,REACH,WEEE |
| Country of Origin | China |
| Manufacturer | StarTech.com |
| UPC | 0065030849265 |
| MPN | ST1000SPEX2 |
| Brand | StarTech.com |
