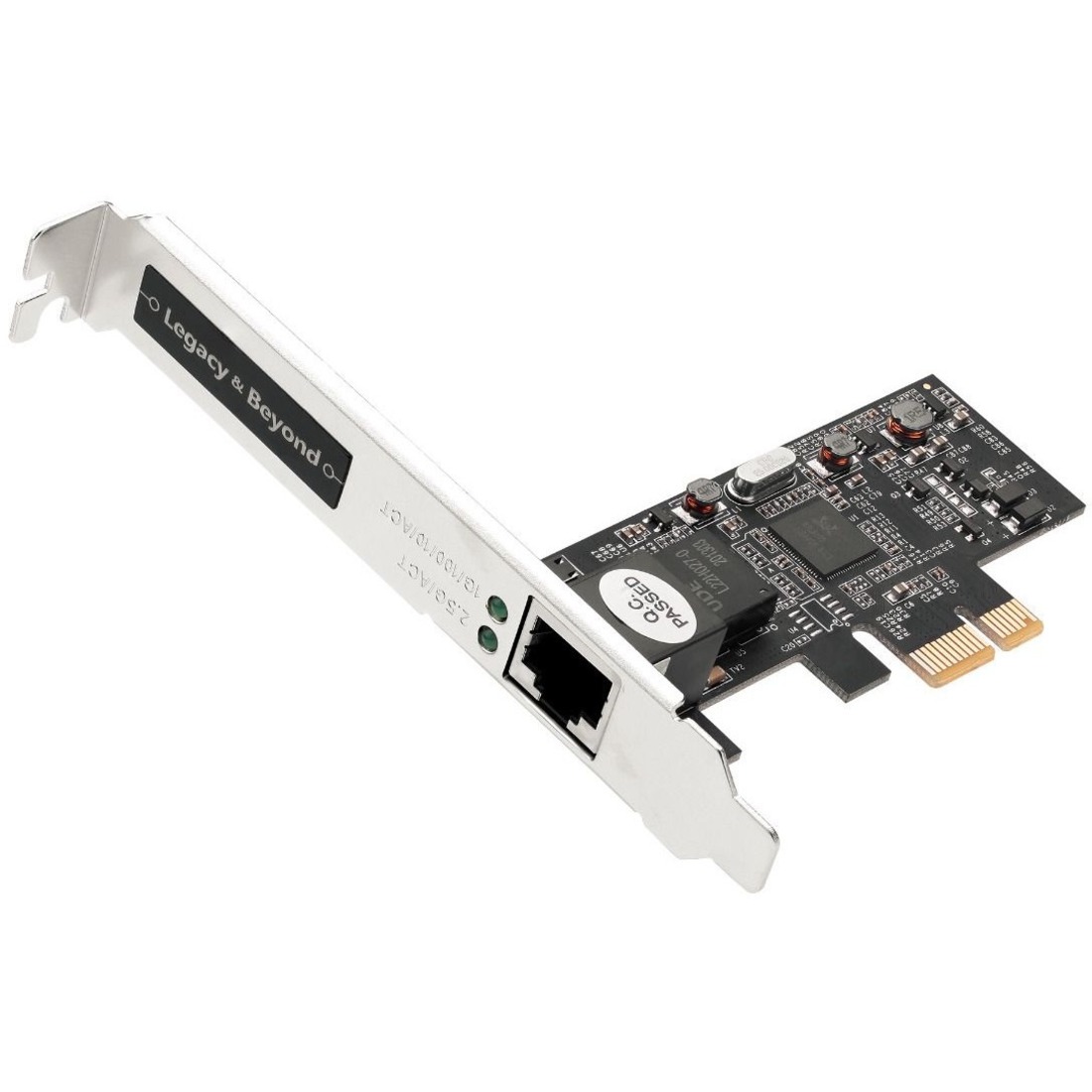

SIIG Single 2.5G 4-Speed Multi Gigabit Ethernet PCIe Card
Login to View Prices

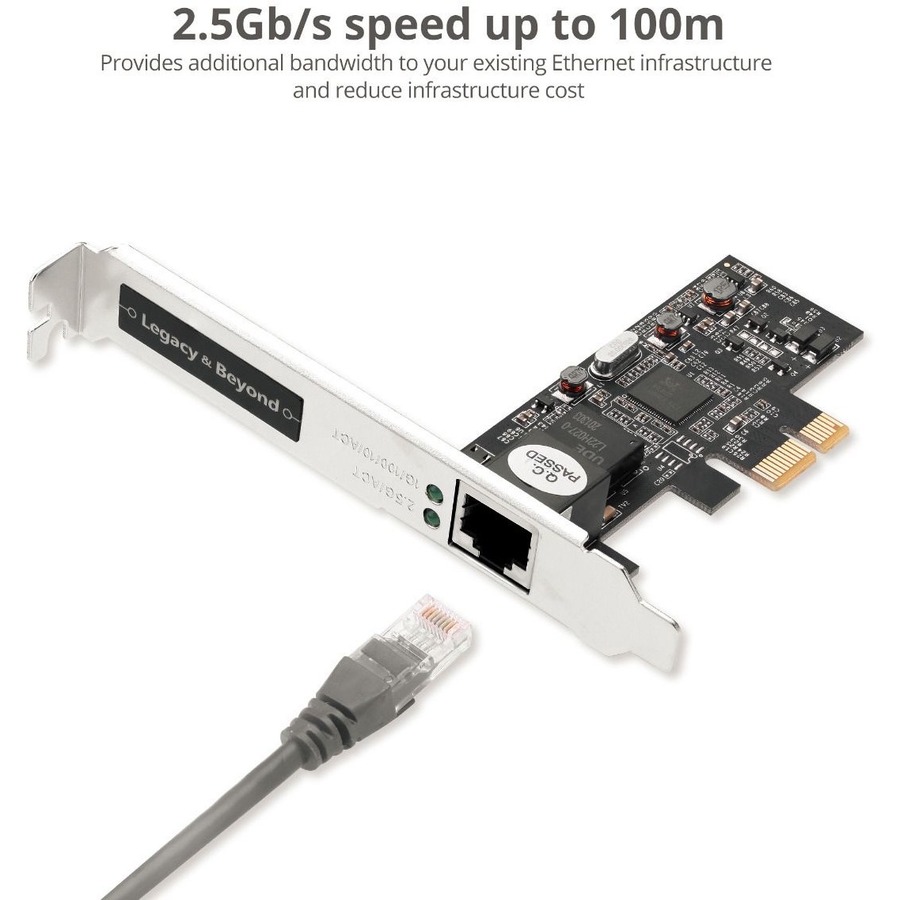

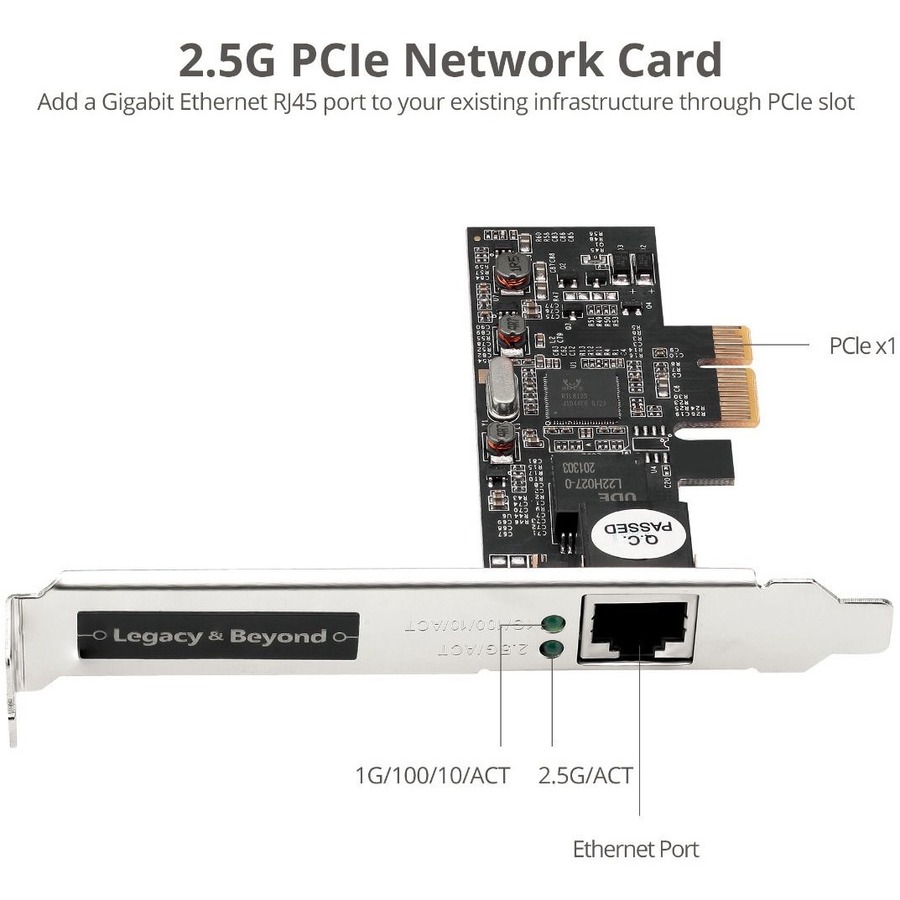

Adds multi-gigabit Ethernet capability to your server or desktop computer, quickly enable 2.5G, 1G, 100Mbps, or 10Mbps connection over a single RJ45 connection

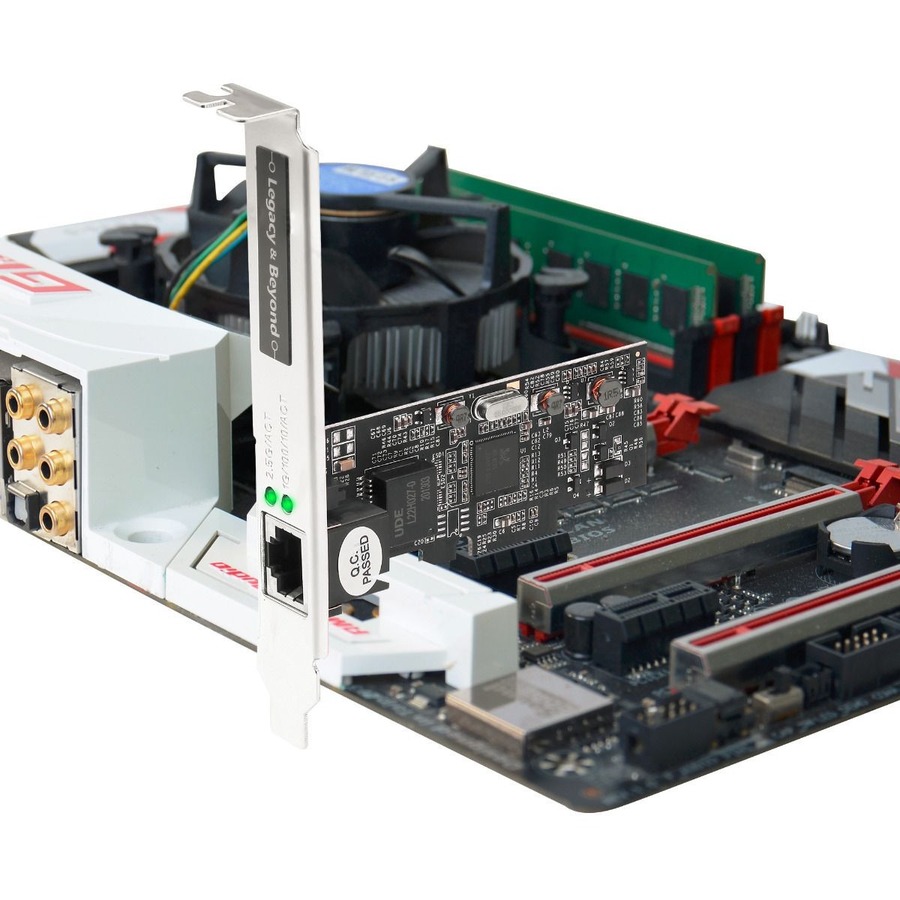

- Easily add a multi-Gigabit Ethernet port through an available x1 PCIe slot to server and desktop computers
- Compliant with PCI Express Specification Revision 2.1
- Compatible with NBASE-TTM Alliance PHY Specification
- Supports 4 Multi-Speed of 10M/100M/1Gbps/2.5Gbps Ethernet data rates
- Compatible with IEEE 802.3, 802.3u, 802.3a, IEEE 802.3bz (2.5GBase-T), IEEE 802.1Q VLAN tagging, IEEE 802.3az (Energy Efficient Ethernet)
- Supports jumbo frame to 16K bytes for higher and better data throughput
- Supports Full Duplex flow control IEEE 802.3x
- Supports Wake-On-LAN and ‘RealWoW!’ Technology (Remote wake-up)

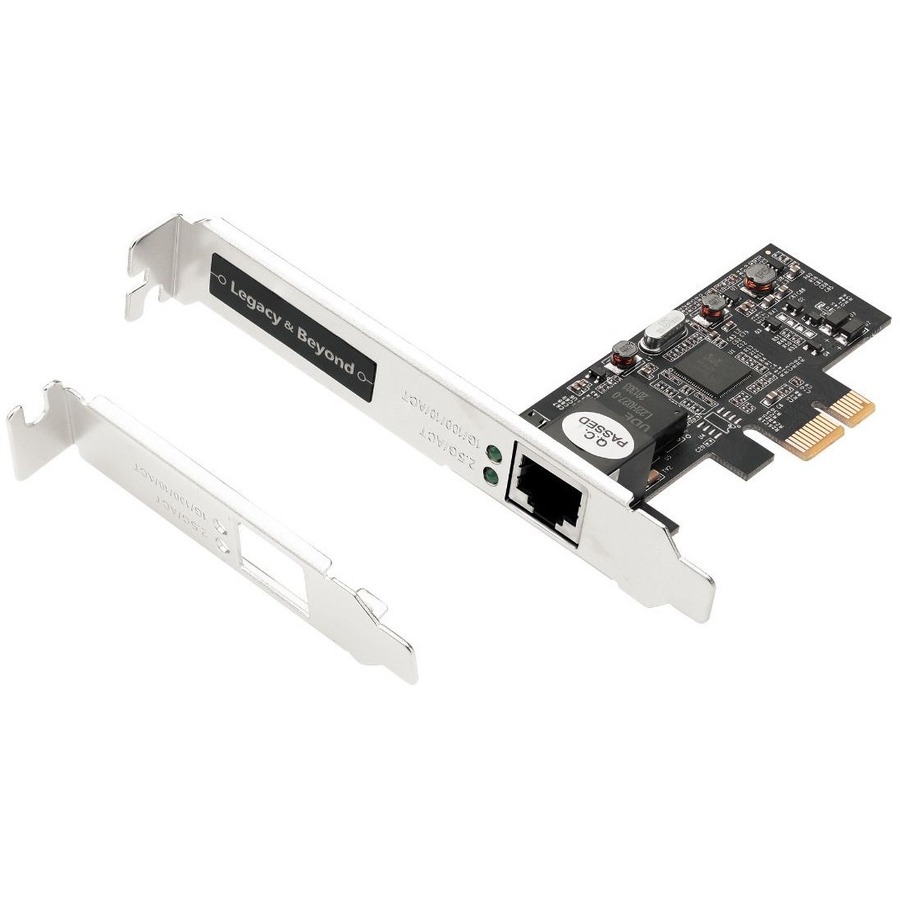

- Fits both standard and low profile system chassis with the included spare low profile bracket
- Easily add a multi-Gigabit Ethernet port through an available x1 PCIe slot to server and desktop computers
- Compliant with PCI Express Specification Revision 2.1
- Compatible with NBASE-TTM Alliance PHY Specification
- Supports 4 Multi-Speed of 10M/100M/1Gbps/2.5Gbps Ethernet data rates
- Compatible with IEEE 802.3, 802.3u, 802.3a, IEEE 802.3bz (2.5GBase-T), IEEE 802.1Q VLAN tagging, IEEE 802.3az (Energy Efficient Ethernet)
- Supports jumbo frame to 16K bytes for higher and better data throughput
- Supports Full Duplex flow control IEEE 802.3x
- Supports Wake-On-LAN and ‘RealWoW!’ Technology (Remote wake-up)
- Fits both standard and low profile system chassis with the included spare low profile bracket
Additional information
| Weight | 1.4400 lbs |
|---|---|
| Dimensions | 4.70 × 3.50 × 0.80 in |
| Manufacturer | SIIG, Inc |
| Manufacturer Website Addres | |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) P | 1 |
| Product Type | 2.5Gigabit Ethernet Adapter |
| Network Technology | 2.5GBase-T |
| Form Factor | Plug-in Card |

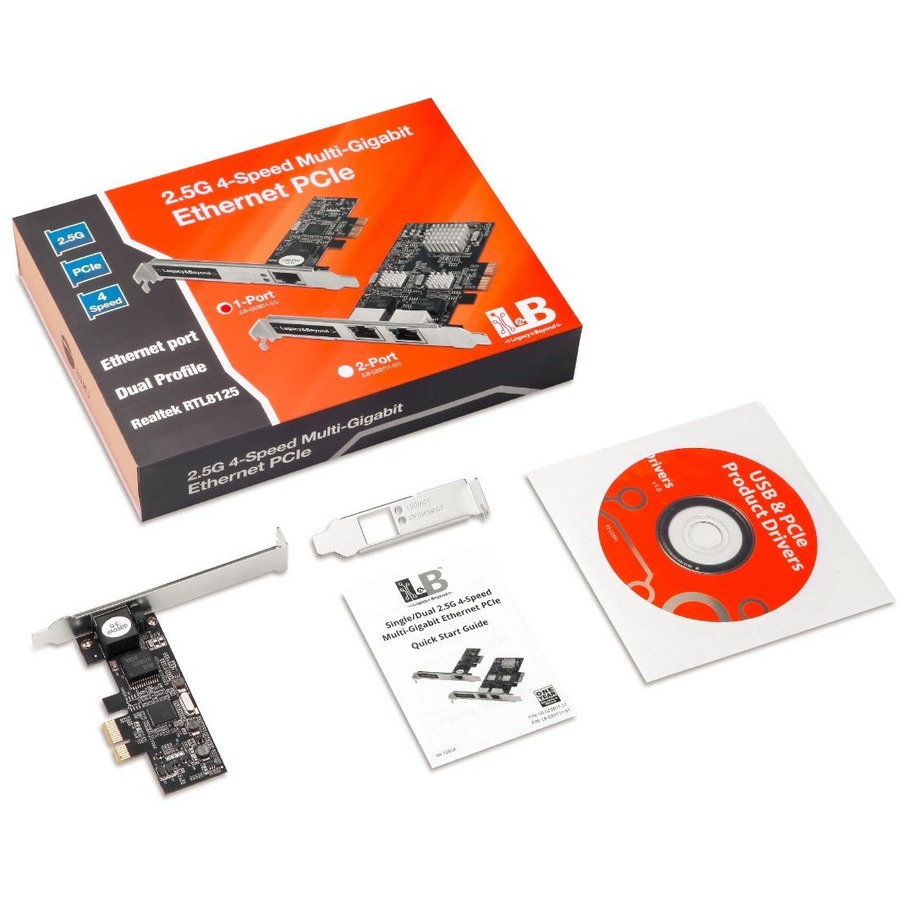

| Package Contents | <ul> <li>Single 2.5G 4-Speed Multi-Gigabit Ethernet PCIe Card</li> <li>Driver CD</li> <li>Low Profile Bracket</li> <li>Quick Start Guide</li> </ul> |
| Device Supported | Computer/Server |
| Media Type Supported | Twisted Pair |
| Limited Warranty | 1 Year |
| Host Interface | PCI Express 2.1 x1 |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Country of Origin | China |
| UPC | 0 |
| MPN | LB-GE0611-S1 |
| Brand | SIIG |
