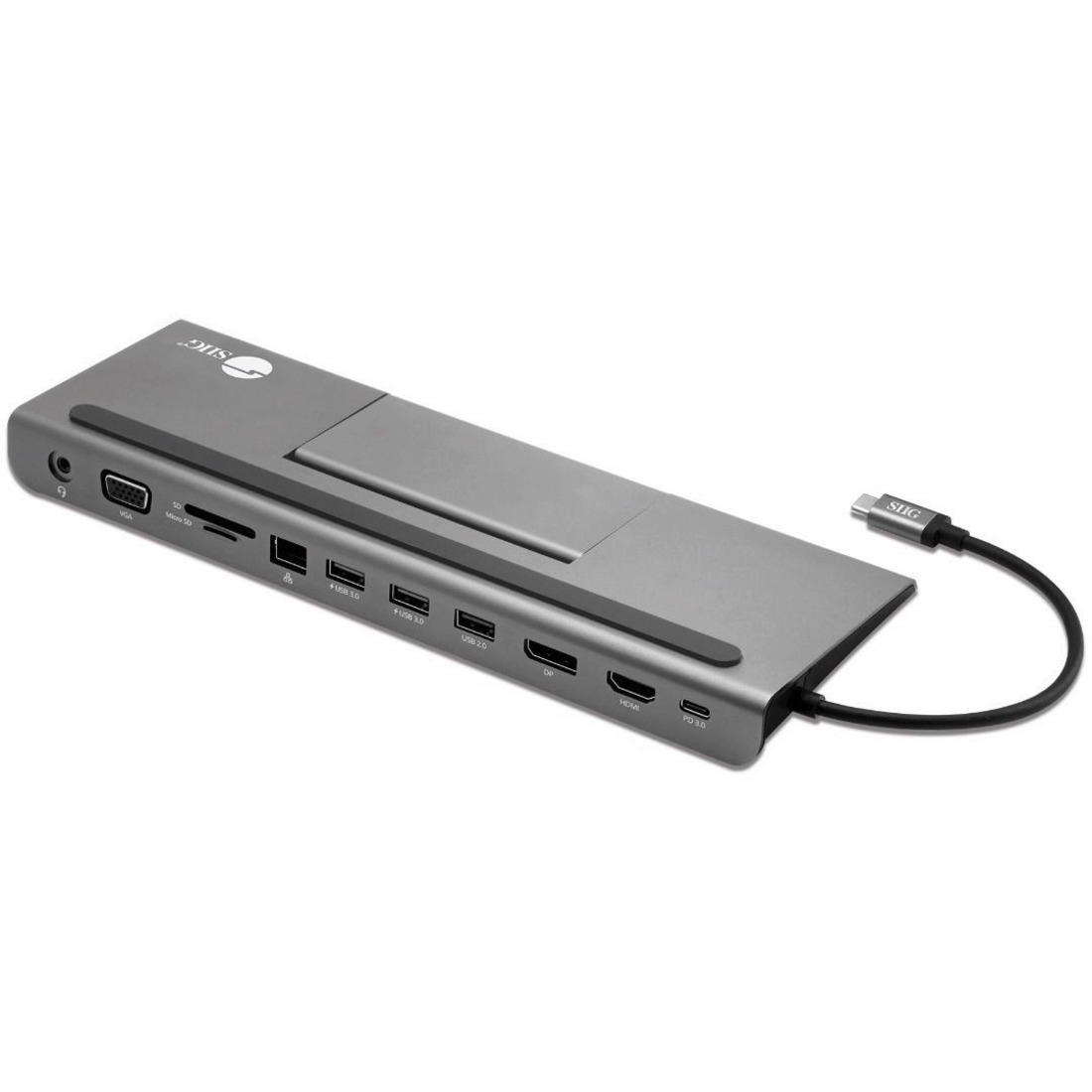

SIIG Aluminum USB-C MST Video Docking Station with 100W PD
Login to View Prices
Versatile external docking station adds multiple connectivity ports to USB-C enabled computers and up to 100W PD charging of your laptop

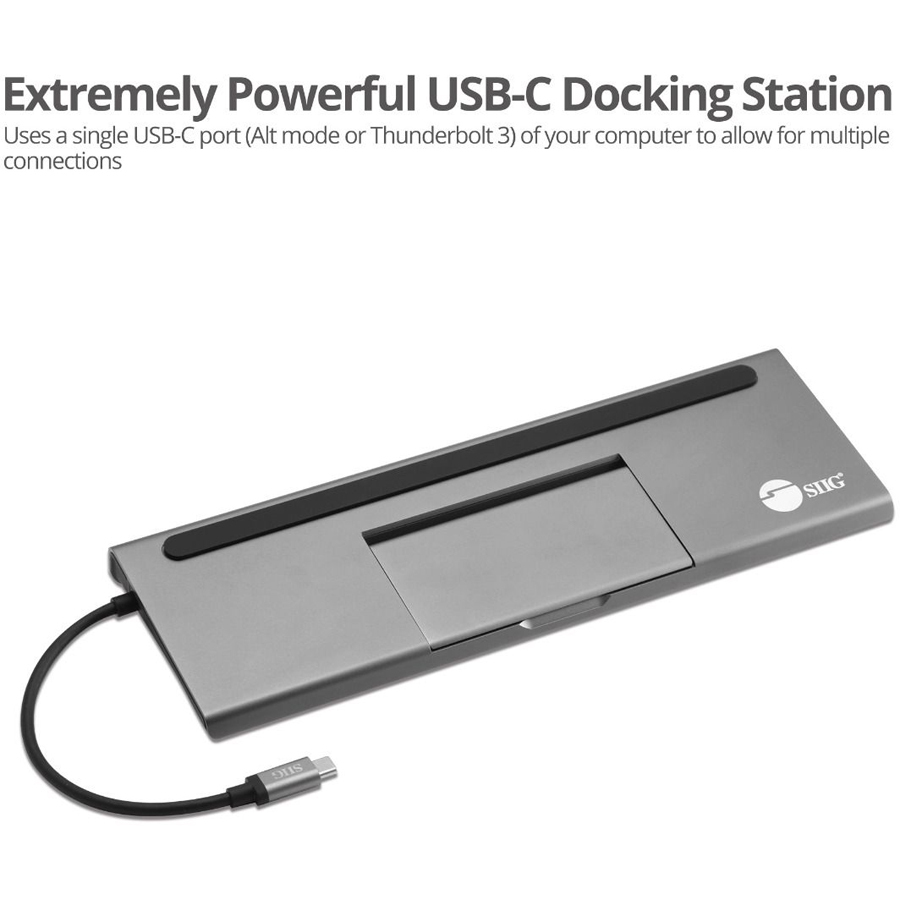

- Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including up to three simultaneous video outputs

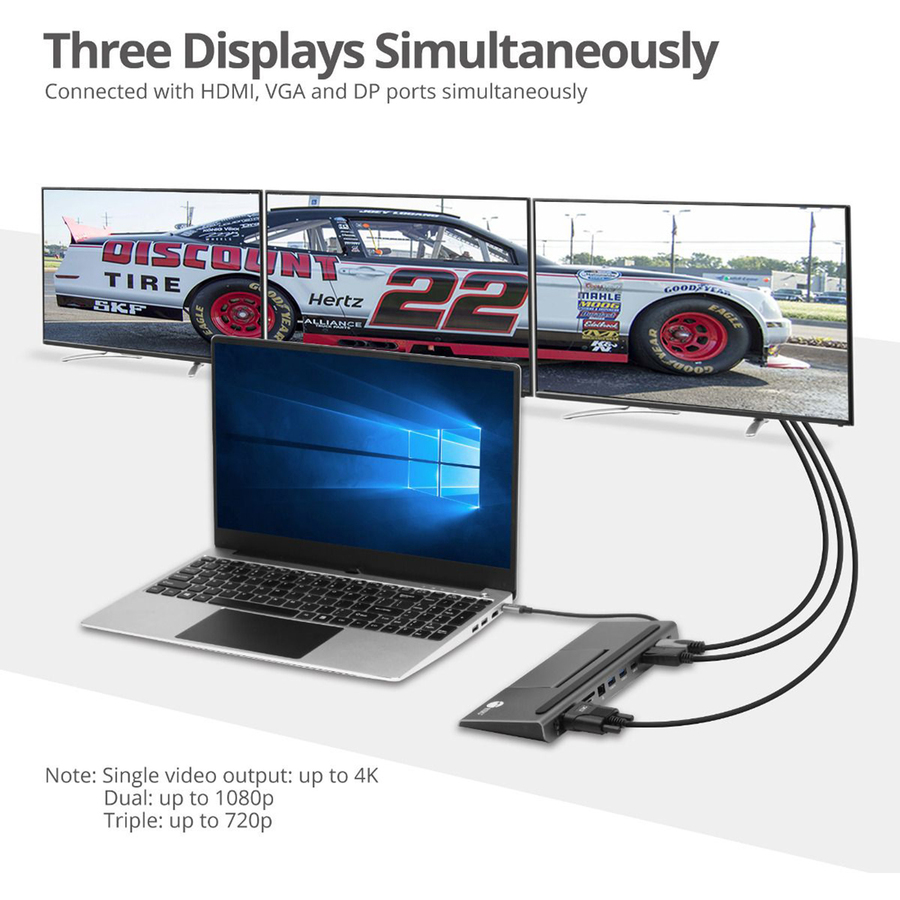

- DisplayPort Multi Stream Transport (MST) Technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs (HDMI/DP, DP/VGA, HDMI/VGA) or triple HD 720p video outputs
Note: Video Wall mode requires either a AMD Eyefinity, Intel , or NVIDIA Surround technology graphics adapter
- Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

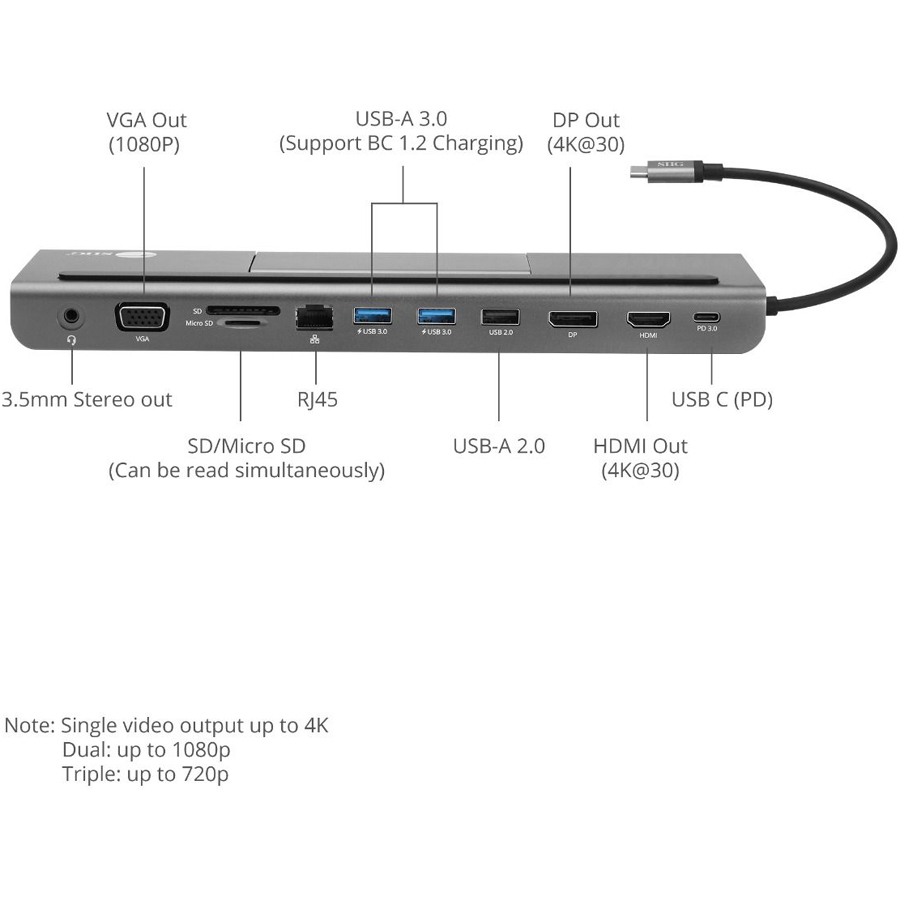

- Adds one USB-C port, two USB 3.0 (with BC 1.2 charging), one USB 2.0 port, one HDMI, one DisplayPort, one VGA port, one Gigabit Ethernet port, a headphone audio jack, SD/TF (Micro SD) Reader and one USB-C PD 3.0 port

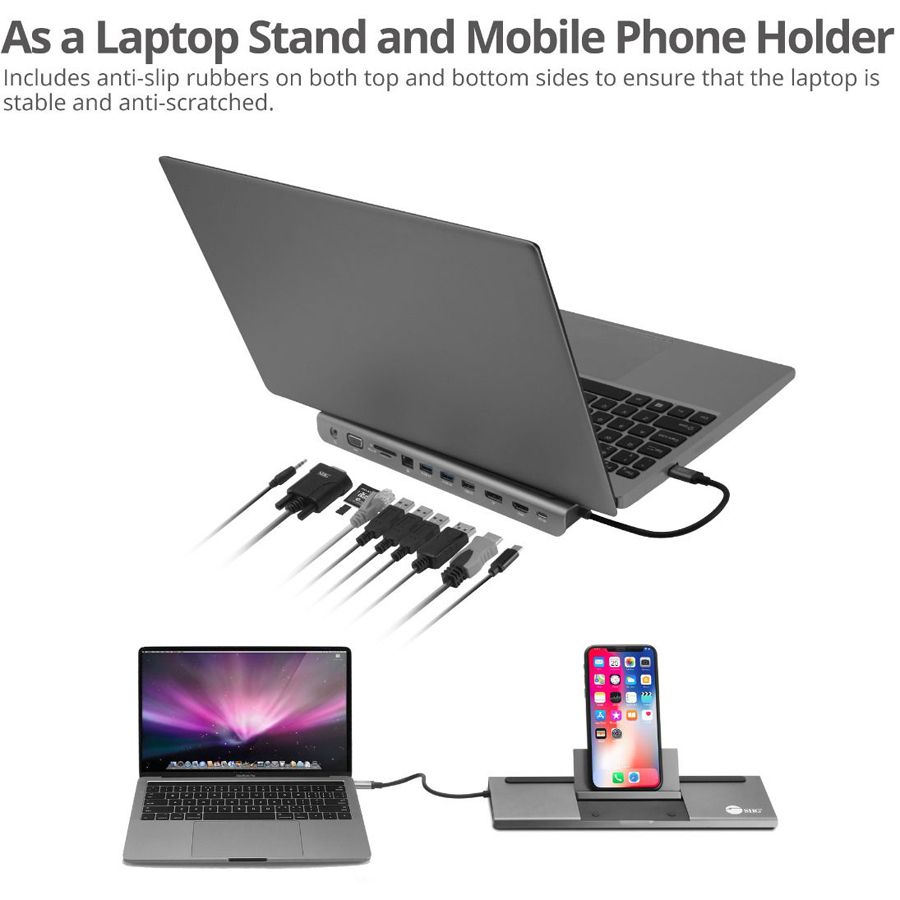

- Acts as a laptop stand and Tablet/Cell phone holder with handy flip-up stand, non-slip top and bottom surfaces ensures that devices are stable and protected
- Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance
Additional information
| Weight | 12.3200 lbs |
|---|---|
| Dimensions | 3.54 × 10.24 × 0.95 in |
| Headphone/Microphone Combo | Yes |
| Number of USB 2.0 Ports | 1 |
| Audio Line Out | Yes |
| Manufacturer | SIIG, Inc |
| Manufacturer Website Addres | |
| Thunderbolt | Yes |
| Connectivity Technology | Wired |
| Number of HDMI Outputs | 1 |
| Number of USB 3.0 Ports | 2 |
| Product Type | Docking Station |
| HDMI | Yes |
| DisplayPort | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattag | 100 W |
| Host Interface | USB Type C |
| Device Supported | Notebook/Desktop PC |
| USB Type-C Detail | 24-pin, USB-C, Female |

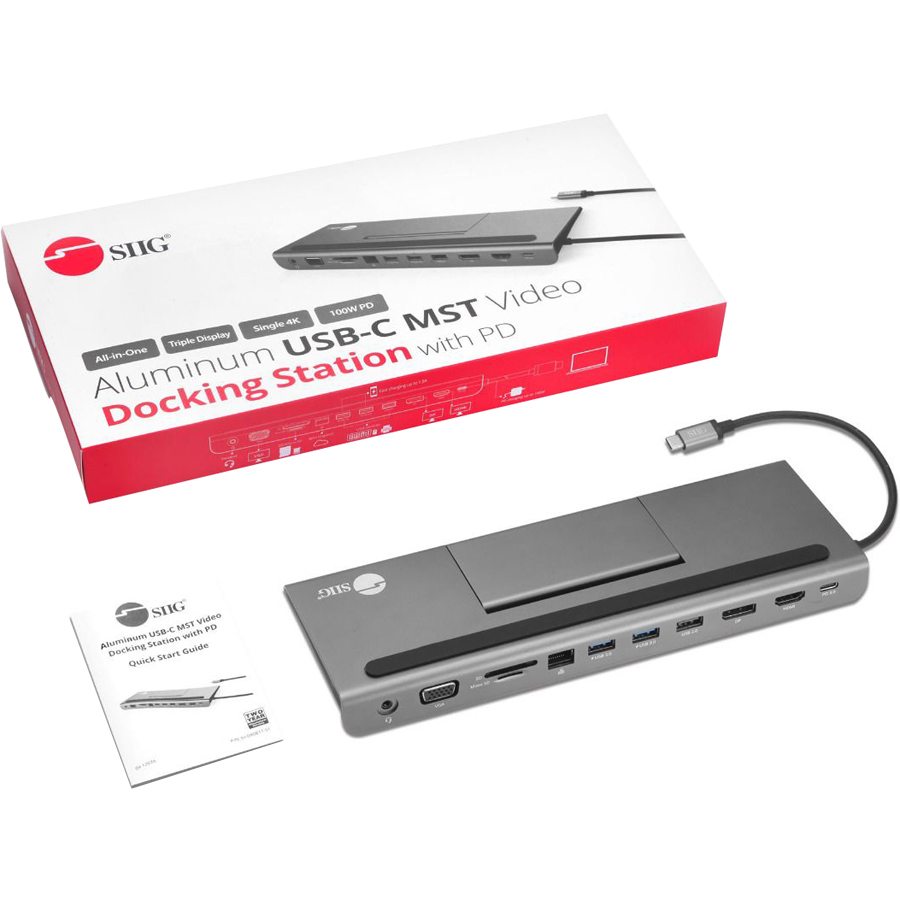

| Package Contents | <ul> <li>Aluminum USB-C MST Video Docking Station with PD</li> <li>User Reference Guide</li> </ul> |
| Compatibility | <ul> <li>Mac OS 10.13 or later</li> </ul> <b>Windows Compatibilty:<br /></b> <ul> <li>10</li> <li>8</li> <li>7</li> </ul> <p></p> |
| Number of DisplayPort Outpu | 1 |
| Limited Warranty | 2 Year |
| VGA | Yes |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| UPC | 0 |
| MPN | JU-DK0E11-S1 |
| Brand | SIIG |
