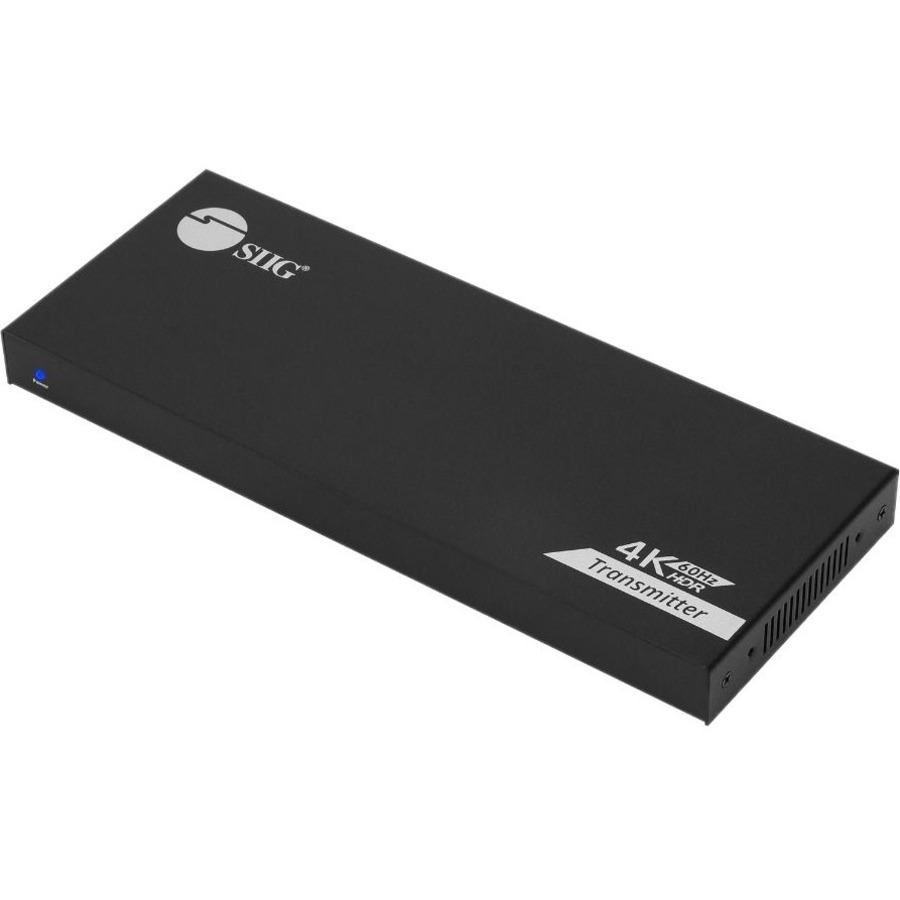

SIIG 1×4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 – Up to 230ft (70m) – Near Zero Latency
Login to View Prices
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, four HDMI video output ports, eight RJ45 network ports, five 3.5mm IR emitter ports, five 3.5mm IR receiver ports, four S/PDIF ports, one RS-232 terminal block, one DIP switch, five reset buttons, four audio slide switches, one DC power jack (12V/2A) for TX, four DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
- 4K HDMI Extension – Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 4 displays
- Advanced Transmission Technology – Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 4 Displays – Supports one HDMI loop-out for additional local display connections and extender 4 receivers for HDTV or Projector via Cat6/7 cable
- EDID Management – Support EDID management capability to controls the resolution output to the display(s)
- Audio Extraction – Extracts digital audio from the HDMI signal and routes it through the receiver’s digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control – Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction – Through the Toslink connection of the Receiver (RX)
- RS-232 Control – Support RS-232 command control in the Transmitter
- Protection – Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design – High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Additional information
| Maximum Operating Distance | 229.66 ft |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer | SIIG, Inc |
| Manufacturer Website Addres | |
| Connectivity Technology | Wired |
| Number of Output Devices Su | 4 |
| Twisted Pair Cable Standard | Category 7 |
| HDMI Out | Yes |
| Number of HDMI Outputs | 5 |
| Number of Network (RJ-45) P | 8 |
| HDMI In | Yes |
| Graphics Modes | 4K |
| Number of HDMI Inputs | 1 |
| Number of Input Devices Sup | 1 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Transmitter Height | 0.91" |
| Transmitter Depth | 4.09" |
| Package Contents | <ul> <li>1 x Transmitter</li> <li>4 x Receiver</li> <li>5 x Power Adapter </li> <li>1 x IR Blaster extension cable </li> <li>4 x IR Receiver extension cable </li> <li>Terminal block</li> <li>Mounting kit</li> <li>User Manual</li> </ul> |
| Transmitter Weight (Approxi | 1.46 lb |
| Receiver Weight (Approximat | 8.64 oz |
| Receiver Width | 4.15" |
| Receiver Depth | 4.04" |
| Receiver Height | 0.79" |
| Transmitter Width | 10.43" |
| Limited Warranty | 2 Year |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Country of Origin | China |
| UPC | 662774045276 |
| MPN | CE-H27A11-S1 |
| Brand | SIIG |
