SEH INU-100 Device Server

The Industrial Solution for USB Remote Access! | Fast USB via Remote Access

The INU-100 USB Deviceserver integrates almost every non-network-ready USB device into the most diverse industrial environments with TCP/IP networks. The connected USB devices can be controlled flexibly and remotely, just as your individual environment requires it. The connection merely has to be established manually or automatically with the corresponding software tool SEH UTN Manager.

USB 3.0 assures data transmission at future-proof top speeds

Perfect Industrial Fit

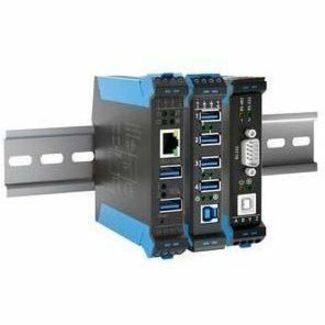

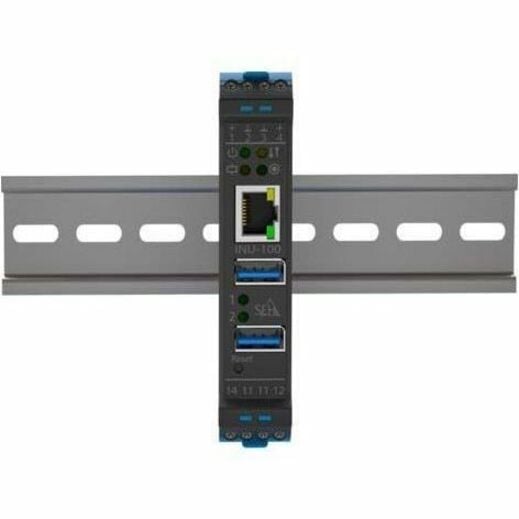

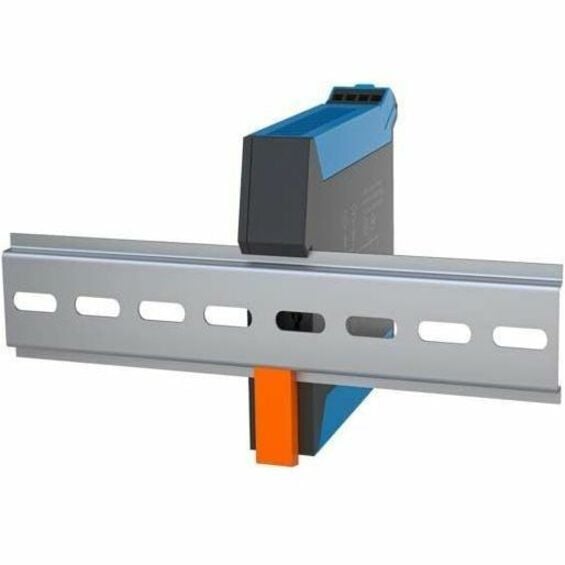

The INU-100 is mounted on a top-hat rail (DIN EN 60715, 35 mm wide). Thus it can be installed in control cabinets and racks without a hassle. The power supply can be chosen freely between 12 V and 48 V.

A multitude of USB devices can be connected, including USB2serial adapters which permit integration of serial devices.

In addition, another device can be connected via the integrated relay. This device can then be controlled automatically or manually. Thus a wide range of applications can be tailored to and implemented in your environment!

Highly Available and Redundant

In productive environments devices must work reliably and as failure-free as possible.

And the INU-100 does: It can be connected to two power supplies and has an automatic configuration backup to SD card. Numerous notifications inform the person responsible in case of events and errors, so that the incidents can be diagnosed and resolved.

• 2 � USB 3.0 SuperSpeed ports – 1 connected USB device: 65MB/s – 2 connected USB devices: 40MB/s per port
• Change over (CO) relay
• Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT)
• VLAN (802.1Q)
• Comprehensive security package: encryption, password protection, certificate management, authentication (802.1X), and much more!
• Regular software updates, technical support worldwide for free
• Up to 5 years of guarantee
