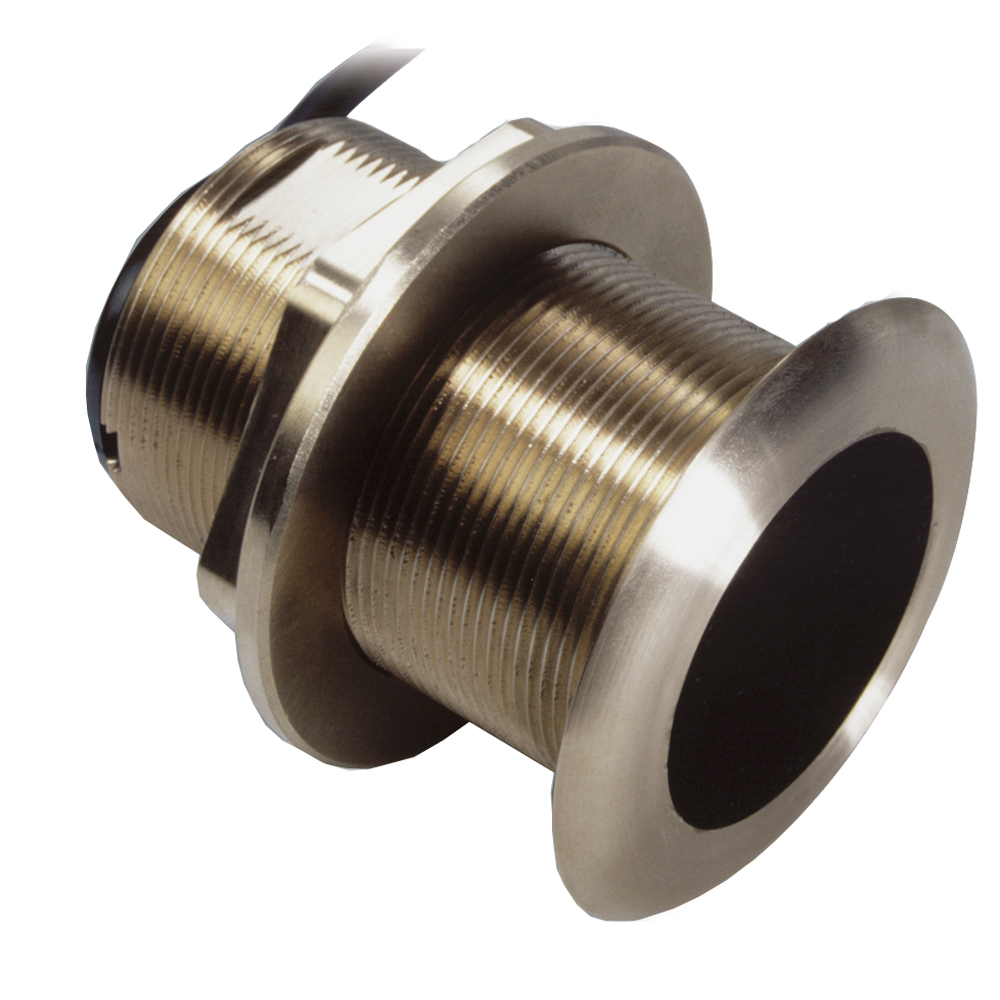

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30

B60 Tilted Element™ 20°

20° titled version is designed for 16° – 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp
• 50/200 kHz
• 600w RMS
• Mid-performance
• Bronze

Manufacturer : Raymarine
Manufacturer Part No : E66085
UPC : 723193660850
