QNAP Turbo NAS TS-453E-8G SAN/NAS Storage System
Login to View Prices
TS-453E | Dual 2.5GbE, 8GB RAM, and long-term availability
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

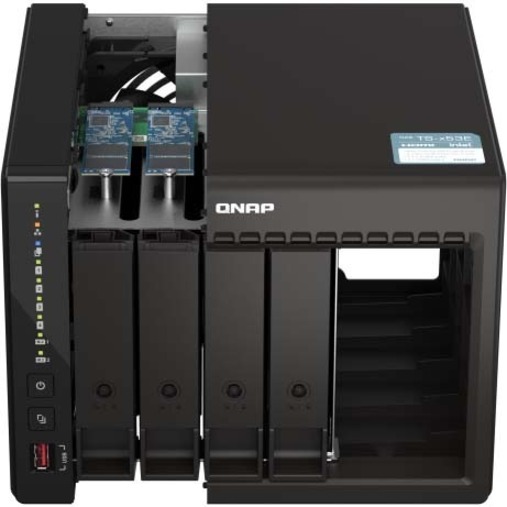

Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.

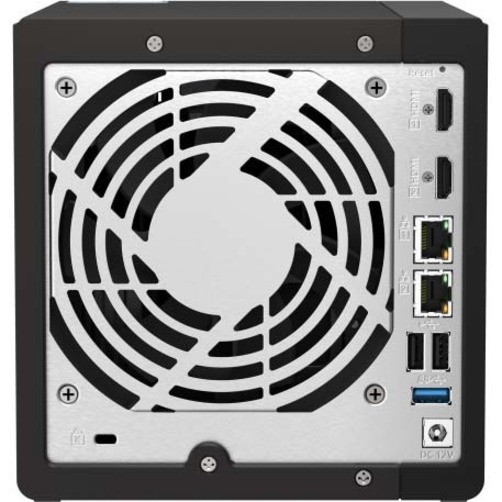

Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures.
Available Models | TS-453E-8G
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz, 8 GB on board
Intel quad-core processor burst up to 2.6 GHz with AES-NI encryption
Processor
Intel® Celeron® J6412 quad-core processor (burst up to 2.6GHz)
RAM
Onboard 8GB (non-expandable)
Encryption
The Intel® AES-NI encryption engine boosts encryption performance while maintaining the confidentiality of NAS data.
USB ports
2 x USB 3.2 Gen2
2 x USB 2.0
Long-term availability
The TS-453E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-453E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-453E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
Record/monitor your environment
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-453E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Supports up to 4 drives; for flexible storage options
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Tower form factor for added reliability and dependability
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- QTS 5.0.1 OS with all the creative and productive tools you need
Additional information
| Weight | 6.6100 lbs |
|---|---|
| Dimensions | 9.30 × 7.10 × 7.00 in |
| Operating System | QTS 5.0.1 |
| Flash Memory Capacity | 4 GB |
| Manufacturer | QNAP Systems |
| Manufacturer Website Addres | |
| Number of Total Expansion B | 4 |
| Processor Core | Quad-core (4 Core) |
| Number of Solid State Drive | 4 |
| Number of Hard Drives Insta | 0 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Hard Drives Suppo | 4 |
| Standard Memory | 8 GB |
| Number of Network (RJ-45) P | 2 |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Product Type | SAN/NAS Storage System |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Number of Processors Instal | 1 |
| Product Line | Turbo NAS |
| Processor Speed | 2 GHz |
| Protocols | IPv4,IPv6,DHCP,CIFS/SMB,AFP,NFSv3,FTP,FTPS,SFTP,TFTP,HTTP,HTTPS,Telnet,SSH,iSCSI,SNMP,SSL/TLS,FXP,WEBDAV,LDAP,DDNS,DNS,SNMPv2,SNMPv3,PPTP,L2TP,NFSv4 |
| Number of USB 2.0 Ports | 2 |
| Maximum Power Supply Wattag | 90 W |
| Form Factor | Tower |
| Processor Type | Celeron |
| Number of USB 3.2 Gen 2 Por | 2 |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Processor Manufacturer | Intel |
| Total Number of USB Ports | 4 |
| Limited Warranty | 3 Year |
| Product Model | TS-453E-8G |
| Package Contents | <ul> <li>Turbo NAS TS-453E-8G SAN/NAS Storage System</li> <li>1 x Ethernet Cable</li> <li>1 x Power Cord</li> <li>AC Adapter</li> <li>2 x Flat Head Screw (for M.2 SSD)</li> <li>16 x Flat Head Screw (for 3.5" HDD)</li> <li>12 x Flat Head Screw (for 2.5" HDD)</li> <li>Quick Installation Guide (QIG)</li> <li>2 x Drive Tray Keys</li> </ul> |
| Product Series | TS-x53E |
| Number of 2.5"/3.5" Bays | 4 |
| Additional Warranty Informa | The TS-453E is backed by a 3-year warranty at no additional cost |
| Processor Model | J6412 |
| UPC | 0 |
| MPN | TS-453E-8G-US |
| Brand | QNAP |
