NetAlly LinkRunner LR10G-100 Network Testing Device
Login to View Prices
Cost-Effective, Line-Rate 10Gig Ethernet Testing
- Quickly test, verify, and troubleshoot 1Gig, Multi-Gig and 10Gig Ethernet (copper, fiber) including line-rate performance testing and packet capture
- Layer 1 – 7 AutoTest enables any technician to find network problems
- Monitor networks for intermittent issues, every minute for up to 24 hours
Overview
Introducing the new LinkRunner 10G, the most cost-effective solution for 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.
This next-generation Android-based tester delivers complete network validation and troubleshooting, from the media (copper/fiber) to the application (layers 1 – 7), accelerating deployments, speeding problem identification, and improving the efficiency and effectiveness of network installers and operations teams.
Key Features
- Install, test, verify, and troubleshoot technology upgrades, Multi-Gig (NBASE-T) and 10G networks with advanced AndroidTM-based troubleshooting apps and purpose-built test hardware
- Physical layer testing includes cable (TDR) testing, toning, wiremapping, and cable SNR (Signal-to-Noise Ratio) for multi-gig links
- Compatibility with standards compliant SFPs enables test and validation of any wired media (copper or fiber) for a variety of use models
- Validate up to 90W 802.3bt PSE with TruePower™ loaded Power over Ethernet (PoE) test
- Serves as a peer to the EtherScope nXG for line-rate performance testing to verify network capacity, performance and QoS, as well as service provider SLAs between sites
- Programmable periodic AutoTest monitors for intermittent issues with email notifications through the Link-Live cloud service
- Separate management port enables secure “out of band” remote control so centralized experts can efficiently assist technicians in the field
- Optional USB Wi-Fi/Bluetooth adapter for connectivity and remote control.
- Seamlessly consolidate and manage field test data, automate reporting, and integrate with network management systems via complimentary Link-Live Cloud Service
Additional information
| Weight | 1.6800 lbs |
|---|---|
| Dimensions | 2.20 × 4.10 × 7.70 in |
| USB | Yes |
| Manufacturer | NetAlly |
| Manufacturer Website Addres | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standard | 10GBase-T,10GBase-X |
| Battery Size Supported | 7.2V |
| Device Function | Network Testing,Twisted Pair Cable Testing,Open Circuit Testing,Short Circuit Testing,Split Pair Testing,Crossed Pair Testing,Wiremap,PoE Testing |
| Product Model | LR10G-100 |
| Product Type | Network Testing Device |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Line | LinkRunner |
| Battery Rechargeable | Yes |
| Display Screen Type | LCD |

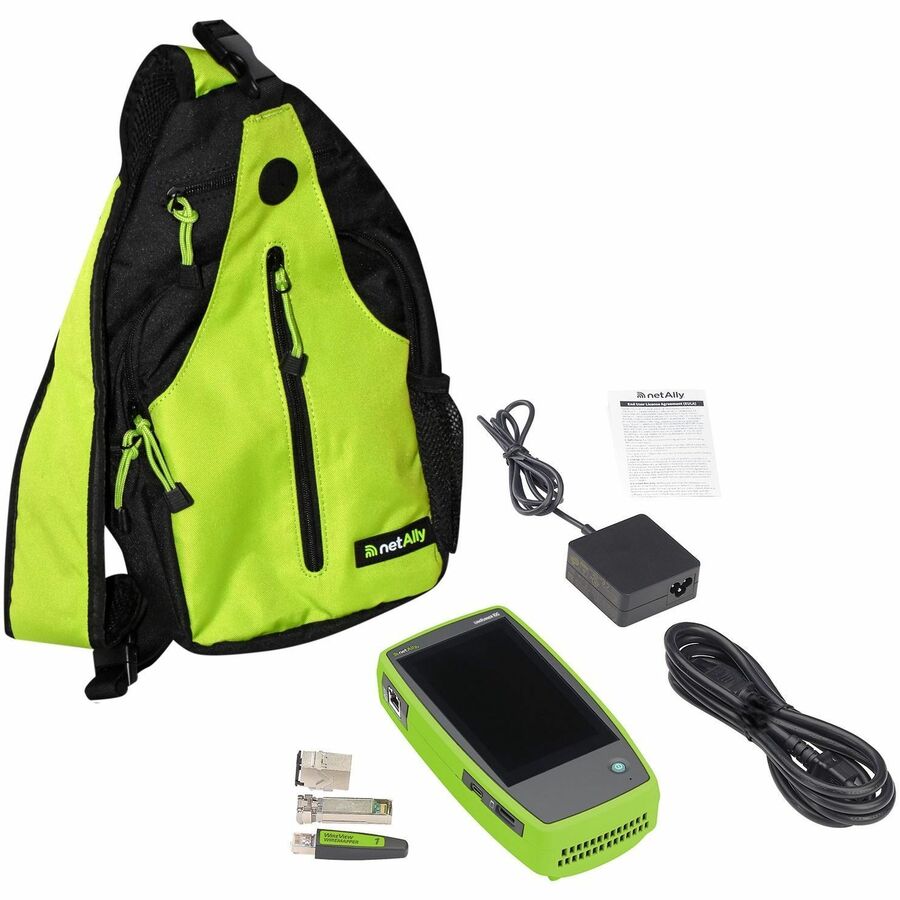

| Package Contents | <ul><li> LinkRunner LR10G-100 Network Testing Device</li><li> 1 Year of AllyCare Support</li><li> G3-PWRADAPTER</li><li> SFP+MR-10G850</li><li> RJ-45 Inline Coupler</li><li> WIREVIEW 1</li><li> Quick Start Guide</li><li> Shoulder Sling Bag</li></ul> |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Expansion Slot Type | SFP |
| UPC | 0 |
| MPN | LR10G-200 |
| Brand | NetAlly |
