Name: Fluke Networks TwistGuard TL175 Test Lead
SKU: IMS02NL80

Twist. Test. Stay Safe.

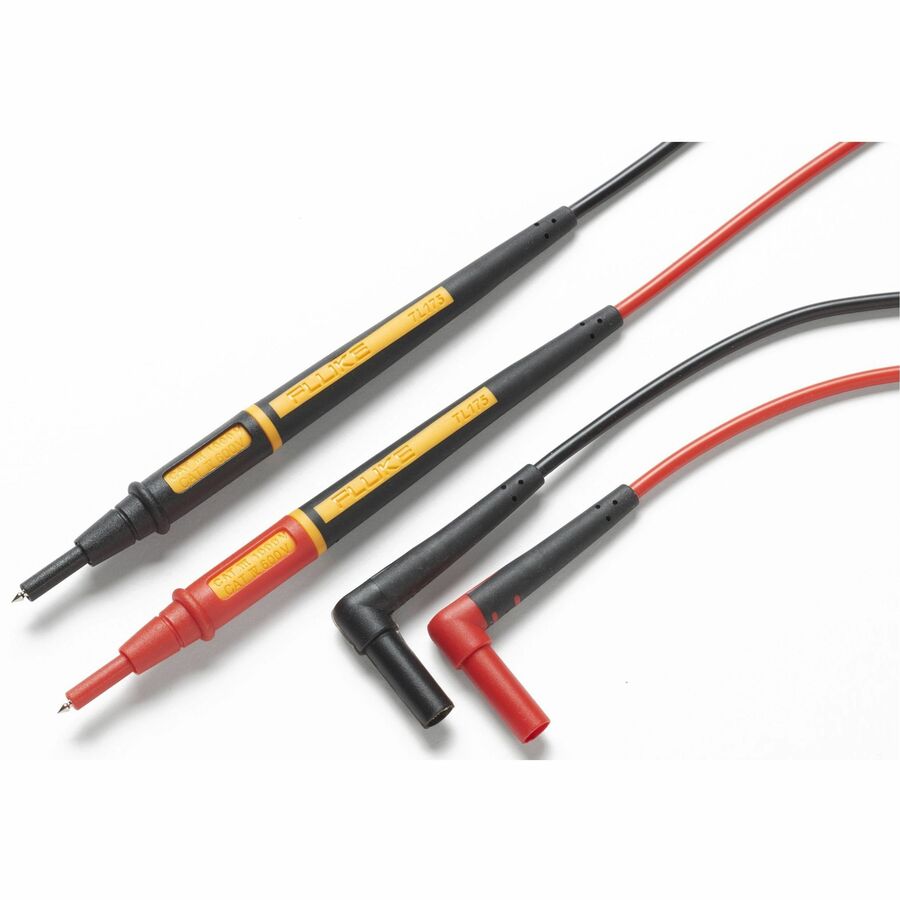

The Fluke TL175 TwistGuard™ Test Leads offer adjustable length test tips for use in different measurement environments. By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 in to 0.16 in).

” They work well, are very durable, and add a whole new level to safety…along with the ability to twist them to expose the entire probe for more traditional feel while testing “- S.C., verified customer

Patented TwistGuard™ extendable tip

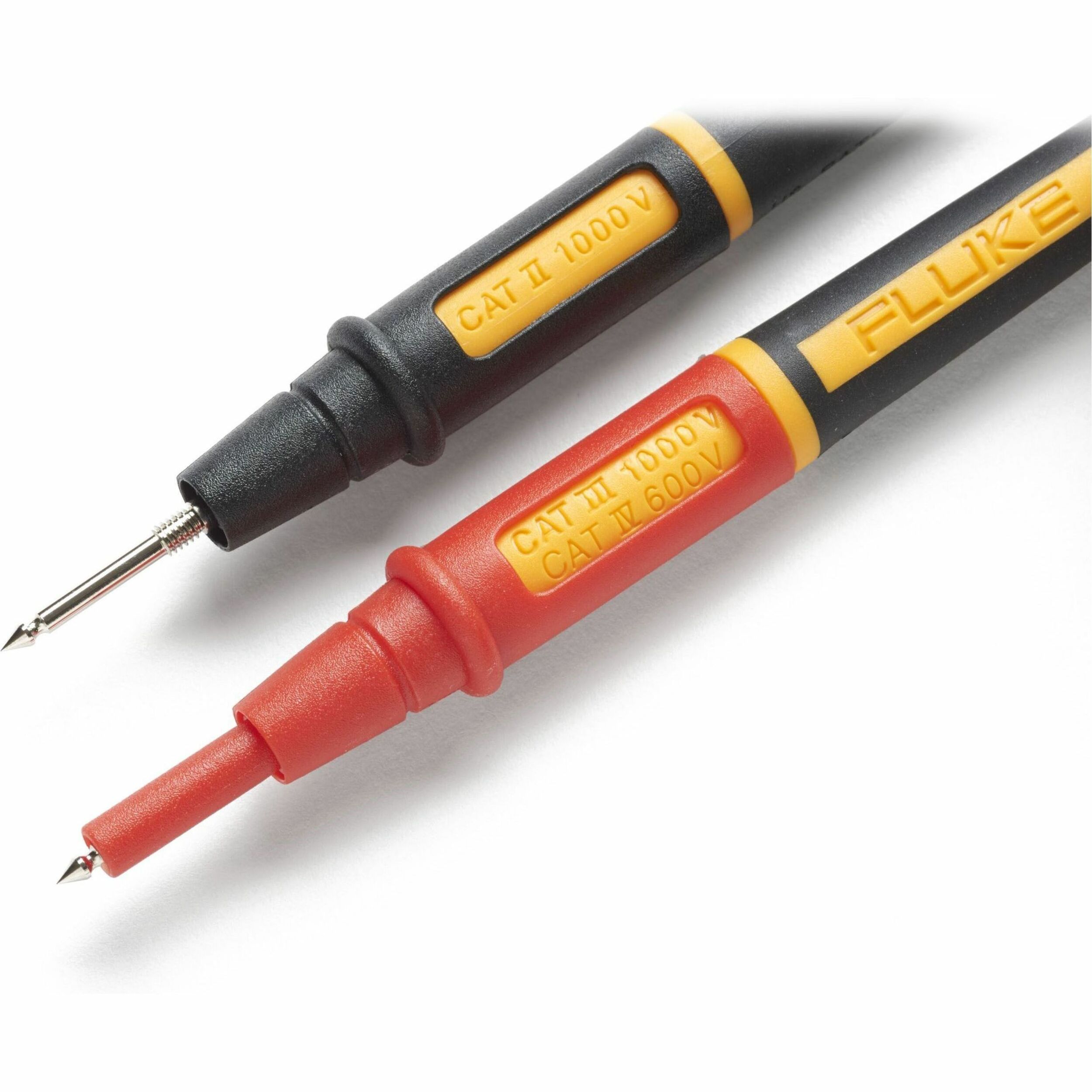

The adjustable tip shroud meets new electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements. The correct category rating for the tip exposure being used is always visible on the test leads. This makes the TL175 test leads suitable for use in many environments:

CAT II 1000 V
CAT III 1000 V
CAT IV 600 V

Safety inside and out

WearGuard™ lead wire wear indicator makes it easier to see insulation wear and tear. If the inner, white insulation layer shows through the outer, black layer, damage is indicated, and the leads must be replaced. The silicone insulation withstands high temperatures and remains flexible in cold temperatures. While the universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs.

Patented TwistGuard™ reduces tip exposure, and the New WearGuard™ silicone leads indicate when to replace leads

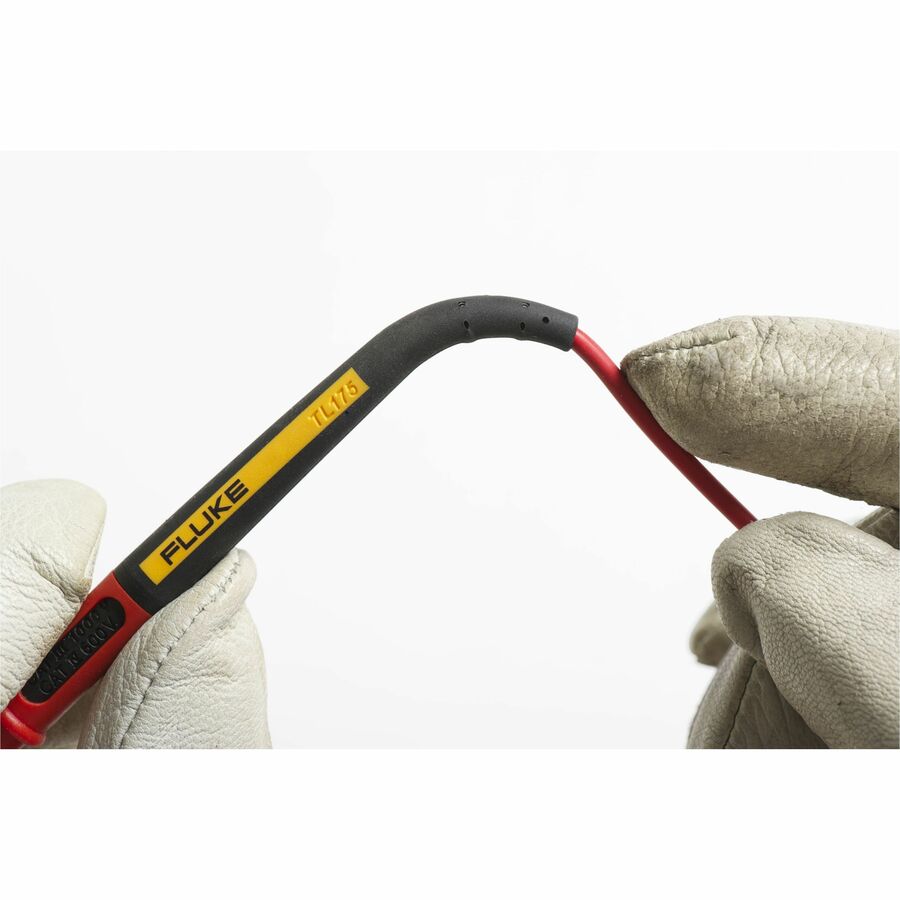

Heavy-duty strain relief tested to 30,000+ bends without failure
Rated CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A
see compatible products below

Additional information

Manufacturer	Fluke Networks
Manufacturer Website Addres	http://www.flukenetworks.com
Product Material	Silicone
Product Model	TL175
Compatibility	<p>Compatible products: Fluke TL175 TwistGuard™ Test Leads <b>Clamp meters (11)</b>Fluke 323 True RMS Clamp Meter</p><p>Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance</p><p>Fluke 325 True RMS Clamp Meter</p><p>Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter</p><p>Fluke 373 True-RMS AC Clamp Meter</p><p>Fluke 376 FC True-RMS Clamp Meter with iFlex</p><p>Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex®</p><p>Fluke 902 True RMS HVAC Clamp Meter</p><p>Fluke 902 FC True-RMS HVAC Clamp Meter</p><p>Fluke a3000 FC Wireless AC Current Clamp Kit</p><p>Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit</p><p><b>Digital multimeters (28)</b>Fluke 787 ProcessMeter Digital Multimeter</p><p>Fluke 110 True-rms Digital Multimeter</p><p>Fluke 179 IMSK Industrial Multimeter Service Kit</p><p>Fluke 87V MAX True-rms Digital Multimeter</p><p>Fluke 87V MAX E2 Industrial Electrician Combo Kit</p><p>Fluke 113 Digital Multimeter</p><p>Fluke 114 Electrical Multimeter</p><p>Fluke 115 Field Technicians Digital Multimeter</p><p>Fluke 116 Digital HVAC Multimeter</p><p>Fluke 117 Electrician's Multimeter with Non-Contact Voltage</p><p>Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp Meter</p><p>Fluke 175 True-RMS Digital Multimeter</p><p>Fluke 177 True-RMS Digital Multimeter</p><p>Fluke 179 True-RMS Digital Multimeter</p><p>Fluke 233 Remote Display Digital Multimeter</p><p>Fluke 27 II Rugged Digital Multimeter</p><p>Fluke 279 FC True-rms Thermal Multimeter</p><p>Fluke 28 II Rugged Digital Multimeter</p><p>Fluke 287 True-RMS Electronics Logging Multimeter</p><p>Fluke 289 True-RMS Data Logging Multimeter</p><p>Fluke 3000 FC Series Wireless Multimeter</p><p>Fluke 3000 FC General Maintenance System</p><p>Fluke 3000 FC HVAC System</p><p>Fluke 3000 FC Industrial System</p><p>Fluke 77 IV Digital Multimeter</p><p>Fluke 87V Industrial Multimeter</p><p>Fluke 88V Deluxe Automotive Multimeter</p><p>Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter</p><p><b>Insulation testers (4)</b>Fluke 1503 Insulation Resistance Meter</p><p>Fluke 1507 Insulation Resistance Tester</p><p>Fluke 1577 Insulation Multimeter</p><p>Fluke 1587 FC Insulation Multimeter</p><p><b>Multifunction calibrators (2)</b>Fluke 725 Multifunction Process Calibrator</p><p>Fluke 726 Precision Multifunction Calibrators</p><p><b>Portable oscilloscopes (14)</b>Fluke 190-062 ScopeMeter® Test Tool</p><p>Fluke 190-062/S ScopeMeter® Test Tool</p><p>Fluke 190-102 ScopeMeter® Test Tool</p><p>Fluke 190-102/S ScopeMeter® Test Tool</p><p>Fluke 190-104 ScopeMeter® Test Tool</p><p>Fluke 190-202 ScopeMeter® Test Tool</p><p>Fluke 190-202/S ScopeMeter® Test Tool</p><p>Fluke 190-204 ScopeMeter® Test Tool</p><p>Fluke ScopeMeter 190-204/S Oscilloscope</p><p>Fluke 190-504 500MHz ScopeMeter® Test Tool</p><p>Fluke ScopeMeter 190-504/S Portable Oscilloscope</p><p>Fluke 190 Series III ScopeMeter® Test Tools</p><p>Fluke MDA-510 and MDA-550 Motor Drive Analyzers</p><p>Fluke MDA-550 Series III Motor Drive Analyzer</p><p><b>Power quality analyzers (1)</b>Fluke 345 Power Quality Clamp Meter – Electronic Power Meter</p><p><b>Pressure calibrators (2)</b>Fluke 712 RTD Process Calibrator</p><p>Fluke 717 Pressure Calibrator</p><p><b>Temperature calibrators (2)</b>Fluke 714 Thermocouple Calibrator</p><p>Fluke 724 Temperature Calibrator</p><p><b>mA loop calibrators (7)</b>Fluke 705 Loop Calibrator</p><p>Fluke 707 Current Loop Calibrator with Quick Click Knob</p><p>Fluke 715 Volt/mA Loop Calibrator</p><p>Fluke 772 Milliamp Process Clamp Loop Meter</p><p>Fluke 773 Milliamp Process Clamp Meter</p><p>Fluke 787B ProcessMeter™</p><p>Fluke 789 ProcessMeter™</p>
Product Line	TwistGuard
Country of Origin	Taiwan
Product Type	Test Lead
UPC	0095969521543
MPN	TL175
Brand	Fluke Networks
