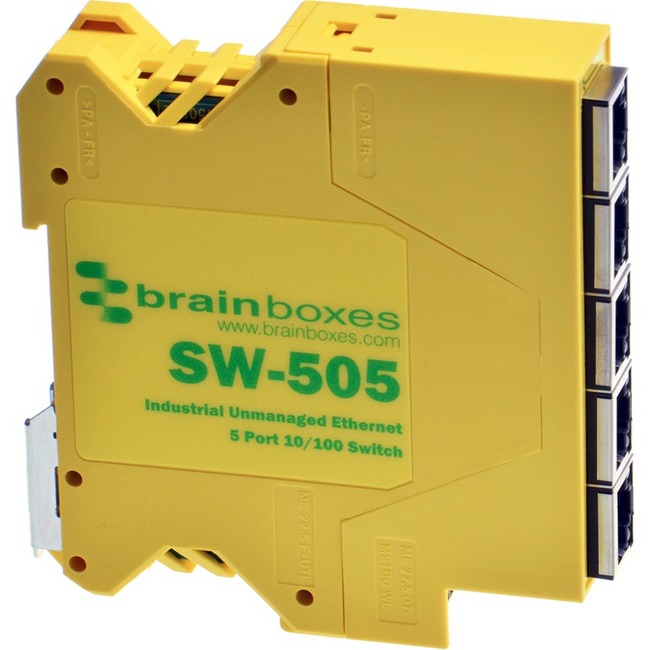

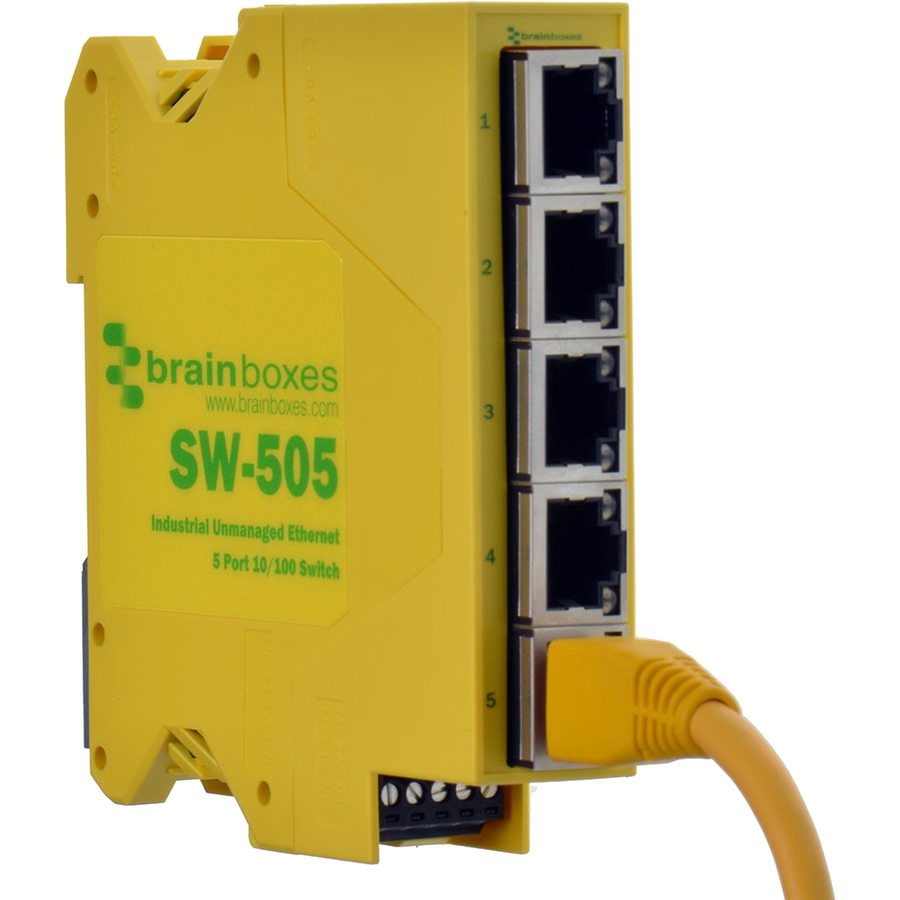

Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
Login to View Prices

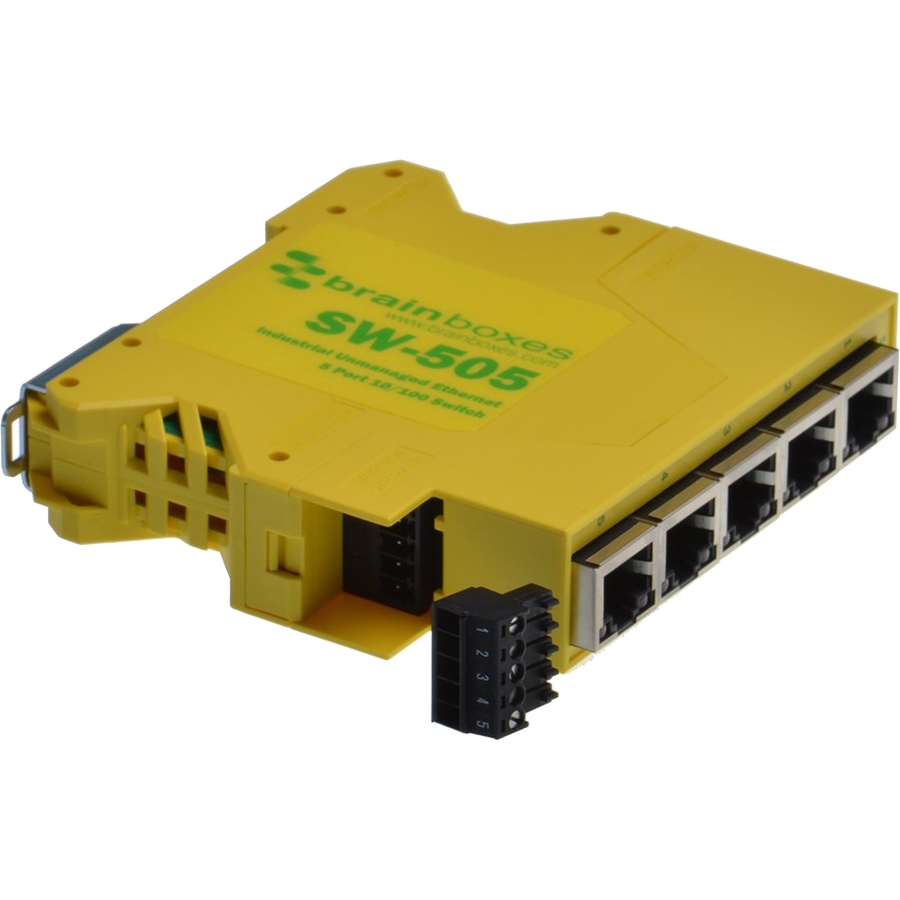

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Small Footprint Case, only 22.5mm wide, 94mm deep
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Redundant dual power inputs: +5V to +30V DC
- 5 Port Compact Ethernet Switch

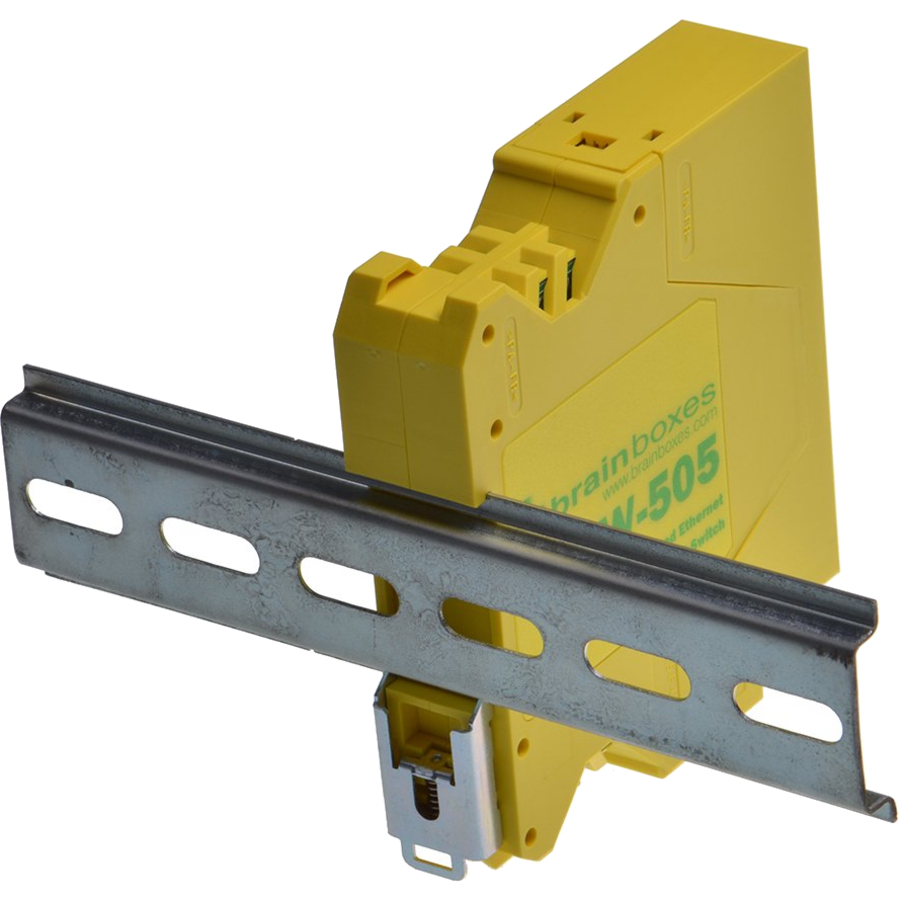

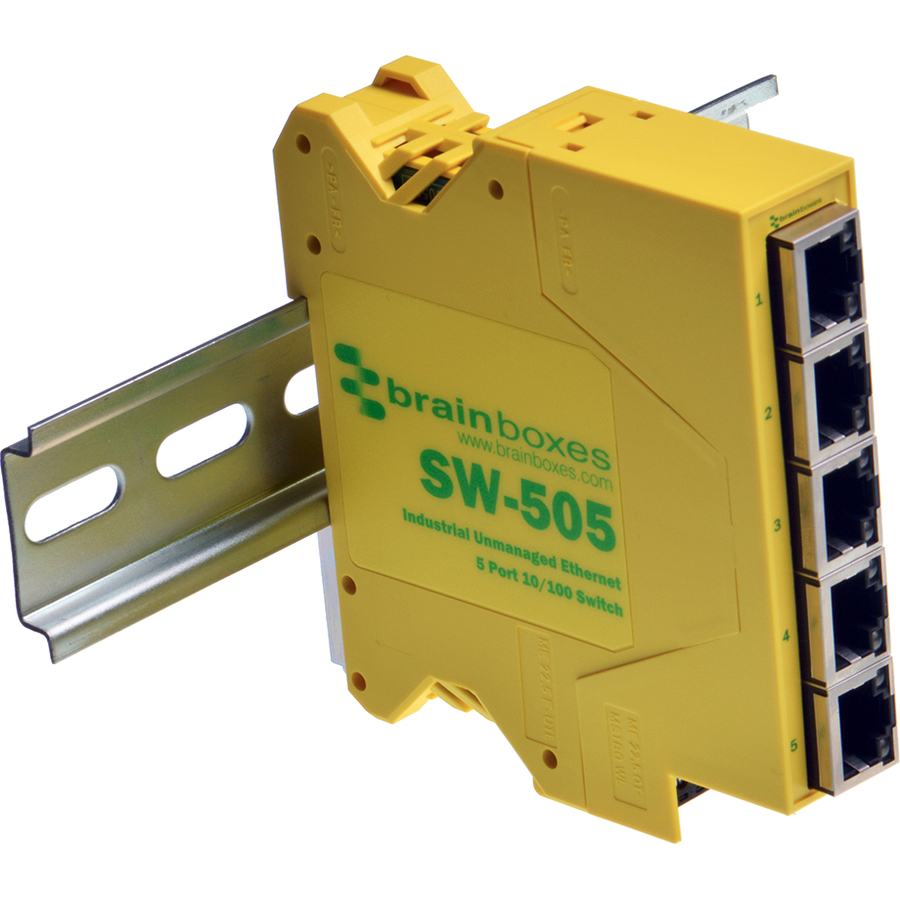

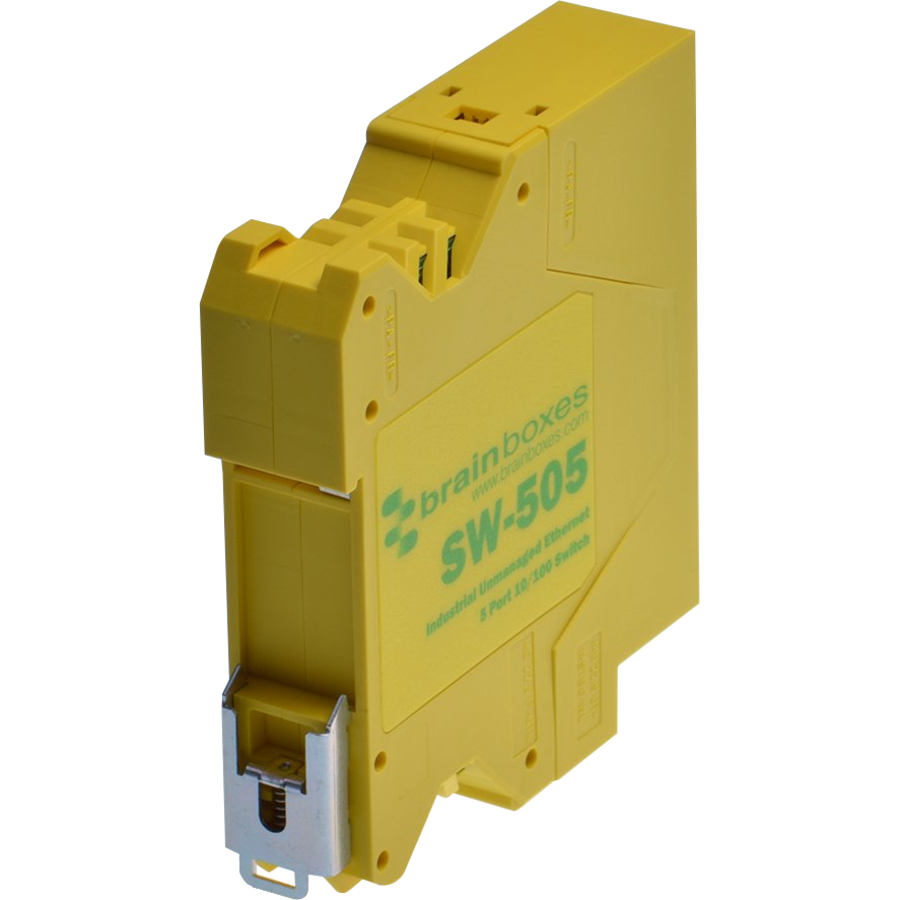

- Integrated DIN Rail Mount with grounding
Additional information
| Weight | 4.0600 lbs |
|---|---|
| Dimensions | 3.90 × 3.70 × 0.90 in |
| Power Source | AC Adapter,USB |
| Network Technology | 10/100Base-TX |
| Total Number of Network Por | 5 |
| Country of Origin | United Kingdom |
| Ethernet Technology | Fast Ethernet |
| Form Factor | Rail-mountable |
| Manufacturer | Brainboxes Limited |
| Manufacturer Website Addres | |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Modular | No |
| Layer Supported | 2 |
| Media Type Supported | Twisted Pair |
| Manageable | No |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Package Contents | <ul> <li>Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable</li> <li>Quick Start Guide</li> </ul> |
| Product Model | SW-505 |
| Limited Warranty | Lifetime |
| Environmentally Friendly | Yes |
| UPC | 0 |
| MPN | SW-505 |
| Brand | Brainboxes |
