Aten Slideaway CL5708 17″ LCD Console 8-Port Combo KVM with Peripheral Sharing Technology-TAA Compliant
Login to View Prices
The CL5708M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console.

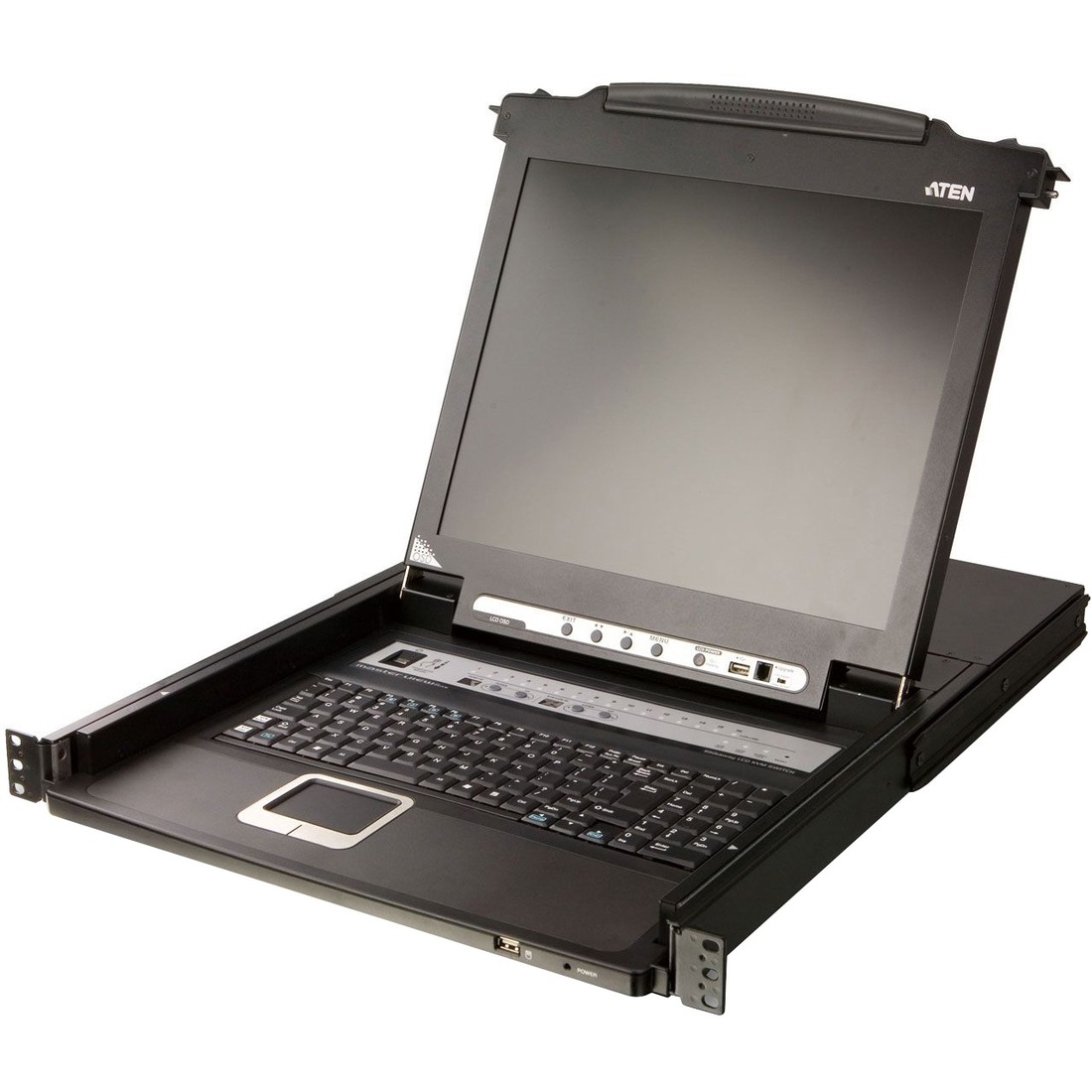

The CL5708M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″ LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
- Supports multimedia USB keyboards for PC, Mac and Sun
- Multiplatform support – Windows, Linux, Mac, and Sun
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- LCD module USB port allows each computer to access USB peripherals

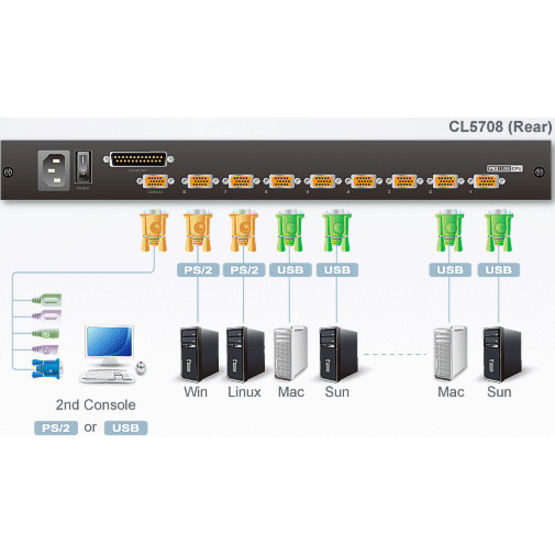

- Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
- Daisy-chain up to 31 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Space saving technology – up to two consoles (one bus) control up to 8 computers
- Available with or without Fingerprint Identification Reader
- Integrated KVM console with 17″ LED-backlit LCD monitor in a Slideaway™ housing

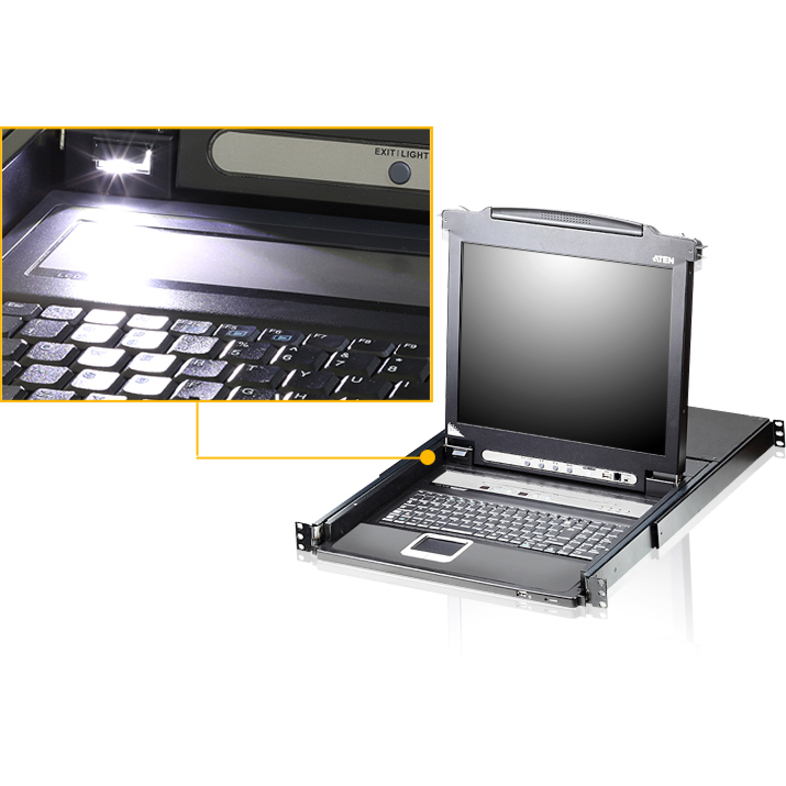

- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Additional information
| Weight | 30.3000 lbs |
|---|---|
| Dimensions | 24.90 × 18.90 × 1.70 in |
| Manufacturer | ATEN Technology, Inc |
| Number of USB Ports | 2 |
| USB | Yes |
| Pointing Device Type | TouchPad |
| Number of Computers Support | 8 |
| Screen Mode | SXGA |
| KVM Switch | Yes |
| Daisy Chain | Yes |
| Display Screen Type | LCD |
| Product Type | LCD Rack Console |
| Device Type | LCD Rack Console |
| Keyboard | Yes |
| Screen Size | 17" |
| Screen Resolution | 1280 x 1024 |
| Package Contents | <ul><li>Slideaway CL5708 17" LCD Console 8-Port Combo KVM with Peripheral Sharing Technology</li><li>2 x Custom KVM Cable Sets (1 x PS/2, 1 x USB KVM cable, 1.8m long)</li><li>1 x 5-in-1 console cable</li><li>1 x Firmware Upgrade Cable</li><li>1 x Power Cord</li><li>1 x Grounding Wire</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li></ul> |
| Manufacturer Website Addres | |
| Product Model | CL5708M |
| Product Line | Slideaway |
| Limited Warranty | 3 Year |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| UPC | 0 |
| MPN | CL5708M |
| Brand | ATEN |
