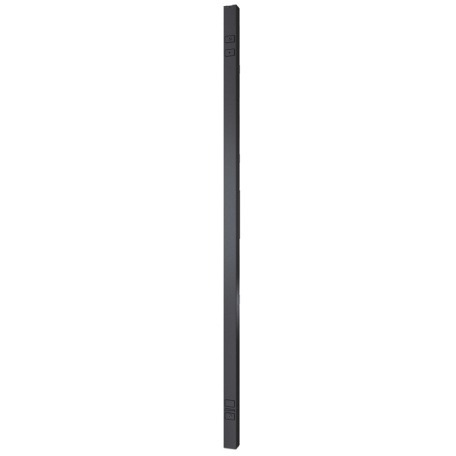

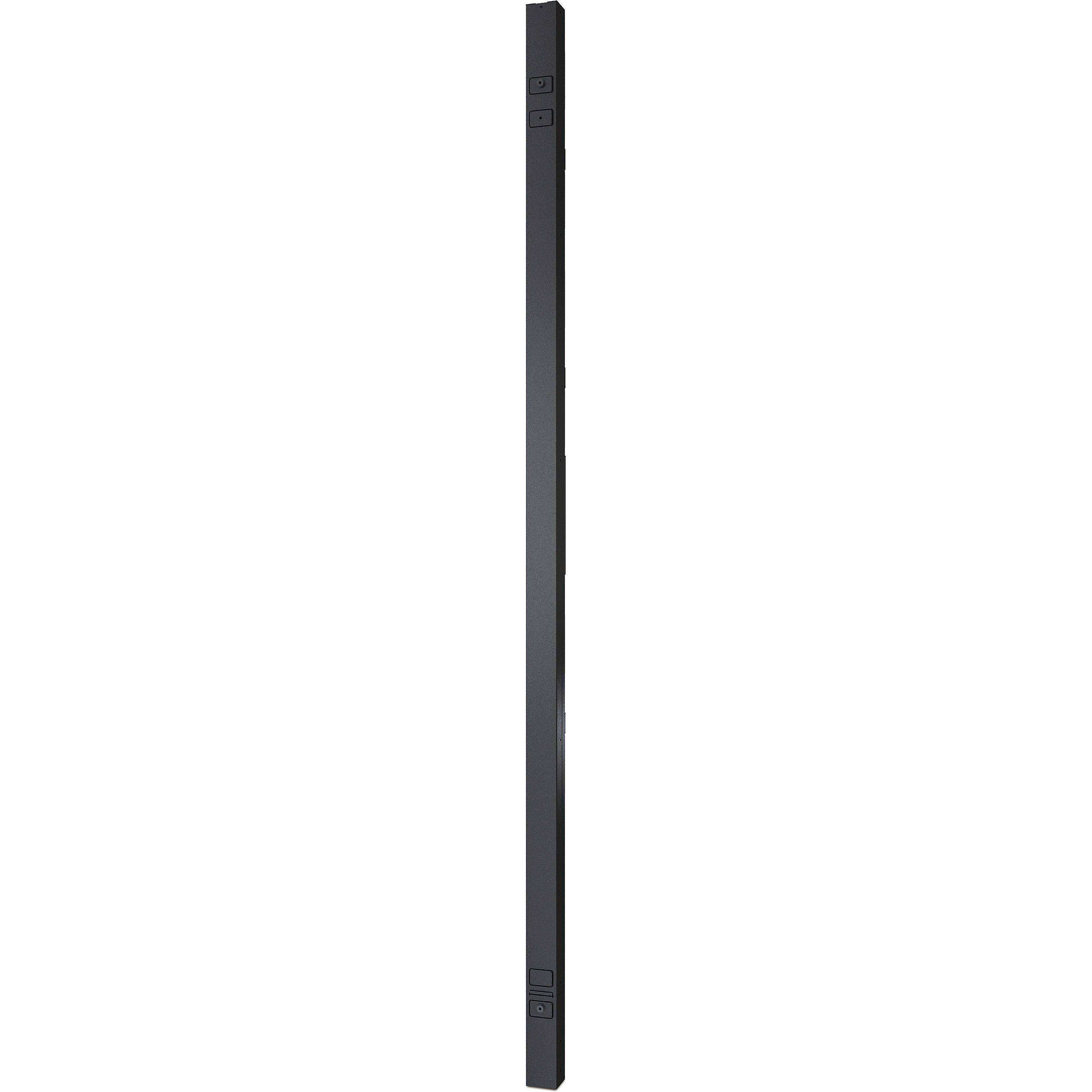

Apc by Schneider Electric Rack Pdu 2g Switched Zerou 30a 100-120v (24) 5-20r
Login to View Prices
APC by Schneider Electric Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R – Switched – NEMA L5-30P – 24 x NEMA 5-20R – 100 V AC – 2880 W – 0U – Horizontal/Vertical – Rack-mountable – Tower
Additional information
| Brand | Schneider Electric SA |
|---|---|
| Product Type | PDU |
| Additional Warranty Informati | 2 years repair or replace |
| Receptacle Type | NEMA 5-20R |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Number Of Cord/Cable | 1 |
| Mercury Free | Yes |
| PDU Type | Switched |
| Mounting Orientation | Horizontal/Vertical |
| Power Rating (VA) | 2880 VA |
| Product Color | Black |
| Receptacle Detail | 24 x NEMA 5-20R |
| Cord Length | 9.84 ft |
| Height | 70.5" |
| Width | 2.2" |
| Depth | 1.8" |
| Certifications & Standards | cUL Listed |
| Rack Height | 0U |
| Brand Name | APC by Schneider Electric |
| Circuit Breaker | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Form Factor | Tower |
| Input Current | 30 A |
| Management | <ul><li>Web</li><li>SNMP</li><li>Telnet</li></ul> |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection |
| Input Voltage | 100 V AC |
| Manufacturer Part Number | AP8932 |
| Manufacturer Website Address | |
| Marketing Information | <p>APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.</p> |
| Packaged Quantity | 1 Each |
| Package Contents | <li>Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R </li><li>Installation guide</li><li>Rack mounting brackets</li><li>Safety guide</li><li>Serial configuration cable</li> |
| Limited Warranty | 2 Year |
| Output Voltage | 100 V AC |
| Weight (Approximate) | 17.31 lb |
