Apc by Schneider Electric Rack Pdu 2g Metered Zerou 172kw 208v (6) C13 & (12) C19
Login to View Prices

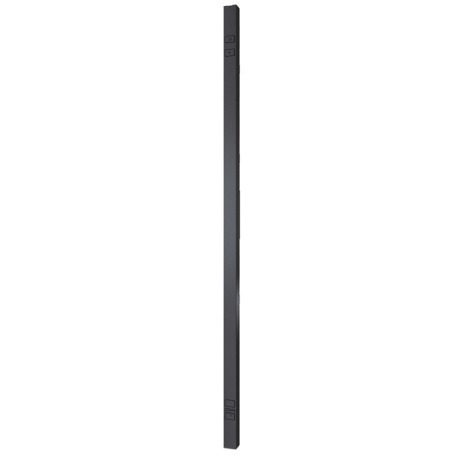

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 – Metered – IEC 60309 60A (3P+PE) – 6 x IEC 60320 C13, 12 x IEC 60320 C19 – 208 V AC – 17.30 kW – 0U – Rack-mountable
Additional information
| Brand | Schneider Electric SA |
|---|---|
| Product Type | PDU |
| Additional Warranty Informati | 2 years repair or replace |
| Receptacle Type | IEC 60320 C19 |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Number Of Cord/Cable | 1 |
| Mercury Free | Yes |
| PDU Type | Metered |
| Power Rating (VA) | 17.30 kVA |
| Product Color | Black |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Cord Length | 6 ft |
| Height | 1972-01-01T06:00:00.000Z |
| Width | 2.2" |
| Depth | 2001-02-01T06:00:00.000Z |
| Certifications & Standards | cUL Listed |
| Rack Height | 0U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60309 60A (3P+PE) |
| Management | <p><b>Protocols:</b></p><ul><li>SNMP</li><li>Telnet</li><li>Web</li></ul> |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 |
| Mount Type | Rack-mountable |
| Product Line | Metered Rack |
| Protection Type | Overload Protection |
| Input Voltage | 208 V AC |
| Manufacturer Part Number | AP8866 |
| Manufacturer Website Address | |
| Marketing Information | <p>APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.</p> <p><a id="gfk-spex-minisite" rel="nofollow" href="javascript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_us/1022985103.html', '_blank', 'height=800, width=780, resizable=yes, scrollbars=yes, toolbar=no, menubar=no, location=no, directories=no, status=no'), return false, ">More from the Manufacturer</a></p> |
| Packaged Quantity | 1 Each |
| Package Contents | <li>Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 </li><li>Installation guide</li><li>Rack mounting brackets</li><li>Safety guide</li><li>Serial configuration cable</li> |
| Limited Warranty | 2 Year |
| Additional Information | <p>Input Connections: IEC 309 60A 3P+PE</p> |
| Output Voltage | 208 V AC |
| Weight (Approximate) | 20.94 lb |
